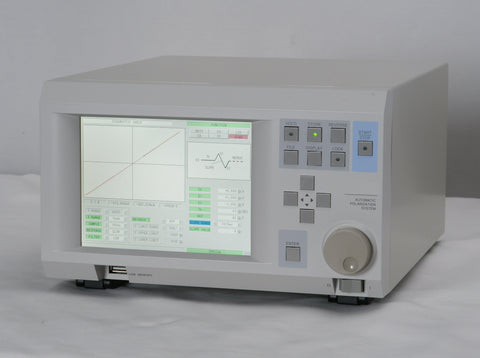

Automatic Polarization System Stand-alone Mode
SKU: MA2009
Automatic Polarization System Stand-alone Mode
MSE Supplies offers various function-specific models applicable to various measurements for battery basic research etc.
This item is a compact and high performance potentiostat / galvanostat which is equipped with a LCD monitor and includes data memory function. It can perform electrochemical measurements of varieties.
- Stand-alone only
- Colorful LCD displays measurement waveform
- Measured data can be saved in USB memory
- Measurement condition can be changed during the measurement
- 7 basic measurement techniques are available:
- Cyclic Voltammetry (CV)
- Linear Sweep Voltammetry (LSV)
- Double Step/ Single Step Chrono-Amperometry (CA)
- Double Step/ Single Step Chrono-Potentiometry (CP)
- Rest Potential Measurement
Made in Japan.
Specifications:
| Potentiostat | |
| Maximum Output Voltage | ±12V |
| Maximum Current | ±100mA |
| Current Ranges | 100mA, 10mA, 1mA, 100µA, 10µA, 1µA, 100nA, 10nA, AUTO (8 ranges and auto range) |
| Control potential | 0-±6V (setting resolution : 1mV) |
| Function generator | |
| Slope sweep rate | 10V/sec - 1mV/min (7 ranges) |
| Cycle number of CV | 1 - 99 cycles and continuous |
| Step time setting range | 1ms - 999.9min (sec/min: two ranges) |
| Data measurement | |
| Potential measurement accuracy | ±0.2 % of reading ±1 mV |
| Current measurement accuracy | 100mA -10µA range : ±0.5% of reading ±0.2% of Full Scale Range 1µA-10nA range : ±2% of reading ±2% of Full Scale Range |
| Data sampling interval | 20µS-1min (8 ranges and Auto range) |
| Monitor / record | |
| Measurement monitor display | 6.5 inch color LCD |
| Memory output | USB memory |
| Others | |
| Dimentions(W×H×D) | 260×165×313mm |
| Weight | 5.0kg |
| Power | AC110V 0.6A |
