Accuris SmartReader 96 Microplate Reader and Microplate Washer Bundle
Accuris SmartReader™ 96 Microplate Reader and Microplate Washer Bundle
Microplate Reader

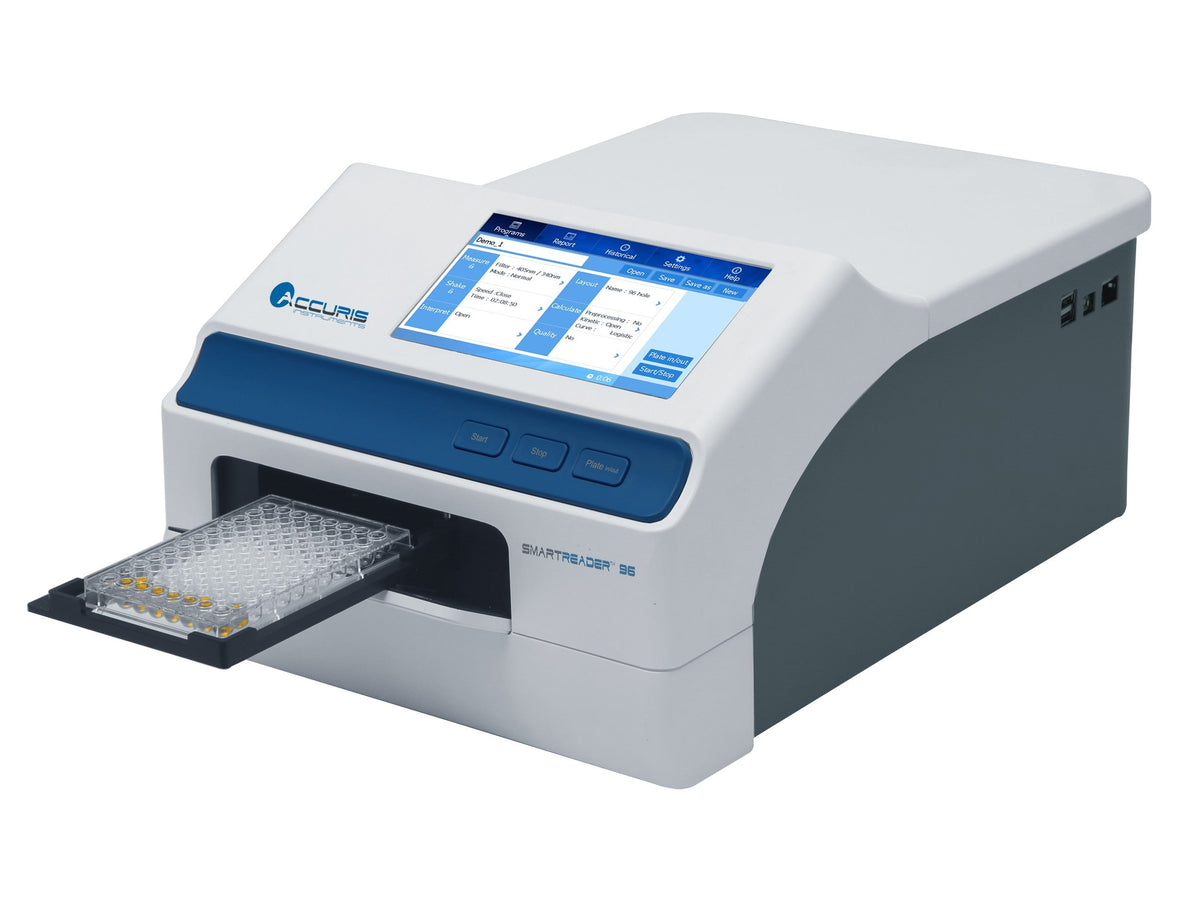

The Accuris SmartReader 96, models MR9600 and MR9600-T (Temp Control Incubation) are welcome additions to any lab that is routinely measuring concentration or absorbance in 96 well plates. The 7 inch touch screen, intuitive software and graphical interface make these instruments easy to use as a standalone reader (a separate computer and additional software is not required, but the software for PC is optional).
- Intuitive, 7 inch color touch screen control panel
- Filter based system with wavelength range from 340 to 750nm
- Operates as a stand alone system, with USB flash drive drive for data transfer
- Absorbance range: 0.0 to 4.000 Abs
- 8 channel vertical optical path, with zero dispersion
- Integrated, multi-speed plate shaker
- MR9600-T features temperature controlled plate incubation
Microplate Washer (Manifolds not included)
Purchase MW960 MicroPlate Washer Accessories Through MSE Supplies Here!

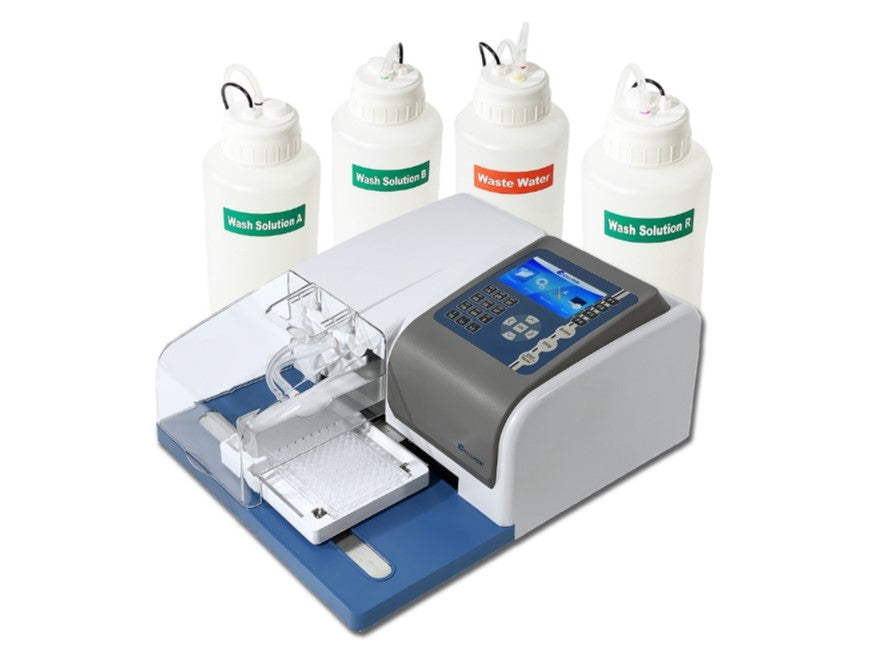

The Accuris SmartWasher™ 96 automates the process of ELISA plate washing so assays can be prepared quickly, accurately, and with confidence for absorbance reading. It’s the perfect companion to our popular SmartReader™ 96 microplate reader.
- Precision control of aspiration needle position
- Accurate to 0.1mm
- Minimal residual liquid, ≤1μl/well
- Auto rinse function eliminates cross contamination
- Up to 100 wash protocols can be customized and stored
- Liquid level sensors in wash and waste bottles
- Wash protocols can be transferred via flash drive
Research requires flexibility – the SmartWasher™ 96 provides it. Full plates, partial plates, and strips with U, V, C, or flat bottoms are accepted by this fully automated washer. Multiple aspiration point settings allow for minimal residual liquid in the wells after aspiration. All parameters, including dispense volume, suction time, soak and shake cycles, and shaking speed are easily programmed using the large 4.3” LCD display and keypad. Up to 100 wash protocols can be stored on board the SmartWasher™ 96 and recalled when needed, or transferred between machines with a flash drive.
The washer comes equipped with 2 wash bottles, 1 rinse bottle and a waste bottle. All have sensors that alert the user when the solutions are low, or in the case of the waste bottle, when it needs to be emptied. An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs.
8- and 12-channel manifolds are available separately to accommodate plates in either orientation. A transparent, acrylic shield surrounds the wash area, allowing for visualization of the plate. Should a spill or leak occur, the beveled spill well ensures that the liquid is extracted immediately to avoid cross-contamination. The SmartWasher™ 96 is the perfect partner for the SmartReader™ 96 Microplate Absorbance Reader as well as other popular readers. 8- and 12-channel manifolds, purchased separately, are available to accommodate different plate orientations.
Specifications for Microplate Reader
| Control and Display |
7-inch touch screen (800 x 480 pixels) |
| Light Source | Quartz-halogen lamp 6V/10W |
| Wavelength range | 340-750nm (405, 450, 492, and 630 nm filters included. Others offered and optional) |
| Half-Bandwidth of filters | 3~9nm |
| Readout Range | 0~4.000 Abs |
| Linearity (405nm) |
0~2.000 Abs <+1% 0~4.000 Abs <+2% |
| Precision |
CV</= 0.2% (0-3) Abs CV</= 01.0% (3-4) Abs |
| Test Speed | <6 sec. for 96 well plate |
| Incubator (MR9600-T) | Temp control from ambient +5°C to 50°C |
| Shaking | 3 modes: slow (3.5Hz), medium (4.7Hz), fast (7.0Hz) |
| User Interface | Integrated software, touch screen control |
| Storage | 200 programs, 100,000 test records |
| Ports | USB ports for PC, printer, mouse and flash drive |
| Dimensions | 11.6 x 17 x 8.75 inches |
| Weight | 22 Lbs. |
| Warranty | 2 years. |
Specifications for Microplate Washer
| Model | Accuris SmartWasher 96 |
| Control and Display | 4.3-inch LCD display |
| Wash Heads | 8 channel or 12 channel |
| Wash Modes | 1 point, 2 point, or 3 point aspiration |
| Compatible Microplates | 96 wells, standard SBS dimensions |
| Residual Liquid Volume | ≤ 1ul (each well) |
| Dispensing Volume Range | 50ul – 2000 ul |
| Wash Cycles | 1 ~ 99 cycles |
| Program Storage Capacity | 100 programs |
| Rinse Function Time Range | 00:00 ~ 03:59 (mm : ss) |
| Soak and Shaking Time Range | 00:00 ~ 99:00 (mm : ss) |
| Wash Bottle Level Warning | Yes, sensors included in wash and rinse bottles |
| Wash Solution Channels | 3 bottles |
| Waste Bottle Level Warning | Yes; sensors detect when waste bottle is full |
| Waste Aspiration | Yes |
| Dimensions (WxDxH) | 345 x 460 x 200 mm / 13.5 x 18 x 8.5 inches |
| Weight | 11.5 kg / 25.3 Lbs |
MSE supplies is an authorized distributor of Accuris products and accessories.
