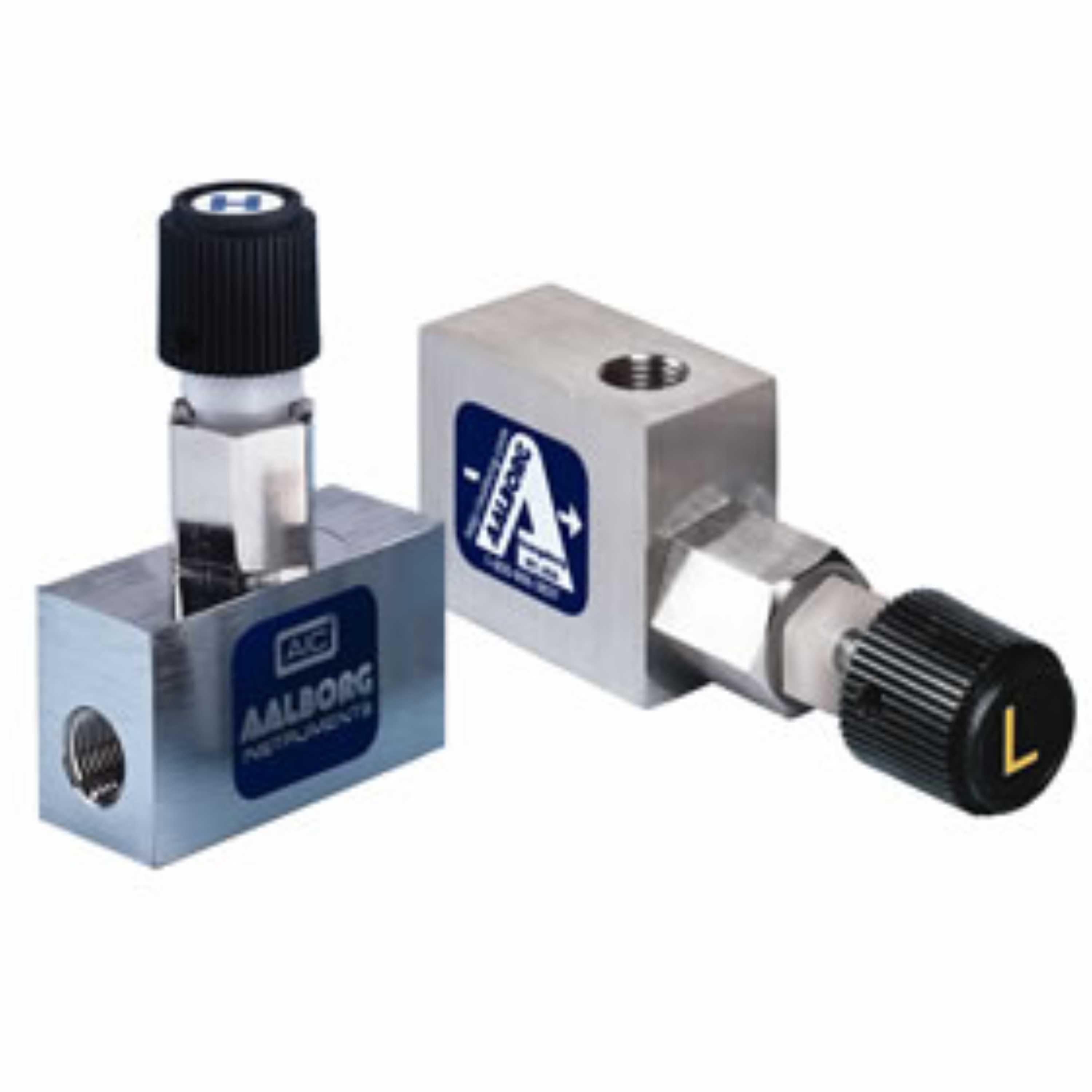

Aalborg Needle Valve Low Stainless Steel Viton-A Seals 180 Degree Stainless Steel 1/8" FNPT
Couldn't load pickup availability
Still have questions? Ask our experts!
Aalborg Needle Valve Low Stainless Steel Viton-A Seals 180 Degree Stainless Steel 1/8" FNPT
Overview
Barstock Utility Valves CV™
Description
VB barstock valves
Designed for controlling a broad range of flow rates of liquids and gases, CV™ Utility valves are available in three conveniently overlapping orifice-needle sizes. These versatile, rugged and reliable, valves are suitable for laboratory instrumentation, bench top or OEM flow control purposes.
Valves are offered in straight (T) and 90 degree (L) flow patterns. All valves are supplied with 1/8” FNPT inlet and outlet ports.
Valve cartridges are also interchangeable with built-in valves of Aalborg’s series of P, T, S, and G flow meter product line. The valve body is precision machined chrome plated brass or type 316 stainless steel.
Included Components:
- VCL-SV-2A: Needle Valve Low Stainless Steel Viton-A Seals 180 Degree Stainless Steel 1/8" FNPT
Features:
- Bubble tight shutoff
- Straight (180°) or 90° flow patterns
- Available in brass or 316 stainless steel
- Up to 60 SLPM (air) or 3.5 LPM (water)
Specifications
| Maximum Operating Pressure | 500 psig (3792 kPa) |
| Maximum Operating Temperature | 180°F (82°C) - brass valves; 250°F (121°C) - 316 stainless steel valves |
Materials of Construction
- Body Chrome plated brass or 316 stainless steel
- O-rings PTFE and buna-n standard with brass valves; PTFE and viton® standard with 316 stainless steel valves; optional viton®, PTFE/kalrez®, EPR
- Connections 1/8 inch female NPT
- Viton® and Kalrez® are registered trademarks of dupont dow elastomers
