2 mm Dia. Titanium High-Pressure Working Disk Electrode- PEEK body 6/75mm

2 mm Dia. Titanium High-Pressure Working Disk Electrode- PEEK body 6/75mm

Buy Redox.me products from MSE Supplies at the best value.

Introduction

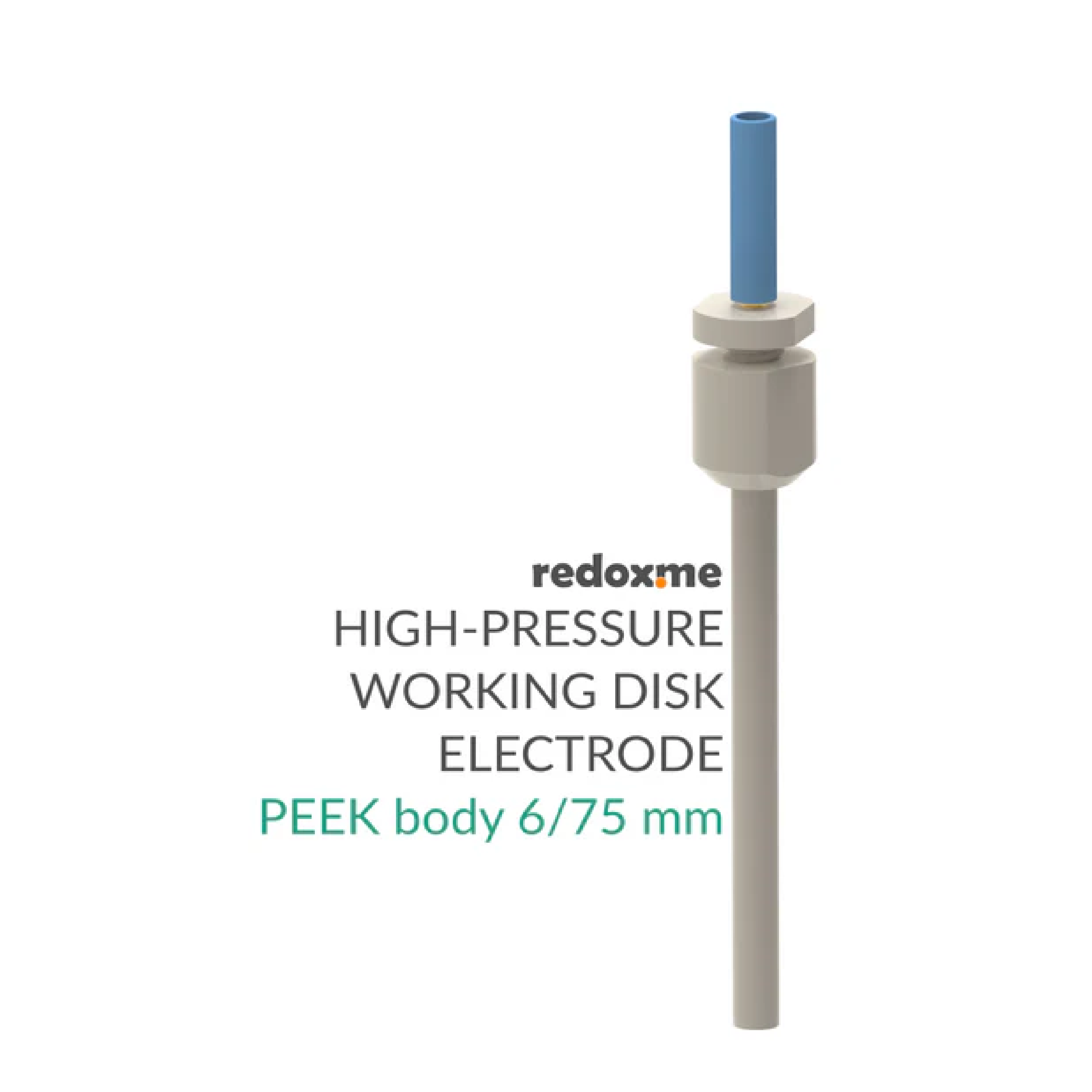

This is a high-pressure standard working electrode in which a disk of electrode material is embedded into the PEEK body by a compressed PTFE/PEEK sleeve. It well fits aqueous and organic solvent electrolyte requirements.

Application Note

The high-pressure disk electrode is installed in the high-pressure cell lid to be immersed in the ion-conducting solution as a working electrode. An electric current is passed between the working electrode and the counter electrode for a certain amount of time. The high-pressure electrodes should be installed in the high-pressure cell using Swagelok electrode fitting 6 mm OD. After the experiment, the electrode should be washed several times with ethanol or isopropanol. If the disk electrode was used as a current collector with other electrode material, or when there are visible traces of material absorption, it should be polished down to the mirror surface after the experiment is completed.

For maintenance, please use our electrode polishing kit.

Specification

Product Includes

1x high-pressure working disk electrode
1x glass tube

MSE offers a range of electrodes. Please contact us for more information.
