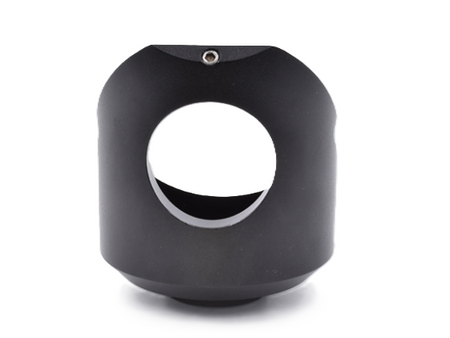

MSE PRO™ 45° Lens/Mirror Holders, Ø2"
MSE Supplies offers 45° Lens/Mirror Holders, expertly designed to make the light path turn 90º. The minimum thickness of mounting optics should be thicker than 2mm. In addition, the holders are equipped with bosses with diameter of 2". Users need to use these holders to fit with other opto-mechanical components with 2" interface.
| Optic Size | 50.8mm (2") |
| Adjustable Number of Axis | None |
| Size of A | 6mm |
| Size of B | 65mm |
| Size of C | 5mm |
| Size of D | 57mm |
| Size of d | 23mm |
| Size of E | 28mm |
| Size of F | 50.8mm |
| Size of H | 39mm |
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
