Heidolph Platform Shaker- Orbital Unimax Package

Order upon Request
SKU: 036130520
$ 8,208.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

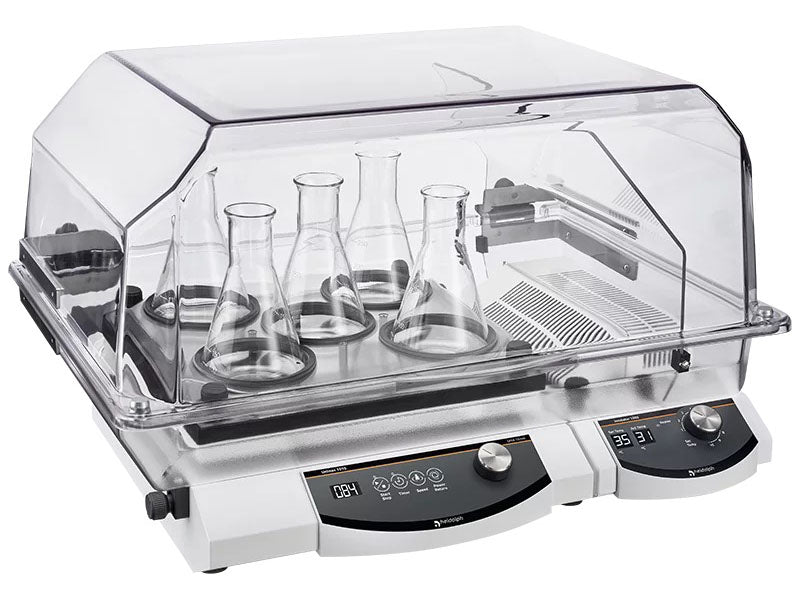

Heidolph Platform Shaker- Orbital Unimax Package

This package includes:

  • One orbital platform shaker Unimax 1010
  • One heating module and
  • One high incubator hood

    This shaker can be integrated into the modular incubation system, and it is therefore ideal for all temperature-controlled shaking tasks. By means of the integrated RS 232 interface and in conjunction with the software Hei-PROCESS, processes can be realized semi-automatically. In addition, it is possible to operate several shakers of this size in one climate chamber.

    With a speed of 30-500 rpm and an orbit of 10 mm, samples are optimally kept in motion. Time-dependent applications can be performed without any problems by using a timer (max. 99 h 99 min 99 S). In addition, the automatic restart (e.g. after a power failures) can be regulated by means of a button.

    Product Parameters

    Overheat protection Self-resetting
    Permissible ambient conditions -
    Weight kg
    Protection class (EN 60529) IP 40
    Timer Yes (max. 99 h 99 min 99 s)
    Rotation speed range 30 - 500 rpm
    Power input 50
    Dimensions (w/d/h) 320 x 125 x 375 mm
    Max. Load 5 kg
    Operating Mode Timer function / continuous operation
    Rotation speed setting -
    Orbit / Stroke 10 mm
    Platform size -
    Accessories included -
    Angle -
    Motion Orbital
    Ambient temperature range (operation) 5 °C – 31 °C up to 80 % rel. humidity; 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly)
    Ambient temperature range (storage) 5 °C – 31 °C up to 80 % rel. humidity; 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly)
    Interfaces RS 232
    Usable area 290 x 258 mm
    Installation altitude 2,000 m above sea level
