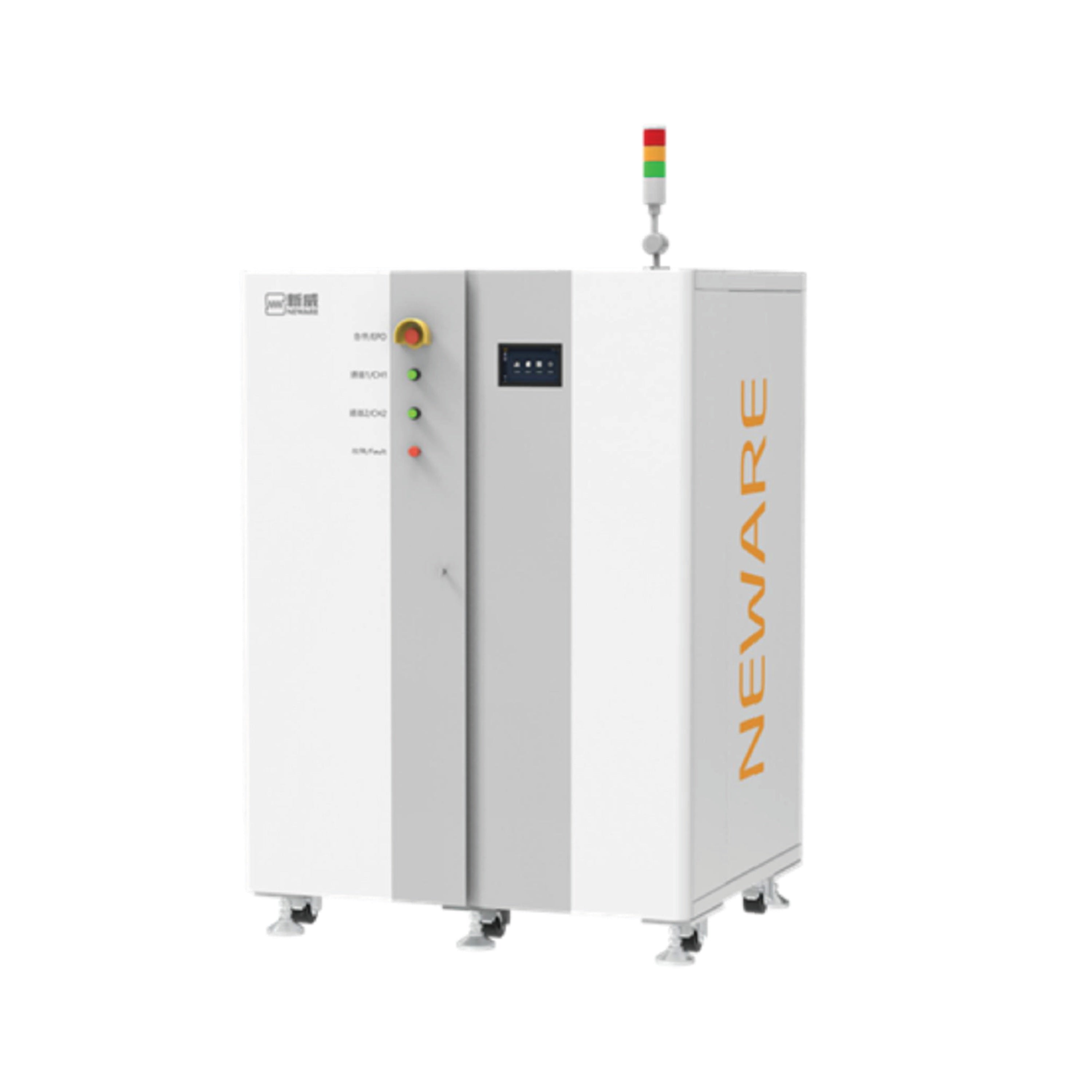

Neware CE-6002n-500V200A-IG, 500V200A Battery Pack Testing Equipment, 2 Channels
Introduction
The Neware CE-6002n-500V200A-IG, 500V200A Battery Pack Testing Equipment, 2 Channels is a high-performance battery pack testing system designed for charge/discharge cycling, simulation testing, pulse testing, and DCIR analysis. With 2 independent channels, up to 500V / 200A per channel, and IGBT-based power control, it is ideal for battery pack research, performance validation, and advanced high-voltage testing applications.
Built with four-wire sampling, TCP/IP communication, and centralized MySQL data management, this system provides accurate control, stable operation, and flexible integration for laboratory and production environments. The equipment also supports optional AUX channels for temperature and voltage monitoring, as well as integration with environmental chambers, water chillers, and pressure fixtures.
Key Features
- 2 independent testing channels
- Up to 500V / 200A per channel
- IGBT power control module
- Voltage accuracy of ±0.02% FS
- Current accuracy of 0.05% FS
- Single-channel output power up to 100 kW
- Whole-machine output power up to 200 kW
- Four-wire connection for accurate voltage and current sampling
- Supports charge/discharge, simulation, pulse, and DCIR testing
- Minimum pulse time of 100 ms
- Recording frequency up to 100 Hz
- TCP/IP communication and MySQL database support
- Optional CAN, RS485, and BMS communication
- Supports third-party integration with environmental chambers, water chillers, and pressure fixtures
Specifications
| Parameter | Specification |
|---|---|
| Model | CE-6002n-500V200A-IG |
| Channels Quantity | 2 |
| Channel Parallel Connection | Supports max. 4 channels parallel mode |
| Input Power Supply | 3PH-AC380V, 60Hz |
| Power Factor | ≥99% (full load) |
| THDi | ≤5% (full load) |
| Input Power | 1 cabinet, each cabinet 222.2 kW |
| Input Current | 1 cabinet, each cabinet 337.6 A / single |
| Overall System Efficiency (Max) | 94% |
| Noise | ≤75 dB |
| Equipment Size (W × D × H) | 1 cabinet, each cabinet 1350 × 1250 × 2000 mm |
| Weight | 1 cabinet, each cabinet 1500 kg |
| Power Control Module Type | IGBT |
| Input Power Wiring Method | Three-phase-four wire system |
| Power Input Protection | Anti-surge, anti-islanding, over-under-frequency, over-under-voltage, open-phase protection |
| Ingress Protection | IP20 |
| Voltage and Current Sampling | Four-wire connection (same port for charging and discharging) |
| Voltage Output Range | Charge: 0V–500V; Discharge: 10V–500V |
| Minimum Discharge Voltage | 10V |
| Voltage Accuracy | ±0.02% of FS |
| Voltage Resolution | 24 bit |
| Current Output Range | 1A–200A |
| Current Accuracy | 0.05% of FS |
| CV Cut-off Current | 0.05% of FS (each independent range) |
| Current Resolution | 24 bit |
| Single Channel Output Power | 100 kW |
| Whole Machine Output Power | 200 kW |
| Current Response Time | ≤5 ms |
| Current Conversion Time | ≤10 ms |
| Minimum Step Time | 0.1 s |
| Input Impedance | ≥1 MΩ |
| Charge/Discharge Modes | CCC&CCD, CVC&CVD, CC-CVC&CC-CVD, CPC&CPD, CP-CVC&CP-CVD, CV-CRD, CRD |
| Cut-off Condition | Voltage, Current, Δtime, Capacity, -ΔV |
| Simulation Modes | Current, Power |
| Simulation Switch | Supports continuous switching between charge and discharge |
| Simulation Cut-off Condition | Time, step line |
| Steps File Lines | 1,000,000 |
| Pulse Charge/Discharge Modes | Current, Power |
| Minimum Pulse | 100 ms |
| Pulse Counts | Up to 32 |
| Charge and Discharge Switch | Supported |
| Pulse Cut-off Condition | Voltage, ΔTime |
| DCIR | DCIR by calculation |
| Software Protection | Voltage lower/upper limit, current lower/upper limit, delay time, etc |
| Hardware Protection | Anti-reverse connection, over-voltage, over-current, over-temperature |
| Step Setting Method | Form editing |
| Recording Frequency | 100 Hz (10 Hz when two AUX channels allocate under one main channel) |
| Database | MySQL database |
| Data Output Mode | Excel, Txt |
| Curve Type | Templates available, customization supported |
| Loop Test Range | 1–65535 |
| Number of Steps in a Single Loop | ≤255 |
| Loop Nesting | ≤10 |
| Host Computer Communication Mode | Based on TCP/IP protocol |
| Communication Interface | Ethernet |
| Lower Computer Communication Baud Rate | 1M bandwidth |
| Host Computer Communication Baud Rate | 10M–100M adaptive |
| Networking Mode | Local area network through switches and routers |
| Communication Expansion (Optional) | CAN, RS485, BMS communication with DBC; supports chamber, water chiller, pressure fixture integration |
| Optional Temperature Aux Range | Thermocouple: -200°C to 260°C |
| Optional Temperature Accuracy | ±1°C |
| Optional Temperature Resolution | 0.1°C |
| Optional Voltage Aux Range | 0V–5V |
| Optional Voltage Accuracy | ±0.05% of FS |
| Optional Voltage Resolution | 0.1 mV |
| Working Temperature | -10°C to 40°C |
| Storage Temperature | -20°C to 50°C |
| Working Humidity | ≤70% RH (no water vapor condensation) |
| Storage Humidity | ≤80% RH (no water vapor condensation) |
| Working Altitude | <2000 m |
Applications
This battery pack testing equipment is suitable for:
- Battery pack charge/discharge testing
- Cycle life evaluation
- Pulse and DCIR testing
- Simulation-based battery testing
- High-voltage battery pack validation
- Integrated testing with environmental chambers, water chillers, or pressure fixtures
Important Notes
- This battery tester does not include a middle machine. If required, the middle machine must be purchased separately. Please order it separately
- The default fixture supplied with this unit is the Ring Connector, and the default channel cable length is 2 meters. The polymer clamp is shown in the image below.
- If you require a different type of clamp, please contact MSE Supplies directly.
MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.
