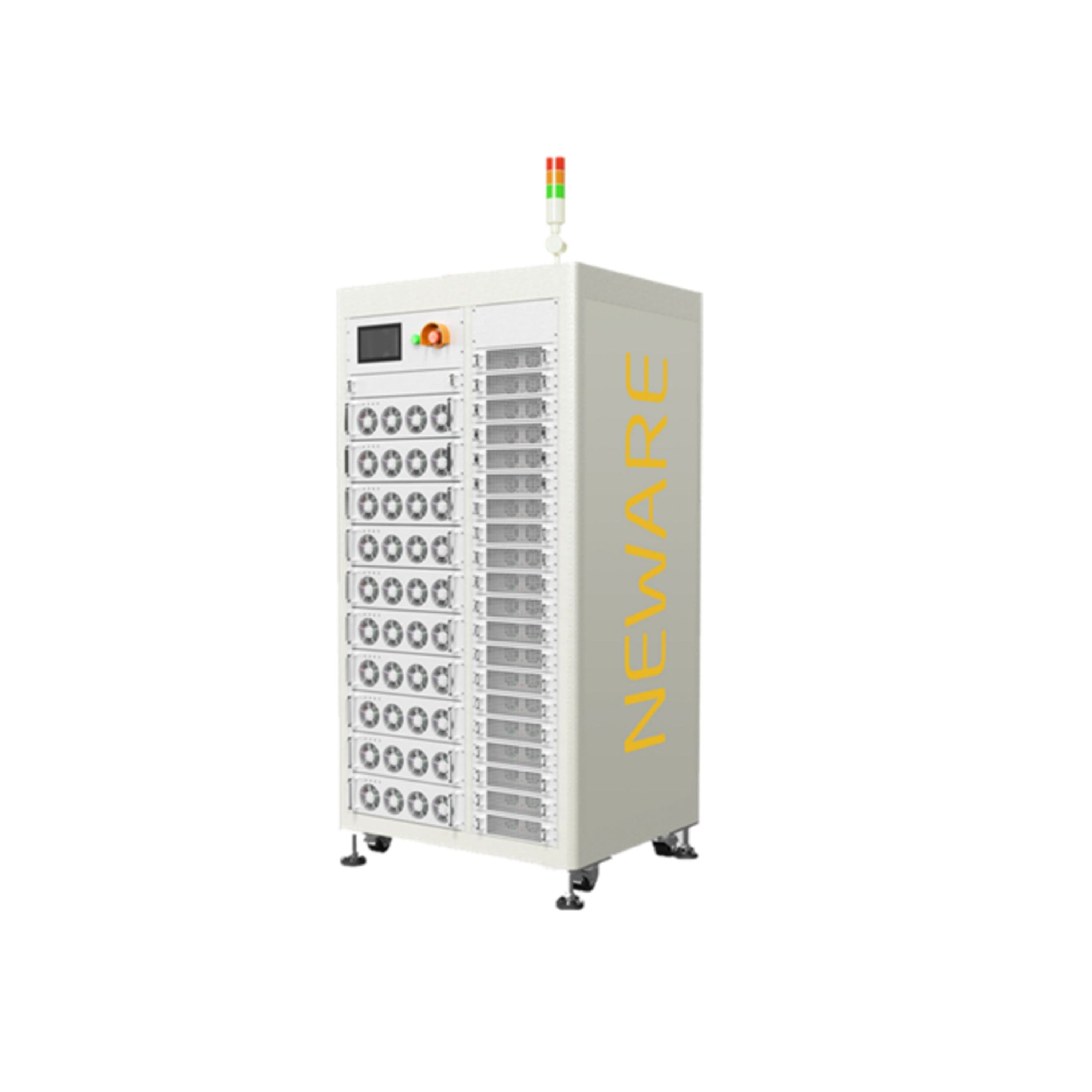

Neware CE-6002n-200V300A-H, 200V300A battery module testing equipment, 2 channels

Order upon Request
SKU: CE-6002n-200V300A-H
Customization Icon
Customizable Product

Together with our experts we will create a product designed for your needs

Still have questions? Ask our experts!

Email +1 (520) 789-6673

Neware CE-6002n-200V300A-H, 200V300A Battery Module Testing Equipment, 2 Channels

Introduction

The Neware CE-6002n-200V300A-H, 200V300A Battery Module Testing Equipment, 2 Channels is a high-power battery module testing system designed for charge/discharge cycling, simulation testing, pulse testing, and DCIR analysis. With 2 independent channels, up to 200V / 300A per channel, and support for up to 4-channel parallel connection, it is suitable for battery module research, performance validation, and demanding high-voltage, high-current testing applications.

Built with four-wire sampling, dual closed-loop control, TCP/IP communication, and centralized MySQL data management, this system provides accurate control, stable operation, and flexible integration for laboratory and production environments. Optional AUX channels also support temperature and voltage monitoring during testing.

Key Features

  • 2 independent testing channels
  • Up to 200V / 300A per channel
  • Supports max. 4-channel parallel mode
  • Voltage accuracy of ±0.02% FS
  • Current accuracy of ±0.05% FS
  • Single-channel output power up to 60 kW
  • Whole-machine output power up to 120 kW
  • Four-wire connection for accurate voltage and current sampling
  • Supports charge/discharge, simulation, pulse, and DCIR testing
  • Minimum pulse time of 50 ms
  • Recording frequency up to 100 Hz
  • TCP/IP communication and MySQL database support
  • Optional CAN, RS485, and BMS communication
  • Supports third-party integration with environmental chambers, water chillers, and pressure fixtures

Specifications

Parameter Specification
Model CE-6002n-200V300A-H
Channels Quantity 2
Channel Parallel Connection Supports max. 4 channels parallel mode
Input Power Supply 3PH-AC380V, 60Hz
Power Factor ≥99% (full load)
THDi ≤5% (full load)
Input Power 141.2 kW
Input Current 214.5 A / single
Overall System Efficiency (Max) 90%
Noise ≤65 dB
Equipment Size (W × D × H) 950 × 800 × 1950 mm
Weight About 416 kg
Power Control Module Type MOSFET
Input Power Wiring Method Three-phase-five wire system
Power Input Protection Anti-surge, anti-islanding, over-under-frequency, over-under-voltage, open-phase protection
Ingress Protection IP20
Voltage and Current Sampling Four-wire connection (same port for charging and discharging)
Voltage Output Range Charge: 0V–200V; Discharge: 5V–200V
Minimum Discharge Voltage 5V
Voltage Accuracy ±0.02% of FS
Voltage Resolution 24 bit
Current Output Range Range 1: 0.05A–25A; Range 2: 25A–50A; Range 3: 50A–100A; Range 4: 100A–300A
Current Accuracy ±0.05% of FS
CV Cut-off Current 0.05% of FS (each independent range)
Current Resolution 24 bit
Single Channel Output Power 60 kW
Whole Machine Output Power 120 kW
Current Response Time ≤3 ms
Current Conversion Time ≤6 ms
Minimum Step Time 0.1 s
Input Impedance ≥1 MΩ
Charge/Discharge Modes CCC&CCD, CVC&CVD, CC-CVC&CC-CVD, CPC&CPD, CP-CVC&CP-CVD, CV-CRD, CRD, VSS, CSS
Cut-off Condition Voltage, current, Δtime, capacity, -ΔV
Simulation Modes Current, Power
Simulation Switch Supports continuous switching between charge and discharge
Simulation Cut-off Condition Time, step line
Steps File Lines 1,000,000
Pulse Charge/Discharge Modes Current, Power
Minimum Pulse 50 ms
Pulse Counts Up to 32
Charge and Discharge Switch Supported
Pulse Cut-off Condition Voltage, ΔTime
DCIR DCIR by calculation
Software Protection Voltage lower/upper limit, current lower/upper limit, delay time, etc.
Hardware Protection Anti-reverse connection, over-voltage, over-current, over-temperature
Step Setting Method Form editing
Recording Frequency 100 Hz (10 Hz when two AUX channels allocate under one main channel)
Database MySQL database
Data Output Mode Excel, Txt
Curve Type Templates available, customization supported
Loop Test Range 1–65535
Number of Steps in a Single Loop ≤255
Loop Nesting ≤10
Host Computer Communication Mode Based on TCP/IP protocol
Communication Interface Ethernet
Lower Computer Communication Baud Rate 1M bandwidth
Host Computer Communication Baud Rate 10M–100M adaptive
Networking Mode Local area network through switches and routers
Communication Expansion (Optional) CAN, RS485, BMS communication with DBC; supports chamber, water chiller, pressure fixture integration
Optional Temperature Aux Range Thermocouple: -200°C to 260°C
Optional Temperature Accuracy ±1°C
Optional Temperature Resolution 0.1°C
Optional Voltage Aux Range 0V–5V
Optional Voltage Accuracy ±0.05% of FS
Optional Voltage Resolution 0.1 mV
Working Temperature -10°C to 40°C
Storage Temperature -20°C to 50°C
Working Humidity ≤70% RH (no water vapor condensation)
Storage Humidity ≤80% RH (no water vapor condensation)
Working Altitude <2000 m



Applications

This battery module testing equipment is suitable for:

  • Battery module charge/discharge testing
  • Cycle life evaluation
  • Pulse and DCIR testing
  • Simulation-based battery testing
  • Integrated testing with environmental chambers, water chillers, or pressure fixtures


Important Notes

  • This battery tester does not include a middle machine. If required, the middle machine must be purchased separately. Please order it separately
  • The default fixture supplied with this unit is the Ring Connector, and the default channel cable length is 2 meters. The polymer clamp is shown in the image below.



  • If you require a different type of clamp, please contact MSE Supplies directly.

MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.
