MSE PRO <3%RH 320L ESD Safe Dry Cabinet
Introduction
The MSE PRO <3%RH 320L ESD Safe Dry Cabinet is designed to protect moisture-sensitive electronic components from humidity-related damage. It provides automatic humidity control within <3% RH, ensuring a stable ultra-dry storage environment for ICs, PCBs, semiconductors, and precision electronic parts.
Equipped with a precise LED digital controller and ESD-safe construction, the cabinet delivers reliable environmental monitoring and safe storage for sensitive materials. Its modular design allows easy maintenance and future upgrades, while RoHS-compliant construction supports long-term durability with an expected service life of 15–20 years.
Key Features
-
Automatic humidity control <3% RH
-
Large 320L capacity
-
ESD-safe construction
-

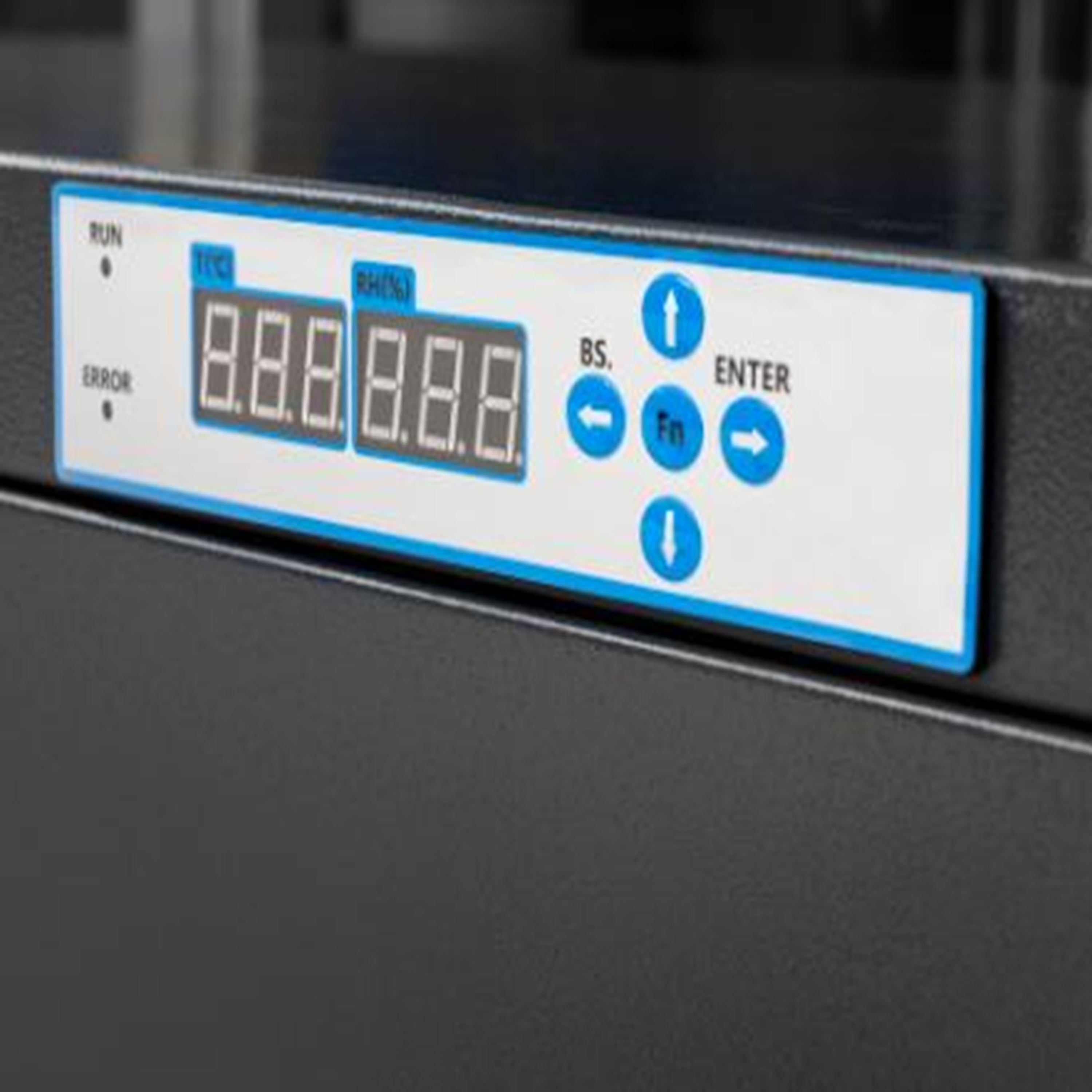

Precise LED digital controller
-
Modular, serviceable structure
-
Calibration reminder function
-
Plug-and-play operation
Ideal for electronics manufacturing, labs, and precision component storage.
Specification
| SKU | MA0067069 |
| Interior Dimension | 898(W) × 422(D) × 848(H) mm |
| Exterior Dimension | 900(W) × 450(D) × 1010(H) mm |
| Packing Dimension | 990(W) × 550(D) × 1170(H) mm |

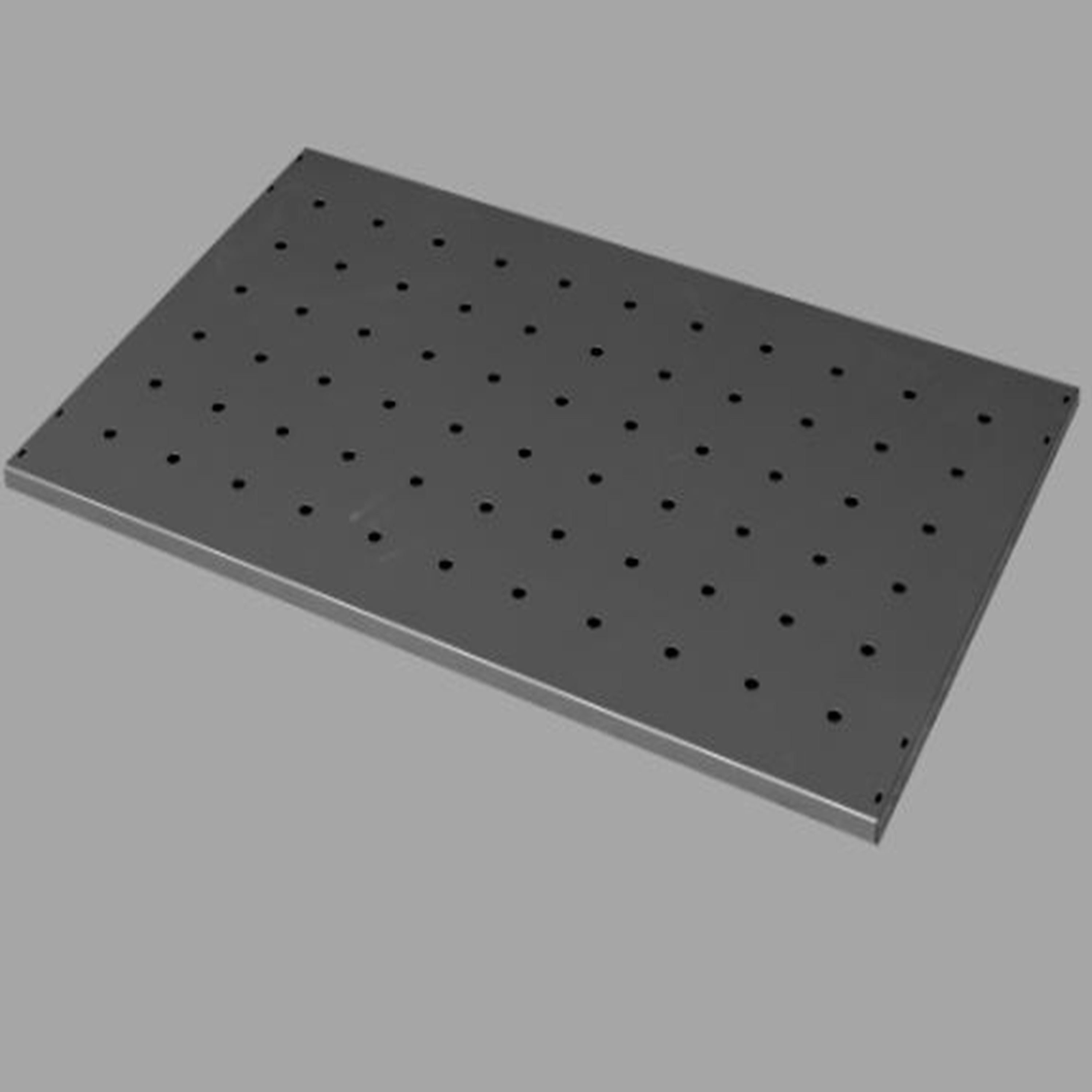

| Shelf Dimension | Adjustable shelves, 80 kg load each |
| Humidity Range | <3% RH automatic |
| Volume | 320 L |
| Net/Gross Weight | 54 kg / 70 kg |
| Recovery Time | Max. 30 min to reach set RH after 30 sec door opening (25°C, 60% RH, no load) |
| Precision | ±3% RH, ±1.0°C; Resolution: 0.1% RH, 0.1°C |
| Shelf | 3 pcs, height adjustable |
| Voltage | 110V / 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
