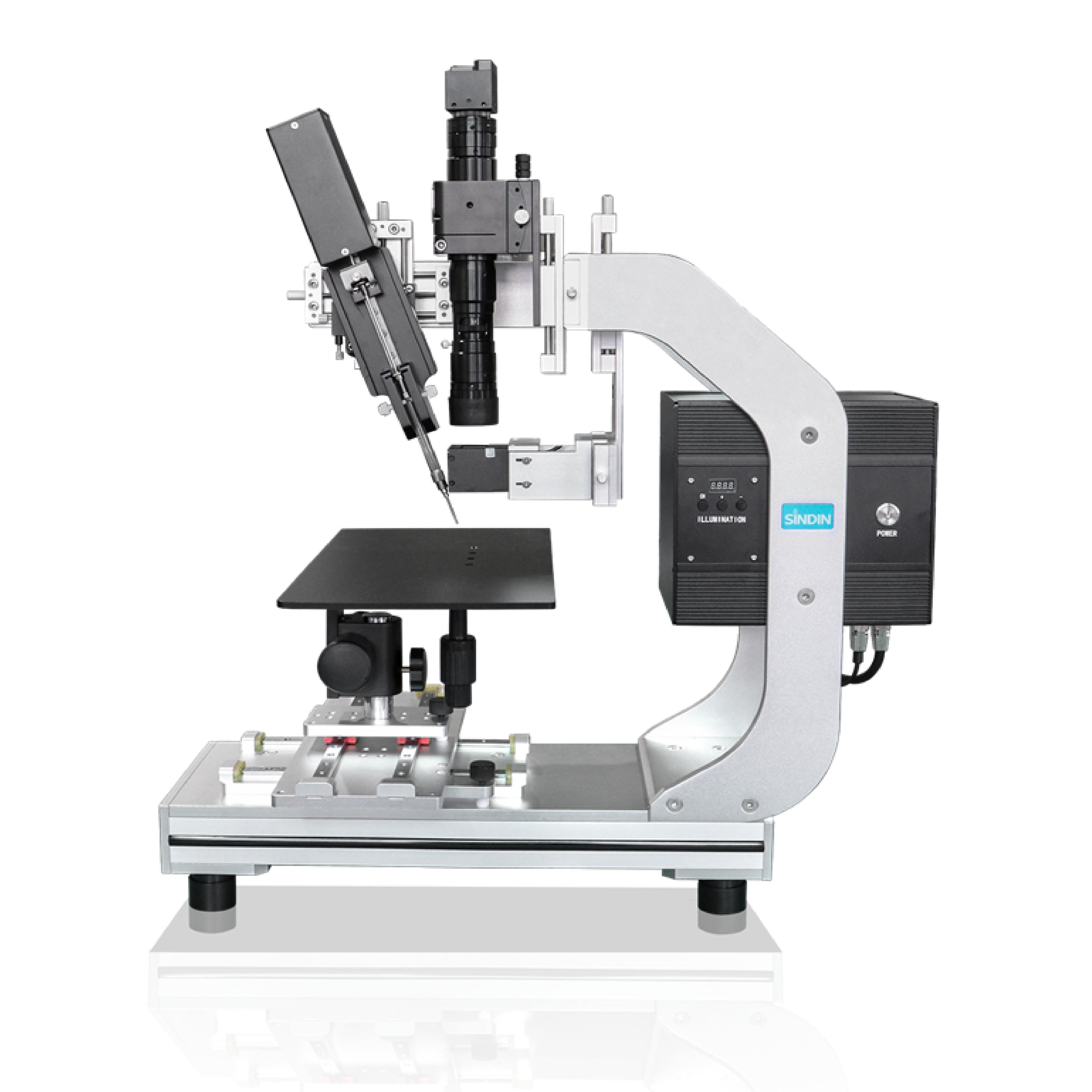

MSE PRO Top-View Contact Angle Goniometer
Introduction
The MSE PRO Top-View Contact Angle Goniometer is specifically designed for advanced surface wettability analysis using a top-view imaging configuration. This system enables precise measurement of droplet shape, spreading behavior, and surface uniformity across large-area samples, making it ideal for wafer inspection, coatings, and surface treatment evaluation.
Equipped with a high-resolution camera, large XY travel stage, and precision automatic dosing system, the instrument supports both static and dynamic contact angle analysis, as well as interfacial tension and surface free energy measurements. Its flexible configuration and advanced software make it well-suited for semiconductor, electronics, and research applications requiring detailed surface characterization.
Key Features
-
Top-view measurement for droplet spreading and surface uniformity analysis
-
Large 200 × 400 mm stage with extended XY movement
-
High-resolution imaging (up to 5000 × 4000)
-
Precision automatic dosing system (0.01 μL accuracy)
-
Supports static, dynamic, and interfacial tension analysis
-
Advanced surface free energy calculation (OWRK, Wu, Fowkes, etc.)
-
AI-assisted measurement and real-time data analysis
Specification
| 1. General | |
| Model | MSE PRO Top-View Contact Angle Goniometer |
| Dimensions | 620 × 400 × 730 mm |
| Weight | 17.5 kg |
| Power Supply | 110 V |
| Power Consumption | 50 W |
| Frequency | 60 Hz |
| 2. Sample Stage | |
| Stage Size | 200 × 400 mm |
| Max Sample Size | 400 × ∞ × 60 mm |
| Adjustment | 3D Manual |
| X-axis Travel | 260 mm |
| Y-axis Travel | 170 mm |
| Z-axis Travel | 60 mm |
| 3. Imaging System | |
| Resolution | 5000 × 4000 |
| Max Frame Rate | 300 fps (Upgradeable) |
| Sensor | SONY |
| Imaging Mode | Monochrome |
| Interface | USB3 Vision |
| Power | 5V DC USB |
| 4. Optical System | |
| Working Distance | 90 ± 10 mm |
| Magnification | 0.5× – 5× |
| Angle Adjustment | ±20° |
| Focus Adjustment | ±5 mm |
| 5. Illumination | |
| Light Type | Industrial LED (Cold Light) |
| Wavelength | 460 nm |
| Light Field | Φ17 mm |
| Voltage | 5 V |
| Lifetime | 50,000 hours |
| 6. Automatic Injection | |
| Control | Software Digital Control |
| Accuracy | 0.01 μL |
| Speed | 1–2000 μL/min |
| Syringe Volume | 100 / 500 / 1000 μL (500 μL standard) |
| Needle | Hydrophobic Stainless Steel |
| 7. Measurement & Analysis | |
| Contact Angle Range | 0–180° |
| Resolution | 0.01° |
| Measurement Modes | Auto / Semi-auto / Manual |
| Methods | Static, Dynamic, Advancing/Receding |
| Models | Young-Laplace, Circle, Ellipse, Tangent |
| AI Measurement | Supported |
| 8. Interfacial Tension | |
| Range | 0–3000 mN/m |
| Resolution | 0.01 mN/m |
| Methods | ADSA-HD, ADSA-SD |
| 9. Surface Free Energy | |
| Models | Zisman, OWRK, Wu, Fowkes, EOS |
| Database | 160+ liquids |
| Outputs | Adhesion work, spreading coefficient |
| 10. Data Processing | |
| Output | One-click export |
| Formats | Excel, Word, TXT, Graphs |
| MES Integration | Optional |
MSE offers a range of contact angle goniometer models. Please contact us for more information.
