MSE PRO Research-Grade Contact Angle Goniometer
Introduction

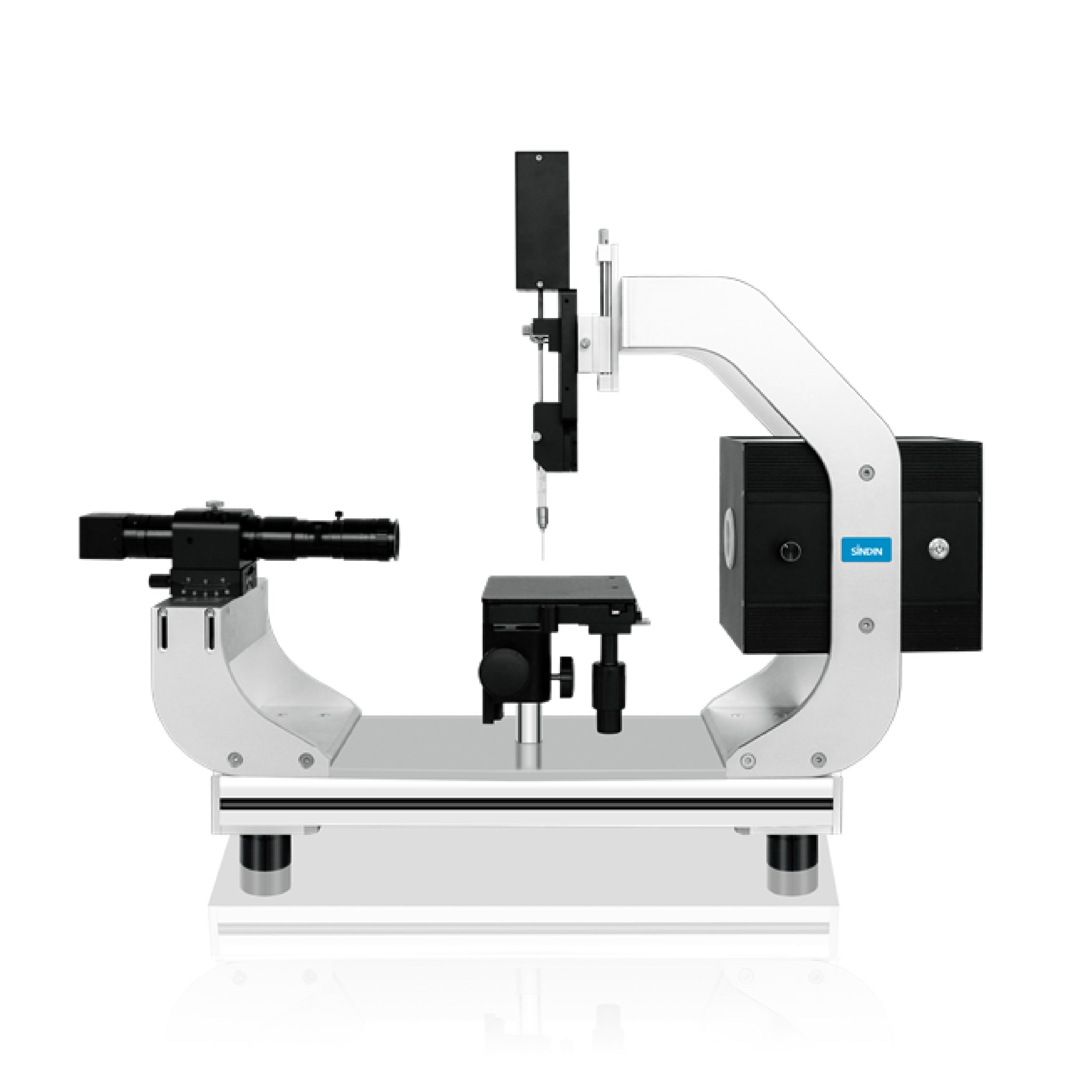

The MSE PRO Research-Grade Contact Angle Goniometer is a high-end analytical system designed for advanced surface and interfacial characterization. Featuring an ultra-high-resolution imaging system (up to 5120 × 3480), precision micro-injection control (0.01 μL), and fully automated analysis capabilities, it delivers exceptional accuracy for both static and dynamic contact angle measurements.
Engineered for demanding research environments, the system supports comprehensive analysis including surface free energy, interfacial tension, and dynamic wetting behavior. With flexible optical adjustment, high-speed imaging, and advanced data processing, it is ideal for cutting-edge applications in semiconductors, energy materials, coatings, and academic research.
Key Features
-
Ultra-high-resolution imaging (up to 5120 × 3480)
-
High-precision dosing system (0.01 μL, software-controlled)
-
High-speed imaging up to 300 fps
-
Advanced drop shape analysis (Young-Laplace, ellipse, etc.)
-
Full support for static, dynamic, and interfacial measurements
-
Surface free energy and interfacial tension analysis
-
Adjustable optical system with enhanced measurement flexibility
-
Automated data processing with exportable reports
Specification
| 1. General | |
| Model | MSE PRO Research-Grade Contact Angle Goniometer |
| Dimensions | 800 × 190 × 640 mm |
| Weight | 16 kg |
| Power Supply | 110V |
| Power Consumption | 50 W |
| Frequency | 60 Hz |
| 2. Sample Stage | |
| Stage Size | 160 × 200 mm |
| Max Sample Size | 280 × ∞ × 60 mm |
| Adjustment | 3D Manual (Upgradeable to Automatic) |
| X-axis Travel | 35 mm (±0.1 mm) |
| Y-axis Travel | 60 mm (±0.1 mm) |
| Z-axis Travel | 80 mm (±0.1 mm) |
| 3. Imaging System | |
| Resolution | 5120 × 3480 |
| Max Frame Rate | 300 fps (Upgradeable) |
| Sensor | SONY 1/1.8" |
| Imaging Mode | Color / Monochrome |
| Interface | USB3 Vision |
| Power | 5V DC USB |
| 4. Optical System | |
| Focal Length | 130 mm (Zoom Adjustable) |
| Magnification | 10× |
| Angle Adjustment | ±10° |
| Resolution Scale | 4–14 μm |
| 5. Illumination | |
| Light Type | Industrial LED (Cold Light) |
| Wavelength | 470 nm |
| Light Field | Φ50 mm |
| LED Array | 96-point |
| Lifetime | 50,000 hours |
| 6. Injection System | |
| Injection Type | Precision Micro-Injection Pump |
| Control | Software Digital Control |
| Accuracy | 0.01 μL |
| Speed | 1–2000 μL/min |
| Syringe Volume | 100 / 500 / 1000 μL (500 μL standard) |
| Needle | 0.51 mm Hydrophobic Stainless Steel |
| 7. Measurement & Analysis | |
| Contact Angle Range | 0–180° |
| Resolution | 0.01° |
| Measurement Modes | Auto / Semi-auto / Manual |
| Methods | Static, Dynamic, Advancing/Receding |
| Models | Young-Laplace, Circle, Ellipse, Tangent |
| Data Output | Angle, volume, height, spreading diameter |
| 8. Interfacial Tension | |
| Range | 0–3000 mN/m |
| Resolution | 0.01 mN/m |
| Methods | Hanging drop, bubble method |
| 9. Surface Free Energy | |
| Models | Zisman, OWRK, Wu, Fowkes, Antonow, EOS |
| Outputs | Adhesion work, wetting work, spreading coefficient |
| 10. Data Processing | |
| Output | Automatic report generation |
| Formats | Excel, Word, Graphs |
| MES Integration | Supported |
MSE offers a range of contact angle goniometer models. Please contact us for more information.
