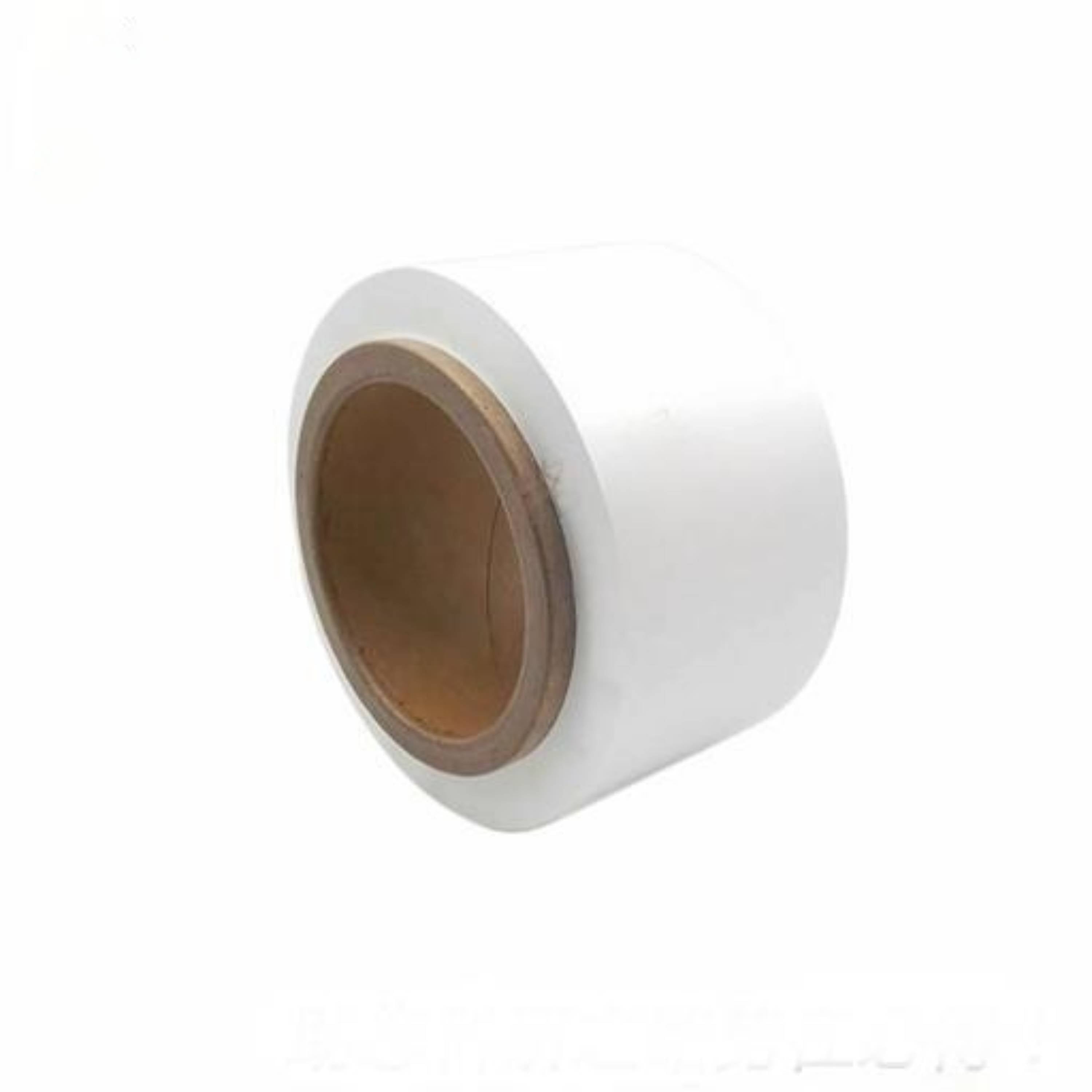

MSE PRO LATP-Coated Separator (9 μm PE + 4 μm Coating, 95mm x 10m) for Flexible Solid State Battery
Product Overview
The MSE PRO LATP-Coated Separator is a high-performance composite separator engineered for flexible solid-state battery applications. It features a polyethylene (PE) base film coated with a uniform LATP (Lithium Aluminum Titanium Phosphate) ceramic slurry layer, providing enhanced ionic conductivity, improved thermal stability, and strong mechanical integrity.
This advanced separator helps improve interfacial compatibility, supports stable lithium-ion transport, and enhances safety and reliability in next-generation solid-state energy storage systems.
Applications
-
Flexible solid-state batteries
-
Lithium metal battery research
-
Solid electrolyte system development
-
Advanced energy storage R&D
Physical Properties
| Parameter | Value |
|---|---|
| Thickness | 13.6 µm |
| Surface Density | 10.16 g/m² |
| Air Permeability | 149 sec/100 cc |
| Puncture Strength | 513 gf |
| Porosity | 43.7% |
Mechanical Properties
| Property | MD | TD |
|---|---|---|
| Tensile Strength | 1826 kgf/cm² | 2726 kgf/cm² |
| Thermal Shrinkage (130 °C, 0.5 h) | 1.5% | 1.25% |
