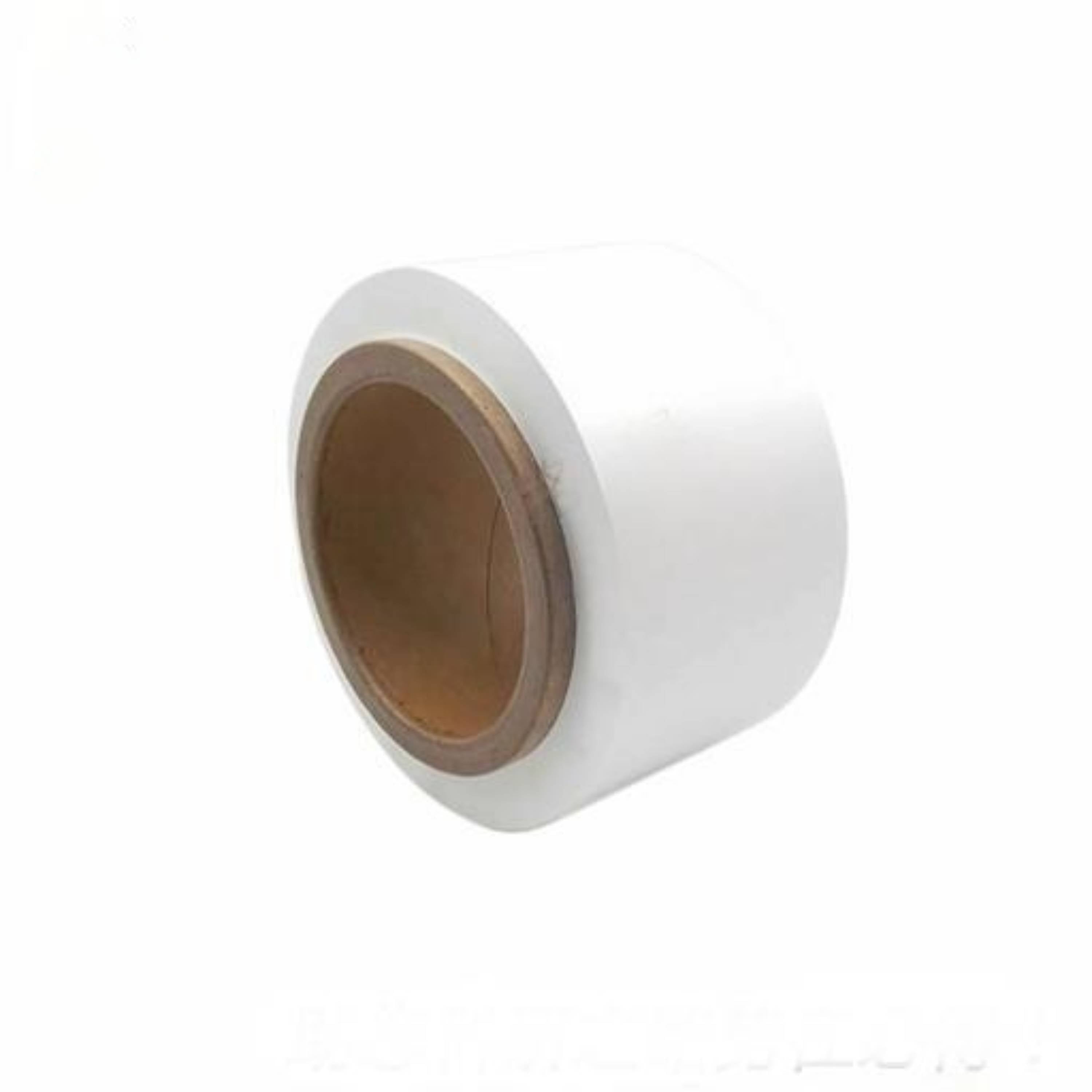

MSE PRO LATP-Coated Separator (9 μm PE + 4 μm Coating, 78mm x 10m) for Flexible Solid State Battery
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LATP-Coated Separator (9 μm PE + 4 μm Coating, 78mm x 10m) for Flexible Solid State Battery
Introduction
The MSE PRO LATP-Coated Separator is a high-performance composite separator designed for flexible solid-state battery applications. It features a polyethylene (PE) base film with a uniform LATP (Lithium Aluminum Titanium Phosphate) ceramic slurry coating, providing enhanced ionic conductivity, thermal stability, and mechanical strength.
This advanced separator improves interfacial compatibility, enhances electrochemical stability, and supports safe operation in next-generation solid-state energy storage systems.
Applications
-
Flexible solid-state batteries
-
Lithium metal batteries
-
Advanced solid electrolyte research
-
Next-generation energy storage development
Physical Properties
| Parameter | Value |
|---|---|
| Thickness | 13.6 µm |
| Surface Density | 10.16 g/m² |
| Air Permeability | 149 sec/100 cc |
| Puncture Strength | 513 gf |
| Porosity | 43.7% |
Mechanical Properties
| Property | MD | TD |
|---|---|---|
| Tensile Strength | 1826 kgf/cm² | 2726 kgf/cm² |
| Thermal Shrinkage (130 °C, 0.5 h) | 1.5% | 1.25% |
