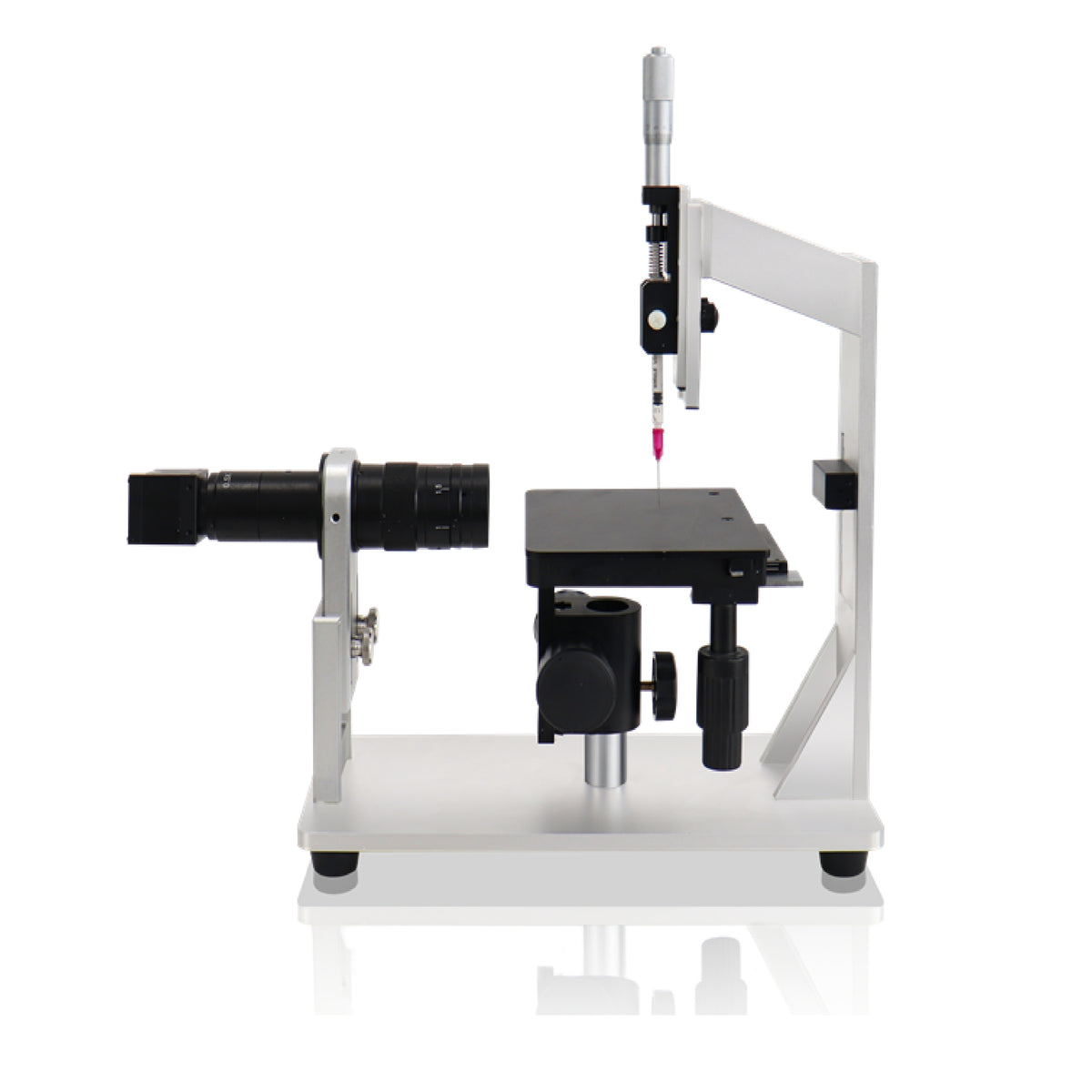

MSE PRO Compact Contact Angle Goniometer
Introduction
The MSE PRO Compact Contact Angle Goniometer is a space-efficient and cost-effective solution for accurate surface wettability analysis. Designed for ease of use, it enables reliable static and dynamic contact angle measurements with minimal setup.
Equipped with a high-resolution camera, precision micro-syringe, and stable LED illumination, the system delivers clear imaging and consistent results. Its intuitive software supports automated analysis and report generation, making it ideal for routine testing in materials science, coatings, and surface research.
Key Features
-
Compact benchtop design, easy to operate
-
High-resolution imaging with up to 200 fps
-
Precision droplet control (0.1 μL accuracy)
-
Supports static and dynamic contact angle analysis
-
Multiple measurement modes (auto / semi-auto / manual)
-
Advanced software with automated reporting
-
Stable LED cold light source (long lifespan)
-
Expandable with optional accessories
Specification
| 1. General | |
|
Parameter
|
Specification |
| Model | MSE PRO Compact Contact Angle Goniometer |
| Dimensions | 420 × 150 × 400 mm |
| Weight | 3.2 kg |
| Power Supply | 110V |
| Power Consumption | 20 W |
| Frequency | 60 Hz |
| 2. Sample Stage | |
|
Parameter
|
Specification |
| Stage Size | 130 × 150 mm |
| Max Sample Size | 180 × ∞ × 30 mm |
| Adjustment | 3D Manual (Upgradeable to Automatic) |
| X-axis Travel | 35 mm (±0.1 mm) |
| Y-axis Travel | 60 mm (±0.1 mm) |
| Z-axis Travel | 80 mm (±0.1 mm) |
| 3. Imaging System | |
|
Parameter
|
Specification |
| Resolution | 3088 × 2064 |
| Max Frame Rate | 200 fps |
| Sensor | SONY 1/1.8" |
| Imaging Mode | Color / Monochrome |
| Exposure | Adjustable |
| Interface | USB3 Vision |
| Power | 5V DC USB |
| 4. Optical System | |
|
Parameter
|
Specification |
| Lens Focal Length | 100 mm |
| Magnification | 8× |
| Resolution Scale | 6–12 μm |
| 5. Illumination | |
|
Parameter
|
Specification |
| Light Type | Industrial LED (Cold Light) |
| Wavelength | 460 nm |
| Light Field | 40 × 20 mm |
| Lifetime | 50,000 hours |
| 6. Injection System | |
|
Parameter
|
Specification |
| Injection Type | Direct Micro-Syringe |
| Control | Manual |
| Accuracy | 0.1 μL |
| Syringe Volume | 1000 μL |
| Needle | 0.51 mm Hydrophobic Stainless Steel |
| 7. Measurement & Analysis | |
|
Parameter
|
Specification |
| Contact Angle Range | 0–180° |
| Resolution | 0.01° |
| Measurement Modes | Automatic / Semi-Automatic / Manual |
| Methods | Static, Dynamic, Advancing/Receding Angle |
| Analysis Models | Young-Laplace, Circle, Ellipse, Tangent, etc. |
| Surface Energy Models | Zisman, OWRK, Wu, Fowkes, Antonow, etc. |
| 8. Data Processing | |
|
Parameter
|
Specification |
| Output | Auto-generated reports |
| Export Format | Excel, Word, Graphs |
MSE offers a range of contact angle goniometer models. Please contact us for more information.
