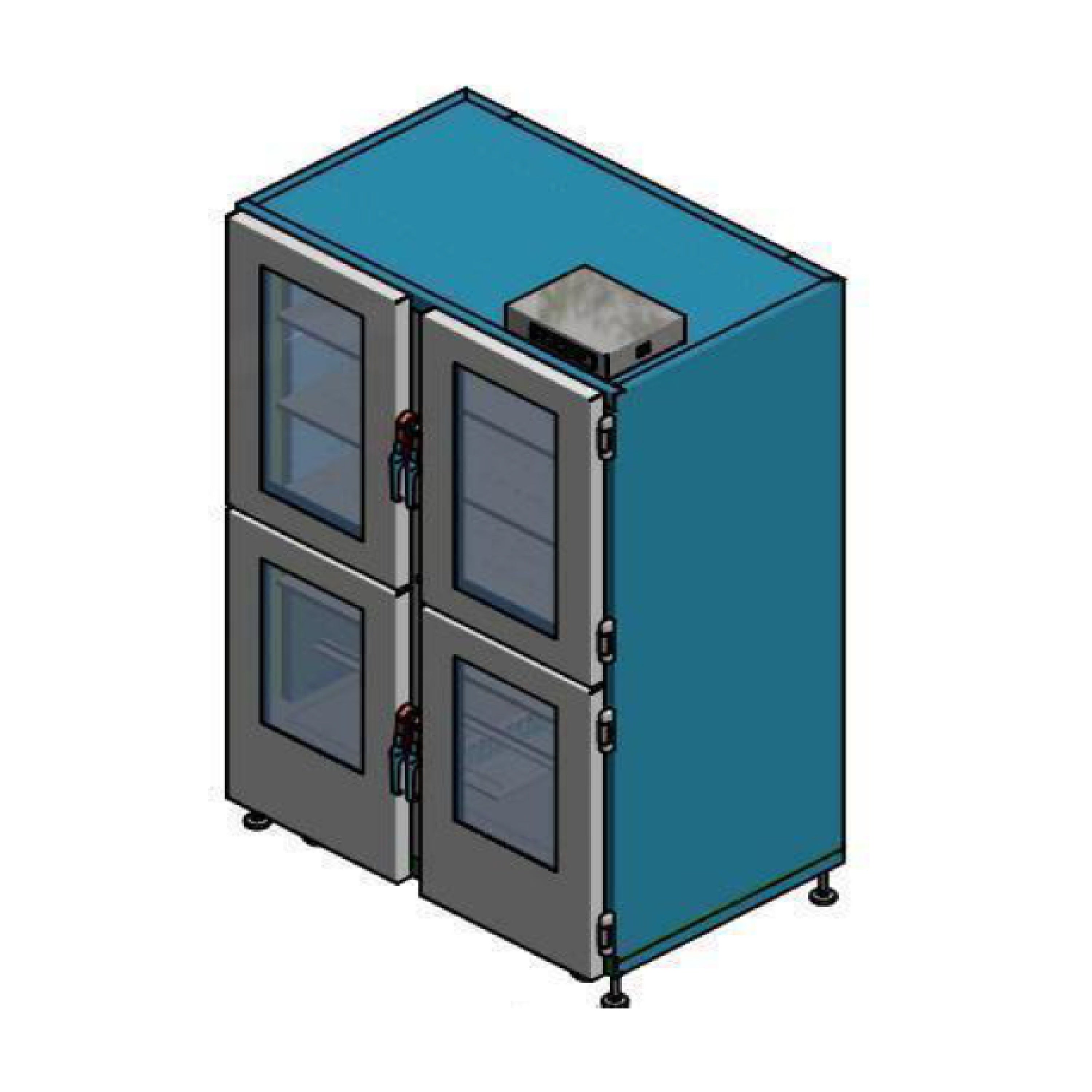

MSE PRO <5% RH 950L ESD Safe 60°C Baking Dry Cabinet is designed to protect moisture-sensitive electronic components from humidity-related damage. It provides a stable low-humidity environment combined with controlled low-temperature baking for safe storage and conditioning.
The cabinet maintains temperatures up to 60 °C while keeping relative humidity below 10% RH (typically <5% RH under optimal conditions). Its ESD-safe construction ensures protection for sensitive electronics during storage and handling. A precise LED digital controller allows accurate monitoring and adjustment of temperature and humidity.
Key Features:
-
Large 950 L capacity
-
Maintains <10% RH (typically <5% RH)
-
Stable heating up to 60 °C
-
ESD-safe design
-
LED digital temperature and humidity control
Ideal for PCBs, semiconductors, and other moisture-sensitive electronic components.
Specification
| SKU | MA0067065 |
| Interior Dimension | W1021 x D614 x H1520 mm |
| Exterior Dimension | W1200 x D780 x H1830 mm (excluding castors & controller) |
| Packing Dimension | Approx. W1280 x D850 x H2060 mm |
| Shelf Dimension | W1021 x D614 x H19 mm each (5 pcs) |
| Humidity Range | <5% RH automatic control |
| Volume | 950 L |
| Net/Gross Weight | 280 kg / 310 kg |
| Recovery Function | Automatic dry module with memory function |
| Precision | Humidity: ±3.0% RH (0.1% RH resolution); Temperature: ±1.0°C (0.1°C resolution) |
| Shelf | 5 pcs, 100 kg per shelf load capacity |
| Voltage | 110V / 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
