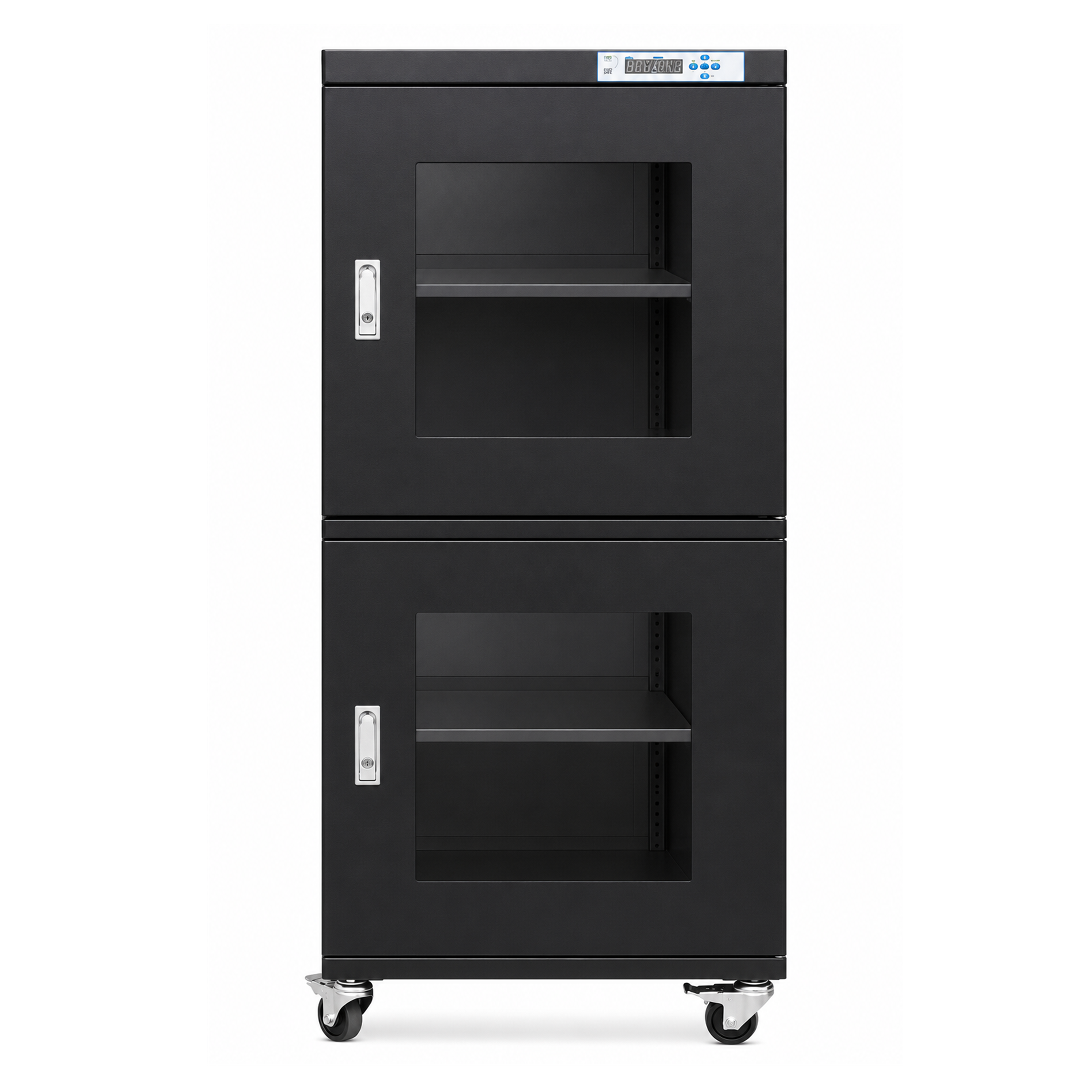

MSE PRO 20%-60%RH 540L ESD Safe Dry Cabinet, 110V 60Hz
Introduction
The MSE PRO 20%-60%RH 540L ESD Safe Dry Cabinet is designed to protect humidity-sensitive electronic components, materials, and instruments from moisture damage. With an adjustable humidity range of 20%RH to 60%RH, this dry cabinet provides a stable, controlled storage environment using a precise LED digital controller.
Features
20%-60%RH Adjustable Humidity Control
Provides reliable humidity control from 20%RH to 60%RH, suitable for storing moisture-sensitive electronic components and materials.
540L Large Capacity
The cabinet offers a large 540L internal volume, making it suitable for laboratories, electronics manufacturing, storage rooms, and industrial environments.
ESD Safe Design
The cabinet is finished with dark blue U.S. DuPont ESD-safe powder coating, helping reduce electrostatic discharge risks during electronic component storage.

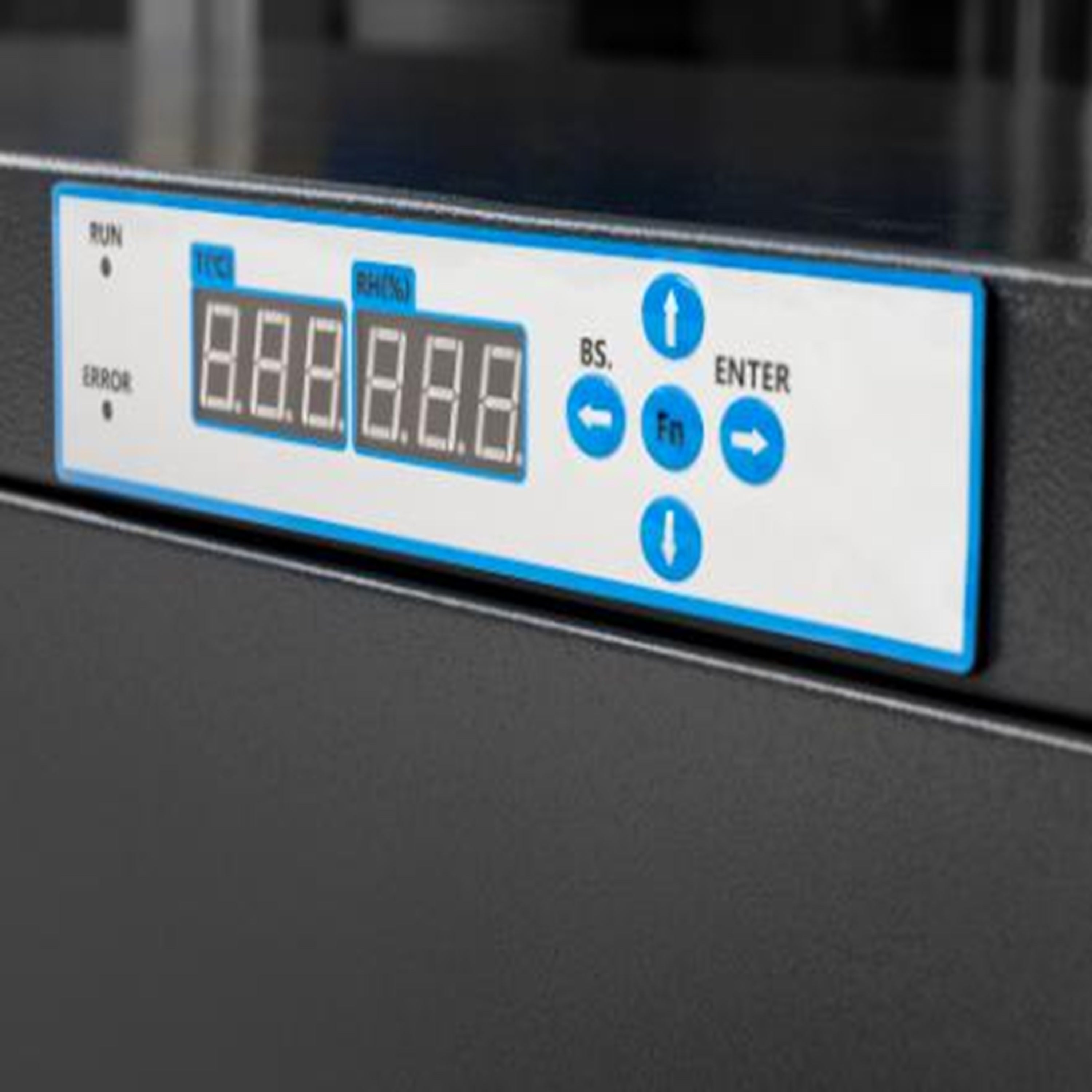

LED Digital Controller
Equipped with a precise LED digital controller for easy operation and clear humidity/temperature display.
Modular Design
The dehumidifier, display controller, power box, shelf, and casters are modular and can be replaced easily when needed.

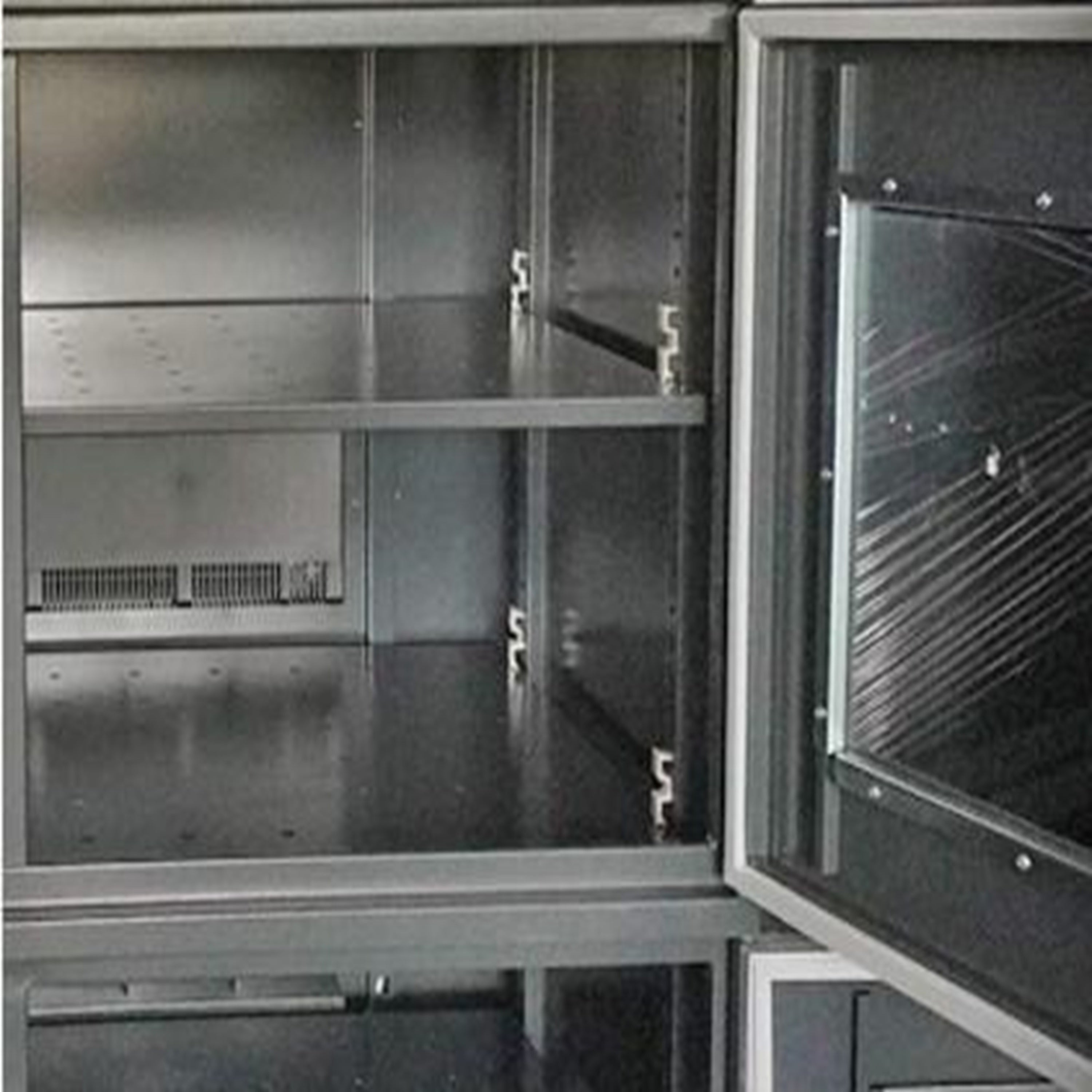

Durable Cabinet Structure
Built with 1.2 mm galvanized steel and reinforced structure for excellent load-bearing strength, sealing performance, and long-term use.
Tempered Glass Doors
Features 3.2 mm tempered glass doors with alloy locks for improved sealing, visibility, and secure storage.
Mobile Design with ESD Casters
Equipped with 4 universal ESD-safe casters, including 2 front casters with brakes, for easy movement and stable positioning.
Grounding Protection
Designed with a power consumption averaging 6 W/h and includes a 1.2 m grounding cable.
Specifications
| SKU | MA0072302 |
| Humidity Range | 20%-60%RH adjustable |
| Volume | 540L |
| Interior Dimensions | 596(W) × 682(D) × 1298(H) mm |
| Exterior Dimensions | 598(W) × 710(D) × 1465(H) mm |
| Packing Dimensions | 810(W) × 800(D) × 1610(H) mm |
| Voltage | 110V / 60Hz |
| Display Precision | ±3%RH, ±0.5°C |
| Resolution | 0.1%RH, 0.1°C |
| Color | Dark Blue, U.S. DuPont ESD-safe powder coated |
| Structure | 1.2 mm galvanized steel |
| Door | 3.2 mm tempered glass with alloy lock |
| Power Consumption | Average 6 W/h |
| Grounding Cable | 1.2 m |
| Wheels | 4 ESD-safe universal casters, 2 with brakes |
| Gross / Net Weight | 98 kg / 68 kg |
| Shelf Load Capacity | 80 kg per shelf |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
