MSE PRO™ Explosion‑Proof High‑Capacity Peristaltic Pump 300‑30L with Speed Range 0.1-600rpm
Product Introduction
- Ex II2G Ex db IIC T4 Gb and Ex II2D Ex tb IIIC T130℃ Db explosion proof levels
Integrated casting body.

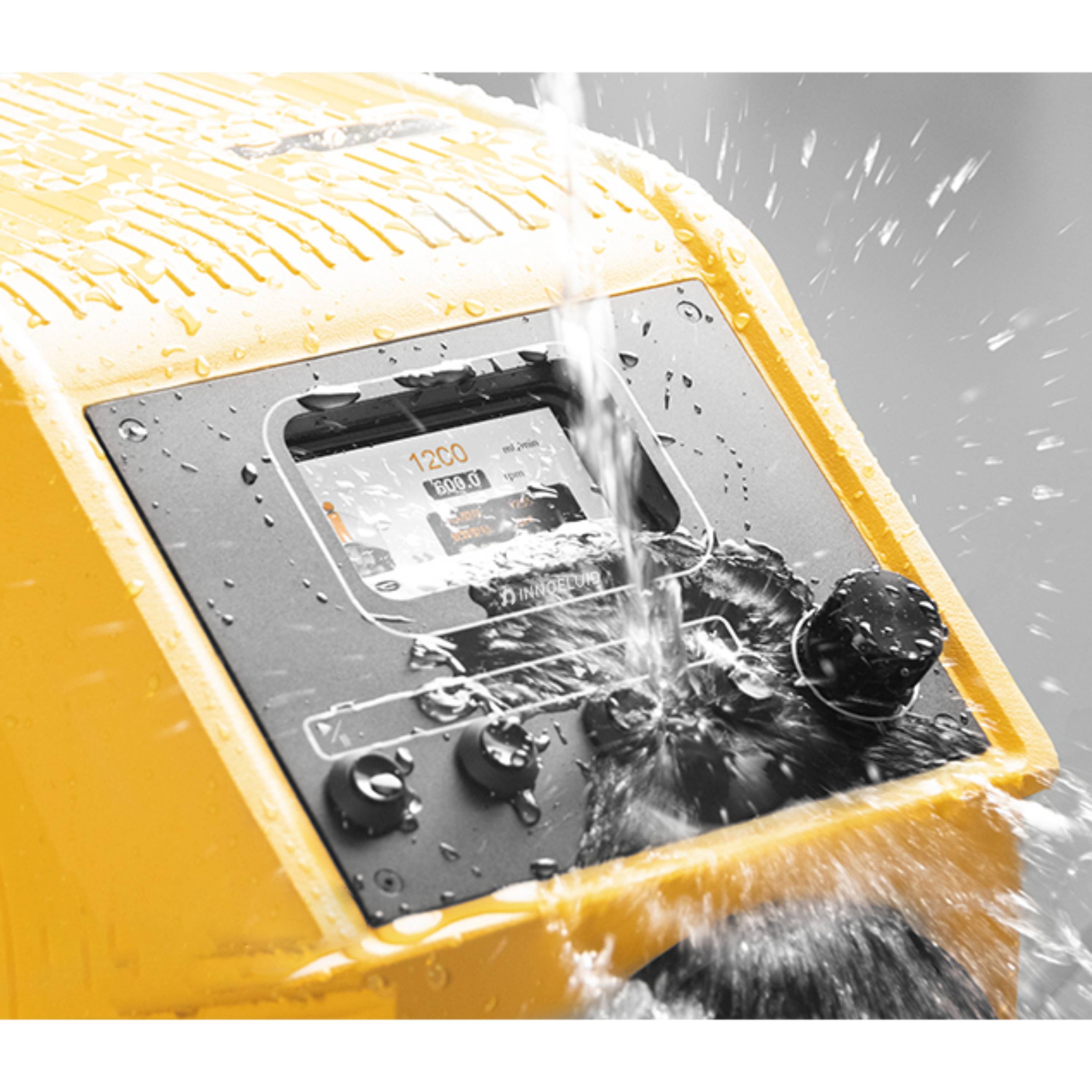

- IP66 designed for industrial environment.
- Three-proof buttons and knob system: explosion-proof dustproof, waterproof.
- Intelligent operation system.
- Passed EMC test excellent anti-electromagnetic interference capability.
- AC servo motor control system.
- Laser engraving logo pattern to eliminate the hidden danger of static electricity of traditional plastic label.
Technical Parameter
|
Marking |
Ex II2G Ex db lIC T4 Gb; Ex II2D Ex tb lIC T130°C |
|
Standard |
ENIEC 60079-0:2018+A11:2024; ENIEC60079-1:2014+A11: 2024; EN IEC 60079-31:2018 |
|
Housing material |
Aluminum Alloy |
|
Speed range |
0.1-300rpm |
|
Speed resolution |
0.1rpm |
|
Display |
4.3 inch-industrial grade-True color LCD screen |
|
Control |
Mechanical button, explosion proof knob, external control signal and communication |
|
Working mode |
Flow rate mode, Dispensing mode |
|
Flow rate mode |
Continuous transferring according to the set flow rate or motor speed |
|
Dispensing mode |
Set the dispensing volume, dispensing time, pause time and repeat numbers |
|
Dispensing volume |
0.1mL-9999L |
|
Dispensing time |
0.1sec-9999hour |
|
Pause time |
0.5sec-9999hour |
|
Repeat number |
1-9999 times,0 represent unlimited |
|
Calibration function |
Input actual volume and calibrate automatically |
|
Back suction angle |
0-360° |
|
Communication |
RS485 |
|
Communication protocol |
Modbus protocol (RTU mode) |
|
External control speed signal |
0-5V,0-10V,4-20mA optional |
|
External control signal input |
Active switch signal (5-24V) control start/stop, direction and full speed; Passive switch signal control start/stop. |
|
External control signal output |
Open collector output working status |
|
Drive dimension(LxWxH) |
458x285x335mm |
|
Power supply |
AC110-220V±10%,50Hz/60Hz |
|
Rated power |
300W |
|
Relative humidity |
<90% |
|
Condition temperature |
0-40°C |
|
IP rate |
IP66 |
|
Drive weight |
30.1kg |
Pump Head Parameter
|
Drive |
Pump Head |
Housing Material |
Tube Clamp/ |
Tubing |
Speed(rpm) |
L/r |
Flow Rate |
Weight(kg) |
|
|
Size |
lD x Wall Thickness(mm) |
||||||||
|
MA0067145 |
DZ45 |
Aluminum alloy |
Aluminum alloy |
193# |
9.6x4.8 |
0.1-300 |
0.019 |
0.0019-5.66 |
10 |
|
88# |
12.7x4.8 |
0.035 |
0.0035-10.5 |
||||||
|
189# |
15.9x4.8 |
0.047 |
0.0047-13.98 |
||||||
|
191# |
19.4x4.8 |
0.063 |
0.0063-18.78 |
||||||
|
92# |
25.4x4.8 |
0.1-270 |
0.104 |
0.0104-28.15 |
|||||
Intelligent operation system
Application
Precise dripping of chemical drug in explosion-proof
production workshop
In the titration process of chemical drug production, customers have been using liquid level tanks to drip acetone or ethanol solutions. This method is less accurate. Because this process is used to transport ethanol and acetone, the equipment is required to be explosion-proof and corrosion-resistant. Using MA0067145 explosion proof peristaltic pump to achieve precise control and accuracy of ±1%.
95% ethanol sub-package production
The customer has been using the explosion proof motor and piston pump to dispense ethanol. When producing products of different specifications, complicated equipment adjustment work is required, which takes about 2-3 hours. The customer's equipment transformation replaces the sub-package pump with MA0067145. For each replacement, it only needs to adjust the parameters on the control panel of the pump, and it only takes 5 minutes at most.
Catalytic validation equipment and simulation pilot production equipment
validation device sampling for chemical enterprises
In the process of validating catalysts and simulating oil production, chemical enterprises need sampling pumps for accurate injection. A lot of electromagnetic interference signals will be generated in the field cause of multiple devices running in a centralized manner. And many similar products in the market cannot meet the demand. MA0067145 peristaltic pump achieves accurate sampling through good anti-interference ability on site.
