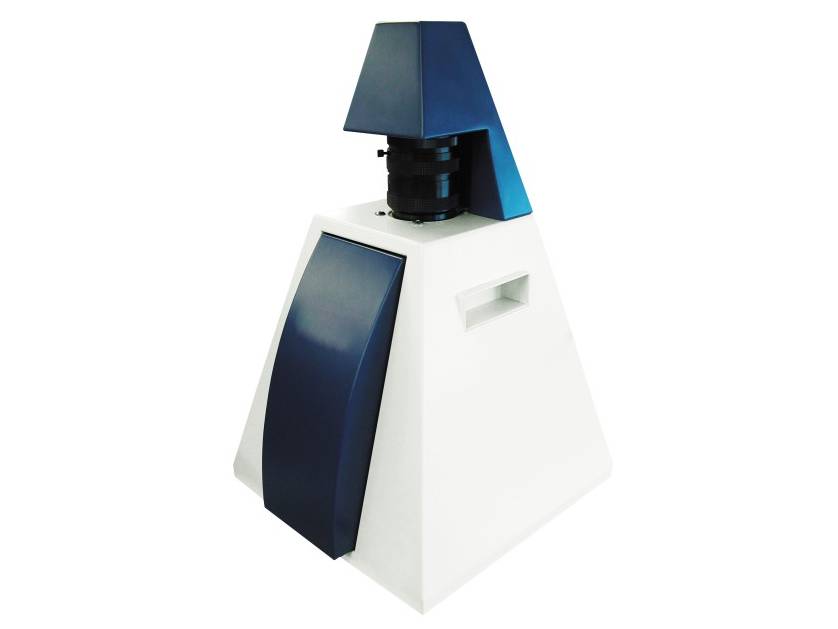

Witeg Gel Documentation System WGD20 Portable With Camera And Software
Regular price
$ 5,760.95
Couldn't load pickup availability
Still have questions? Ask our experts!
Witeg Gel Documentation System WGD20 Portable With Camera And Software
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- DNA, RNA gel imaging capture and analysis
Features:
- The most cost-effective system
- High precise and large caliber optical lens with zoom, focus and iris control
- Digital CCD camera (resolution 1360x1024, 1.5 m pixel) with portable darkroom10-bit CCD, available for 8-bit grey level image capturing
- Very compact portable darkroom system for highest flexibility
- Existing transilluminator can be used
- USB 2.0 interface for real-time images and data transfer
- Power supply via USB
- WiseCapture II™ software: easy and fast view, capture and save gel images (included)
- TotalLab™ Quant software (WGD-20S): fully automatic, single button press complete image analysis in interesting area
- CE certified and unique serial number for tracing
Technical data
|
Width (Outer) |
260 mm |
|
Height (outer) |
430 mm |
|
Connections |
USB 2.0 |
|
Weight with packaging |
18 kg |
|
Packing size |
400 x 350 x 510 mm |
|
Length (outer) |
260 mm |
|
Ideal for |
DNA, RNA gel imaging capture and analysis |
|
Weight |
9 kg |
|
Temperature range |
Operation temperature -10°C to +50°C |
|
Controller |
1/2“ CCD |
Comparison
| SKU | Model | Width (Outer) | Length (outer) | Height (outer) | Ideal for | Connections | Weight | Weight with packaging | Temperature range | Packing size | Controller |
| DH.WGD00020 | WGD-20 | 260 mm | 260 mm | 430 mm | DNA, RNA gel imaging capture and analysis | USB 2.0 | 9 kg | 18 kg | Operation temperature -10°C to +50°C | 400 x 350 x 510 mm | 1/2“ CCD |
| DH.WGD00024 | WGD-20S | 260 mm | 260 mm | 430 mm | DNA, RNA gel imaging capture and analysis | USB 2.0 | 9 kg | 18 kg | Operation temperature -10°C to +50°C | 400 x 350 x 510 mm | 1/2“ CCD |
