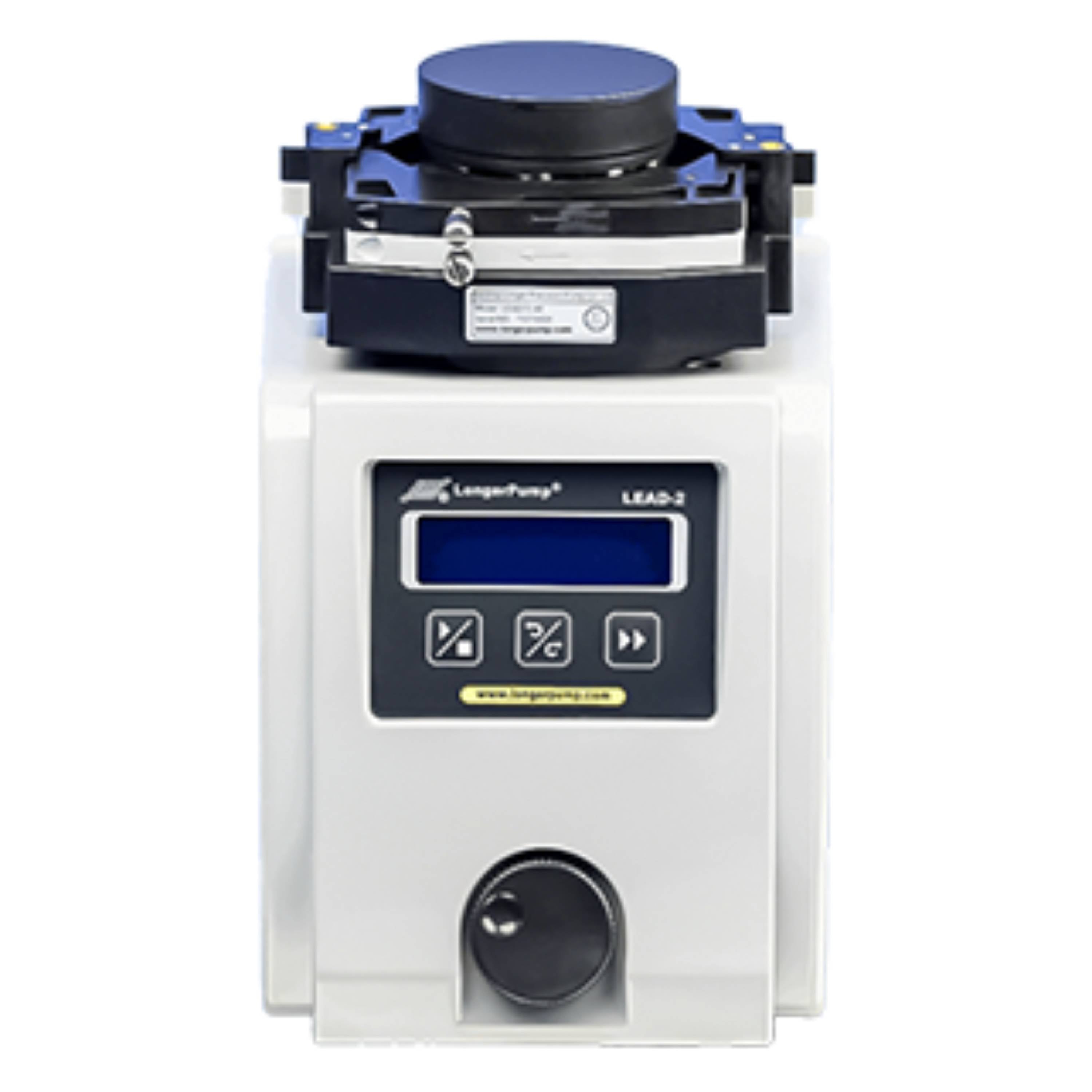

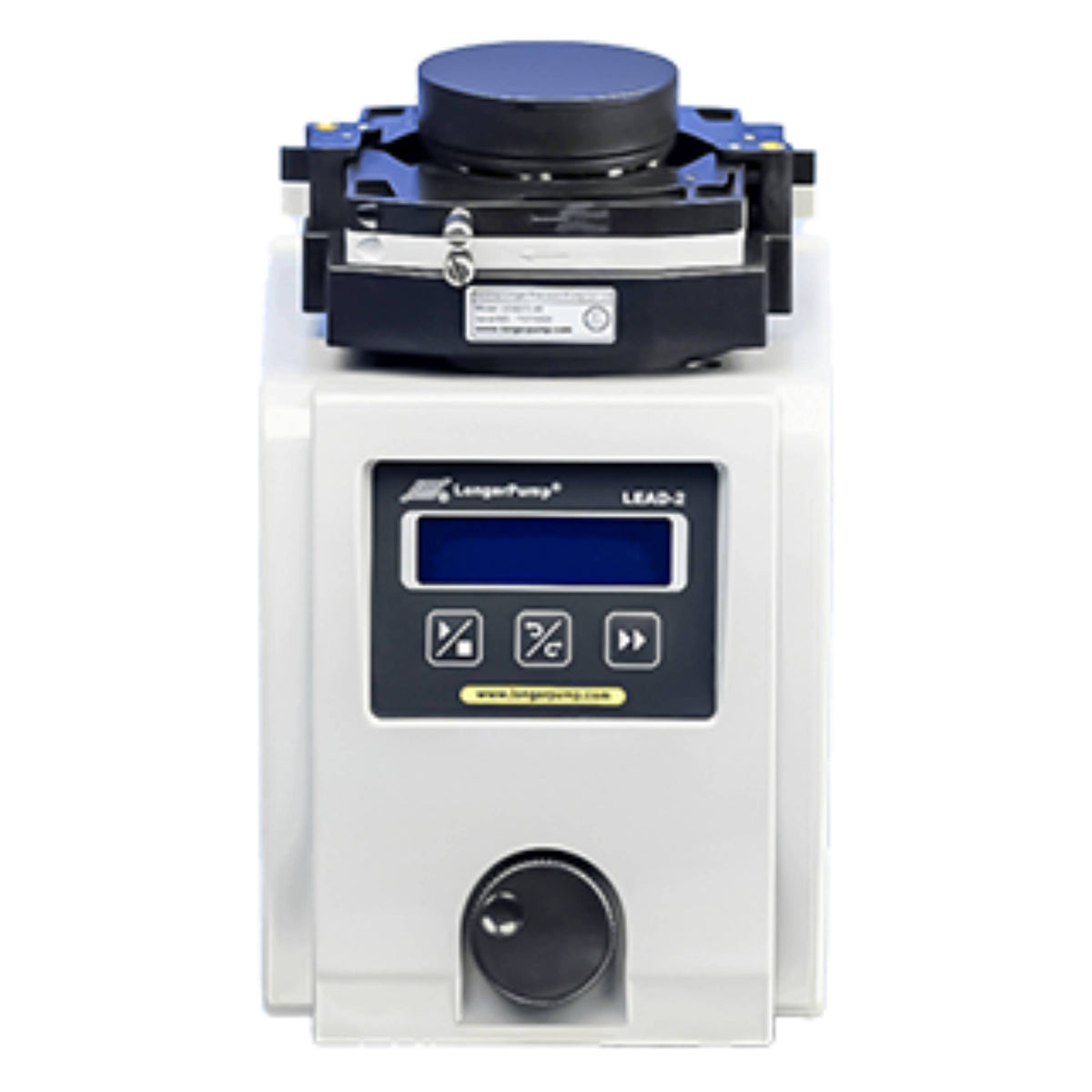

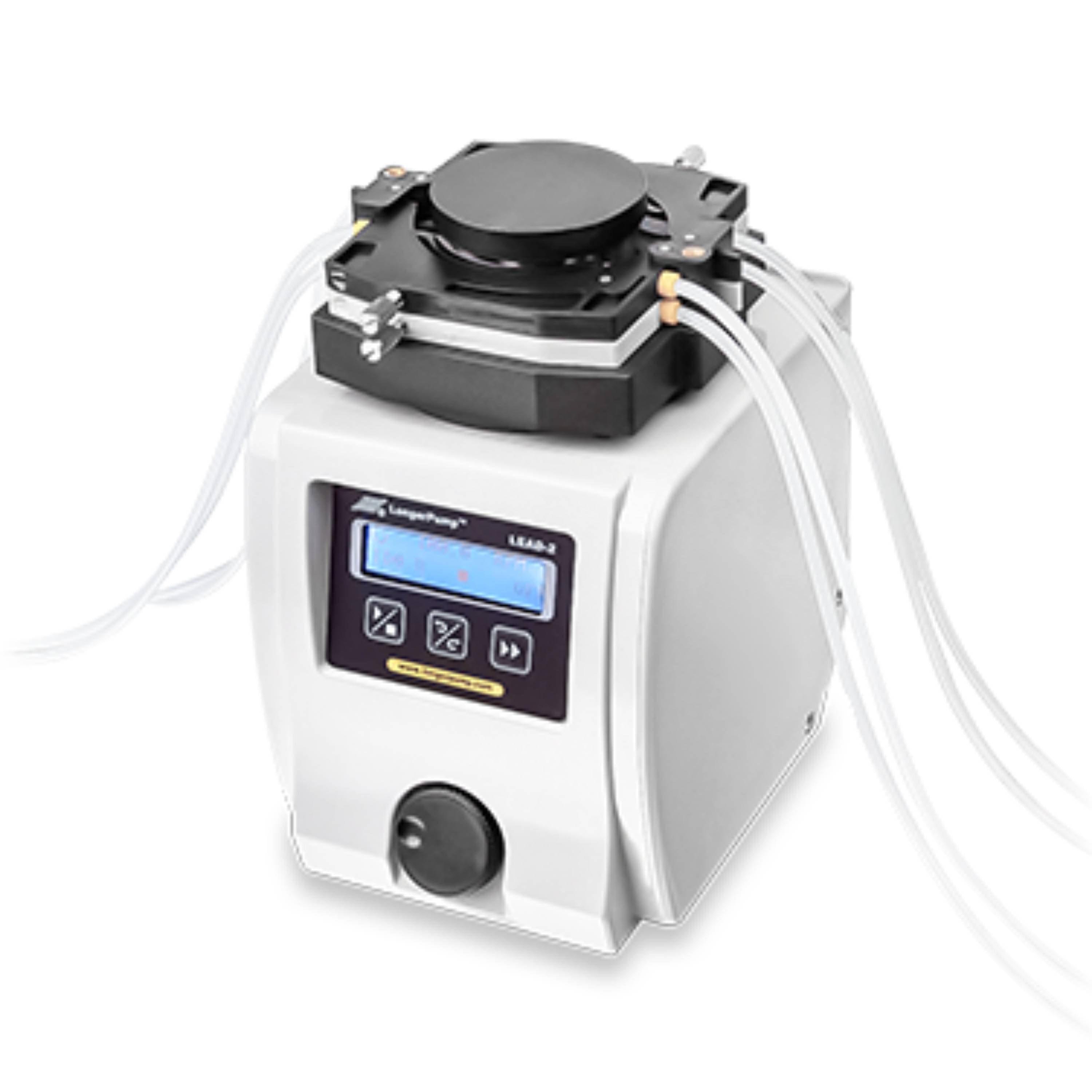

LONGER LEAD-2 Multi-channel Peristaltic Pump
Multi-Channels digital display peristaltic pump LEAD-2 is mainly used in laboratory. The pump adopts top mounted pump head and the channels quantity is up to 8.
Product Features
- Multi-Channels digital display peristaltic pump LEAD-2 is mainly used in laboratory. The pump adopts top mounted pump head and the channels quantity is up to 8.
- LEAD-2 should load LEAD-15 Series pump head which provides flow rate from 0.005 to 300ml/min.
- The pump could be controlled through control panel, footswitch, external control interface and RS485 communication interface.
- Store the running parameter automatically.
- CE certification.
Product Parameters
|
Parameters |
LEAD-2 |
|
Max. flow rate (Single Channel） |
300mL/min |
|
Pump speed |
1rpm - 100rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|
Display |
LCD for speed, flow rate and other parameters |
|
Work mode |
Continuous mode |
|
Control mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration function |
Flow rate calibration |
|
External control |
Control function: start/stop, running direction, speed |
|
Communication control |
RS485 |
|
Dimensions (L x W x H) |
190×162×275(mm) |
|
Power supply |
AC 90-260V/50W, 50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
relative humidity＜80% |
|
IP rating |
IP31 |
|
Weight |
3.5kg |
Technical Specifications
|
Speed |
1rpm-100rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|
Control mode |
Control panel, external signal control and communication |
|
Display |
128×32 graphic LCD for current running status |
|
Calibration function |
Improve flow rate accuracy |
|
External control |
Start/stop, direction and speed control (4-20mA, 0-5V, |
|
Communication interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (L×W×H) |
190×162×275(mm) |
|
Power supply |
AC 90V-260V/50W |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
Compatible Pump Head and Tubing
|
Model |
Pump Head |
Channel/rollers |
Tubing |
Max. Flow Rate |
Weight |
|
LEAD-2-A |
LEAD15-24 |
2/4 |
16# 25# 17# |
300(Single Channel) |
4.36 |
|
LEAD15-44 |
4/4 |
4.42 |
|||
|
LEAD15-48 |
4/8 |
13# 14# Id≤3.17 (mm) |
75(Single Channel) |
4.48 |
|
|
LEAD15-88 |
8/8 |
