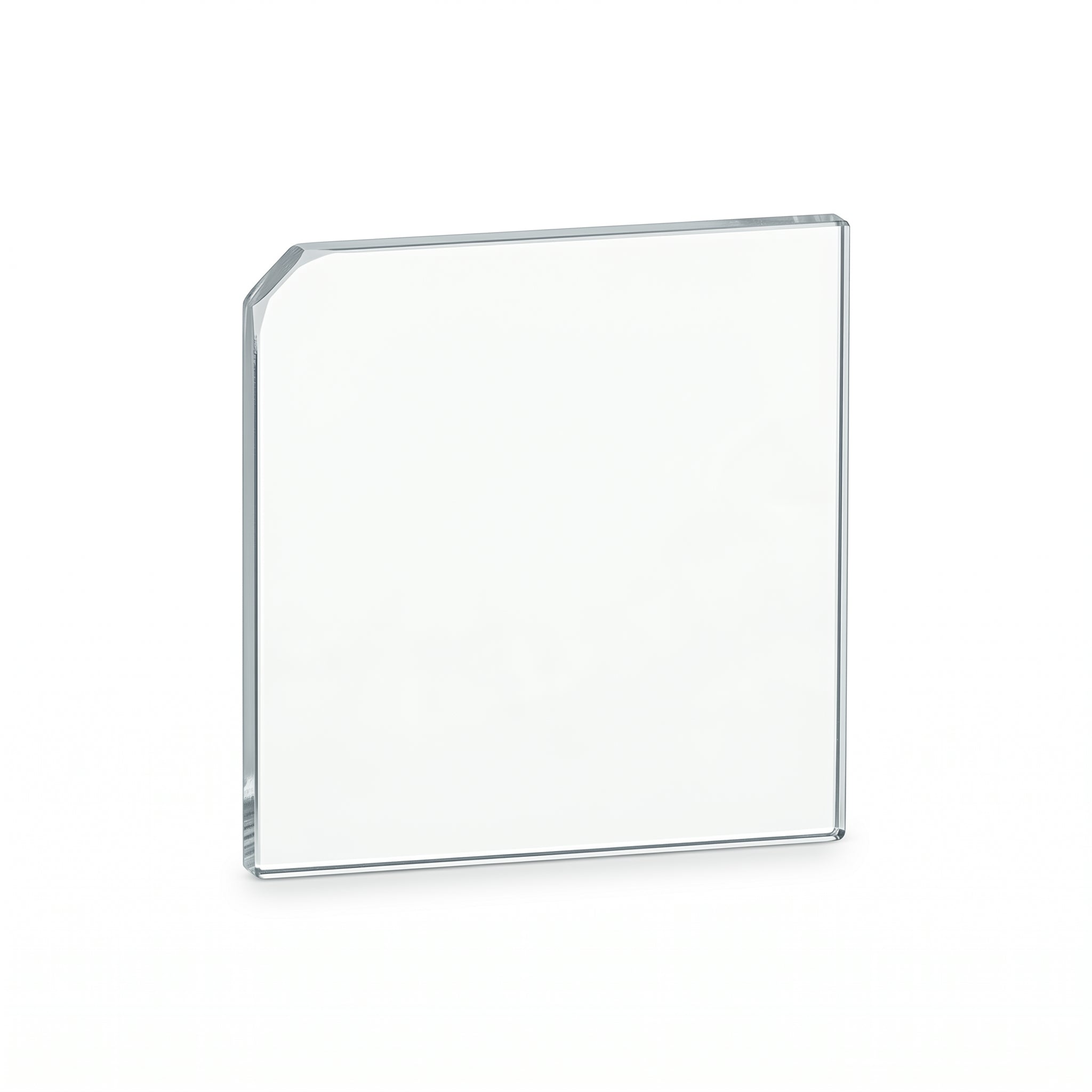

MSE PRO MgAl2O4 Magnesium Aluminate (Spinel) Crystal Substrates

Ready to Ship
SKU: SU0613
Regular price $ 48.95

Still have questions? Ask our experts!

MgAl2O4 magnesium aluminate (spinel) single crystals are widely used in ultrasonic and microwave material and device related epitaxial growth. We also offer polycrystalline spinel optical windows.

Main Parameters:

spinel window technical data

Crystal Structure: Cubic

Lattice parameter: a = 8.085 A

Melting point (°): 2130°C

Density: 3.64 g/cm3

Hardness: 8 Mohs

Available orientations: (100), (111), (110) or poly-crystals

Miscut: +/-0.5 degree

Sizes: 1 inch (25mm) diameter, or 10x10x0.5mm, 10x5x0.5mm, other sizes are available upon request

Polishing: Single side polished (SSP) or double side polished (DSP).

Thermal Expansion Coefficient (TEC): 7.45 x 10-6 /K

Package: Packed with class 100 bags in class 1000 clean room.

Note: Our substrate may have very few scattering spots.
