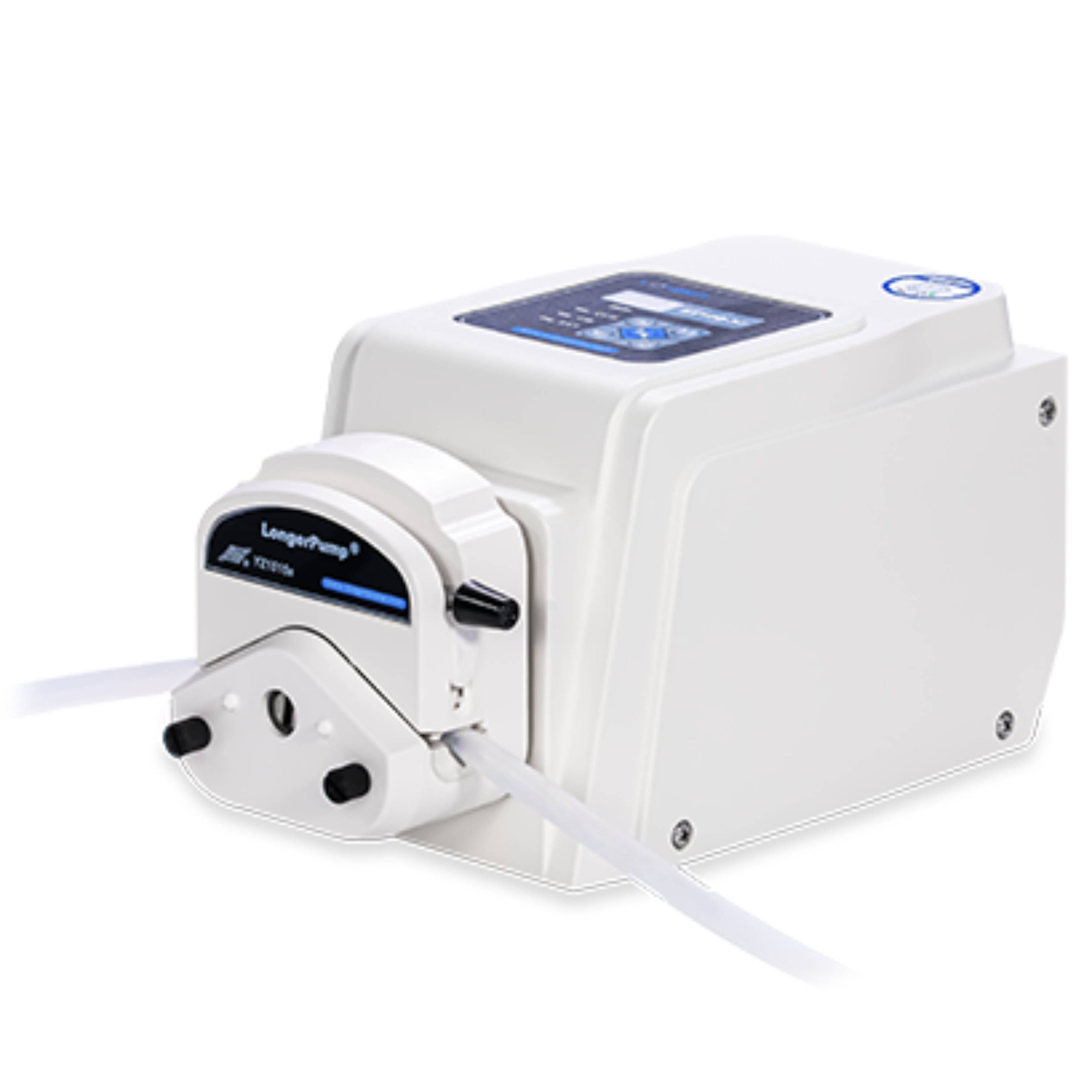

LONGER BT100-3J Basic Peristaltic Pump
Compatible pump heads for BT100-3J are YZ1515x,YZ2515x,YZII15, YZII25, DG, BZ, DG15 and DMD15-13. The pump provides flow rates from 0.0002 to 380 mL/min. The speed can be adjusted manually or automatically through external control interface. Store the running parameter automatically. Easy to operate.
Product Features
- Acceptable pump heads for BT100-3J are YZ1515x,YZ2515x,YZII15, YZII25, DG, BZ, DG15 and DMD15-13.
- The pump delivers flow rates from 0.0002 to 380 mL/min.
- The speed can be adjusted manually or automatically through external control interface.
- Store the running parameter automatically.
- Easy to operate.
- CE marking.
Product Parameters
|
Parameters |
BT100-3J |
|
Max Flow Rate (Single Channel) |
380mL/min |
|
Speed Range |
0.1-100rpm CW/CCW |
|
Speed Resolution |
0.1rpm |
|

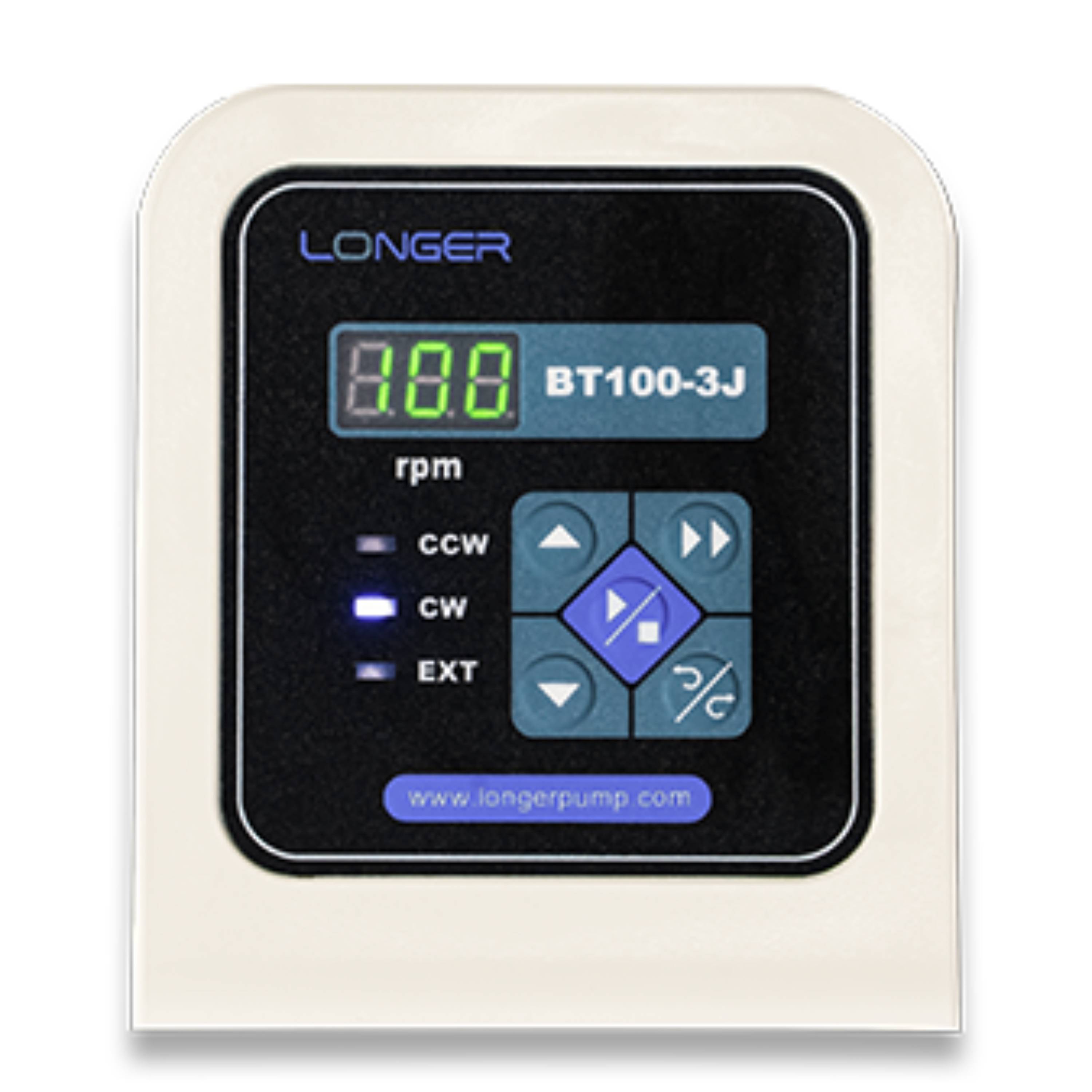

Display |
3-digit LED display for current speed |
|
Work Mode |
Continuous mode |
|
Control Mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration |
N/A |
|
External Control |
start/stop; running direction; speed |
|
Communication Control |
RS485 |
|
Dimensions(L x W x H) |
232×142×149 (mm) |
|
Power Supply |
AC100V-240V/20W 50/60Hz |
|
Operating Temperature |
0 ~ 40℃ |
|
Relative Humidity |
＜80% |
|
IP Rating |
IP20 |
|
Weight |
2.3Kg |
Technical Specifications
|
Speed |
0.1rpm-100rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|
Control mode |
Keypad, external signal control, and communication control are available |
|
Display |
3-digit LED display for current speed, 3LED |
|
Display |
3-digit LED display for current speed, 3 LED indicators for operating status |
|
External control |
Start/stop, direction and speed control (4-20mA, 0-5V,0-10V, 0-10kHz external control module optional) |
|
Communication |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (L×W×H) |
232×142×149(mm) |
|
Power supply |
AC 100V-240V 50/60Hz |
|
Operating temperature |
0 to 40°C |
|
Relative humidity |
<80% |
|
IP rating |
IP20 |
|
Weight |
2.3kg |
Compatible Pump Head and Tubing
|
Model |
Product Code |
Pump Head |
Tubing |
Max Flow Rate (mL/min) |
|
BT100-3J |
05.02.11B |
YZ1515x ( 3-roller, |
13#, 14#, 19#, 16#, |
380 |
|
YZ2515x, YZH25 |
15#, 24# |
270 |
||
|
DMD15-13-B, |
2×13#, 2×14#, 2×19 |
350 |
||
|
BZ15-13-A |
14# |
22 |
||
|
BZ15-13-B |
16# |
80 |
||
|
BZ15-13-C |
25# |
150 |
||
|
BZ15-13-D |
17# |
270 |
||
|
BZ25-13-B |
24# |
250 |
||
|
DG-1, DG-2, |
ID≤3.17mm, Wall |
48 (Single Channel) |
||
|
DG-1, DG-2, |
ID≤3.17mm, Wall |
32 (Single Channel) |
||
|
DG15-24 |
16#, 25#17# |
300 (Single Channel) |
||
|
DG15-28 |
ID≤3.17mm, Wall |
75 (Single Channel) |
||
|
13#, 14# |
75 (Single Channel) |
