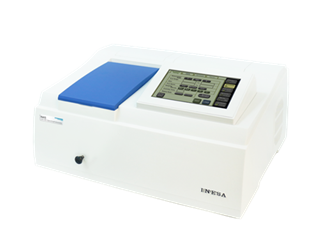

MSE PRO N2 Series VIS Spectrophotometer 325-1100nm
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ N2 Series VIS Spectrophotometer 325-1100nm
MSE Supplies N2 VIS Spectrophotometer, being combined with an ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in conventional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality control departments, colleges and universities and others.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
● 7-inch multi color touch-screen and patented technology to achieve simple and effective human-computer interaction with a clear display of test data.
● A built- in thermal printer (optional) to achieve printout of test results so as to facilitate the formation and retention of data reports.
● A USB communication port and UVWIN8 professional data processing software (optional) to achieve data processing and mapping functions and storage of massive amounts of data files, and to facilitate the secondary development by customers.
● Automatic wavelength setting, fast and accurate.
● Functions such as wavelength scanning (LS4605 model only) Kinetic time scanning, automatic wavelength, linear regression, direct read-out of concentration, peak detection, regular printing and etc.
● Advanced power shut-down protection measures to memorize detected data, regression equation and instrument correction parameters to achieve fast initialization.
● Tungsten lamp with lifetime protection.
Please Contact Us for Available Models and Specifications.
Specifications
| SKU# | LS4604 |
LS4605 |
|
Photometry |
Split Beam |
Split Beam |
| Monochromator Type | Czerny-Turner | Czerny-Turner |
| Focal Length | 160mm | 160mm |
| Wavelength Range | 325-1100nm |
325-1100nm |
| Bandwidth | 2 nm | 2 nm |
| Wavelength Accuracy | ±1 nm | ±1 nm |
| Wavelength Repeatability | ≤0.5nm | ≤0.5nm |
| Wavelength Setting | 7-inch color Touch Screen | 7-inch color Touch Screen |
| Photometric Repeatability |
≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
| Photometric Range |
0.0-200.0% T -0.301-4.000 A 0.000-9999 C |
0.0-200.0% T -0.301-4.000 A 0.000-9999 C |
| Photometric Accuracy |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
| Stray Light | ≤0.1%T(at 360nm NaNo2) |
≤0.1%T(at 360nm NaNo2) |
| Grating | 1200 lines/mm | 1200 lines/mm |
| Noise |
100%（T）noise≤0.2%(T) 0%（T）noise≤0.1%(T) |
100%（T）noise≤0.2%(T) 0%（T）noise≤0.1%(T) |
| Detector | Silicon Photocell |
Silicon Photocell |
| Thermal Printer | Optional | Built-in |
| Wavelength Scanning | n/a |
Yes Scanning Speed: Fast-Medium-Slow Baseline:≤±0.002 A(335-1090nm) |
| Power Requirements | AC220V±22V 50Hz±1Hz, 100W |
AC220V±22V 50Hz±1Hz, 100W |
| Dimension | 630mm X 535mm X 405mm | 630mm X 535mm X 405mm |
| Weight | 21 kg | 16.5 kg |
Standard Accessories
| Item | Description | Quantity |
| 1 | Operation manual | 1 Set |
| 2 |
Glass cuvette 1cm |
4 Pcs |
| 3 |
Power cable |
1 Pcs |
| 4 |
Fuse |
2 Pcs |
| 5 |
Cuvette holder 10mm |
1 Pcs |
Optional Accessories
- UV WIN8 Station Pro Software
- Cuvette holder 50,100mm
- Cuvettes 20, 30, 50, 100mm
