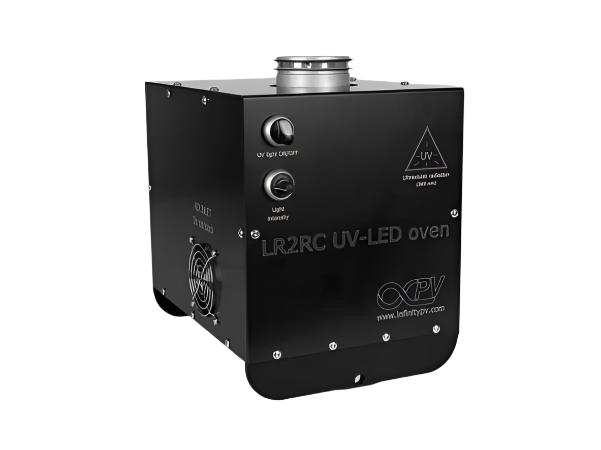

InfinityPV Laboratory Roll-to-Roll Coater UV-LED Oven

The standard configuration operates at a 365 nm wavelength, but customized wavelengths can be installed to meet specific needs. The intensity of the UV light is easily adjusted via a potentiometer on the front panel. For added versatility, the UV-LED oven also offers an inert gas option, allowing for precise UV curing under controlled, oxygen-free conditions.

Modular Customization with the Laboratory Roll-to-Roll Coater

The Laboratory Roll-to-Roll Coater is a high-precision, compact solution for processing thin functional films in both lab and small pilot-scale environments. Its versatile modular design supports slot-die coating, slurry coating, and flexographic printing, and accommodates various coating components including slot-die heads, laminators, air knives, edge guides, plasma and corona treatment systems, and drying and curing ovens. The Laboratory Roll-to-Roll Coater can fit seamlessly into existing lab spaces, gloveboxes, or fume hoods without additional infrastructure. Capable of handling hundreds of meters of foil, it provides scalability and efficiency for applications such as thin film batteries, fuel cells, printed solar cells, OLEDs, sensors, adhesives. Designed for user convenience and built to international safety standards, the Laboratory Roll-to-Roll Coater is a flexible and economical choice for advancing thin-film technology.

Key Features

• Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.
• Customizable: Choose from a variety of lengths and widths, with numerous components available.
• Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.
• Modular Drying/Curing System: Accommodates various drying and curing methods.
• Software Control Option: Advanced control options for precision and repeatability.
• Web Tension Control: Ensures consistent quality across runs.
• CE Certified - CSA/UL Compliant: Meets international safety standards.

Technical Specifications

• Operating Power: Single phase (240VAC) for smaller models; three-phase (400VAC) for larger models.
• Drying/Curing Length: From 250 mm (LR2RC500) to 1250 mm (LR2RC1500).
• Web Width: Up to 200 mm (standard), up to 310 mm (wide models).
• Web Speed: 0.05-2.8 m/min (forward and reverse).
• Spindles: Automatic compressed air spindles for 3-inch core diameters, adjustable cones for smaller cores in LR2RC500.

Applications

• Batteries
• Fuel Cells
• Printed Solar Cells (OPV, Perovskite, DSSC, Tandem)
• Adhesives and Sealants
• Medical Devices (Biocompatible and Drug-eluting Layers)
• Packaging Materials
