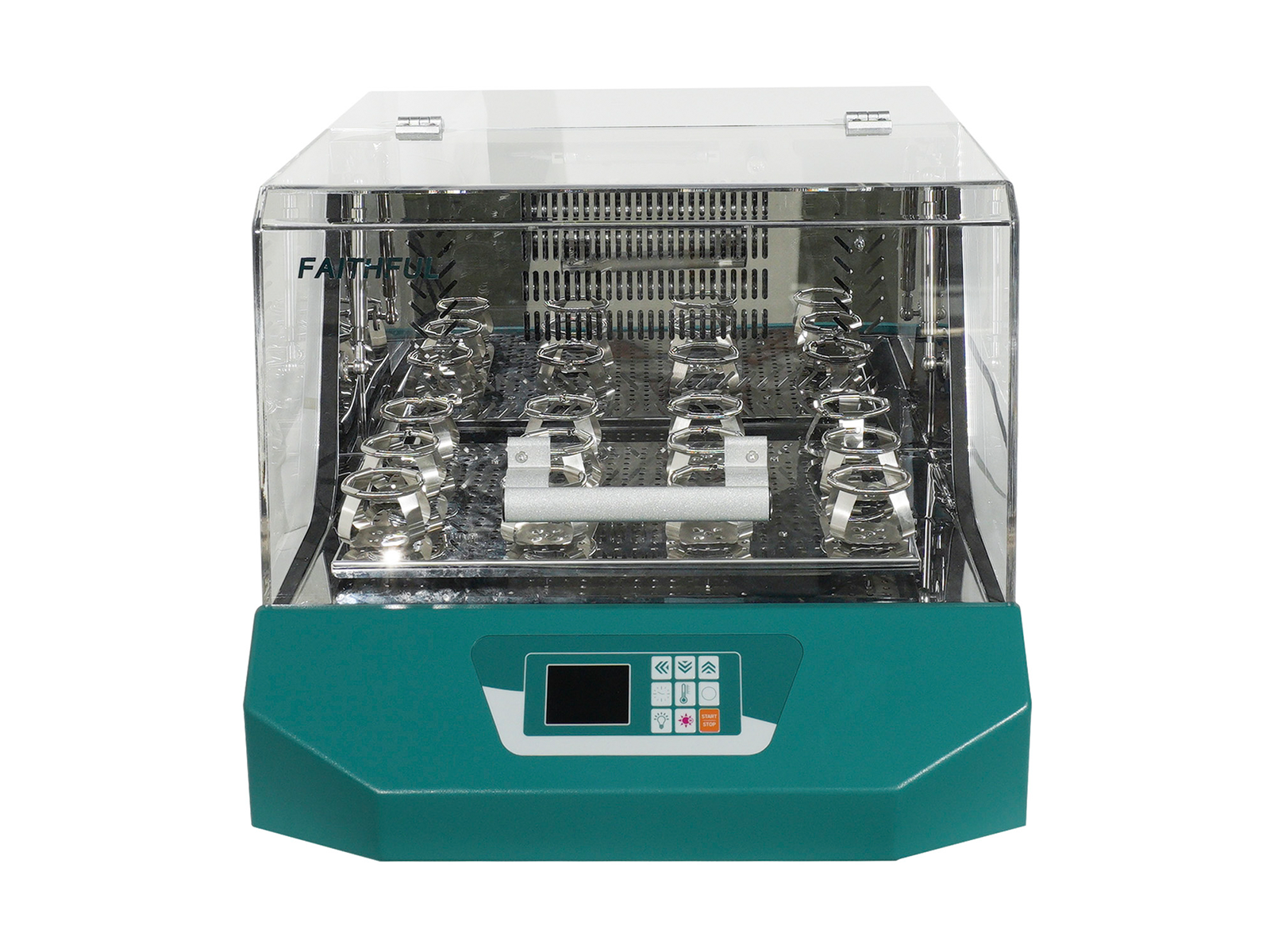

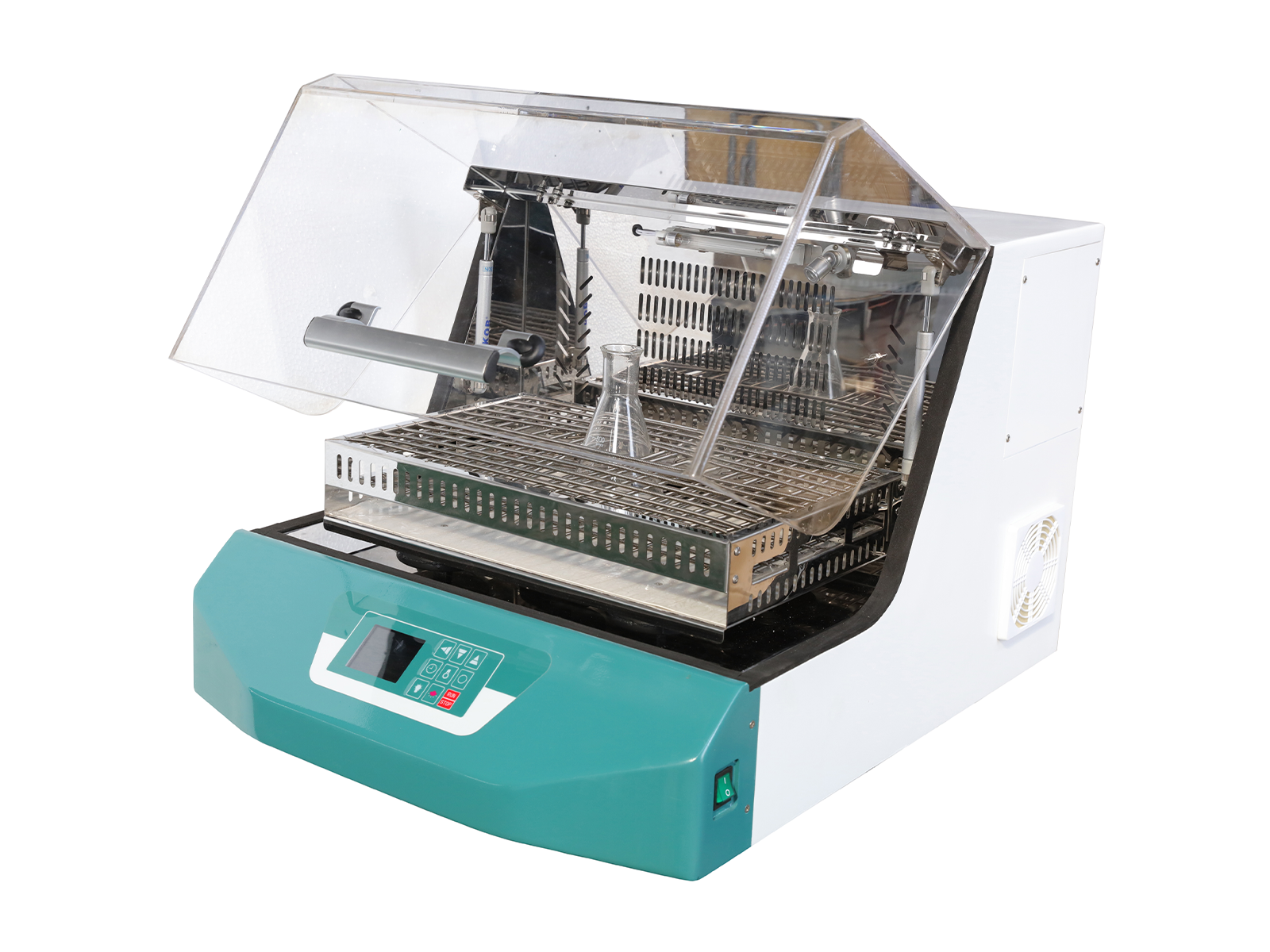

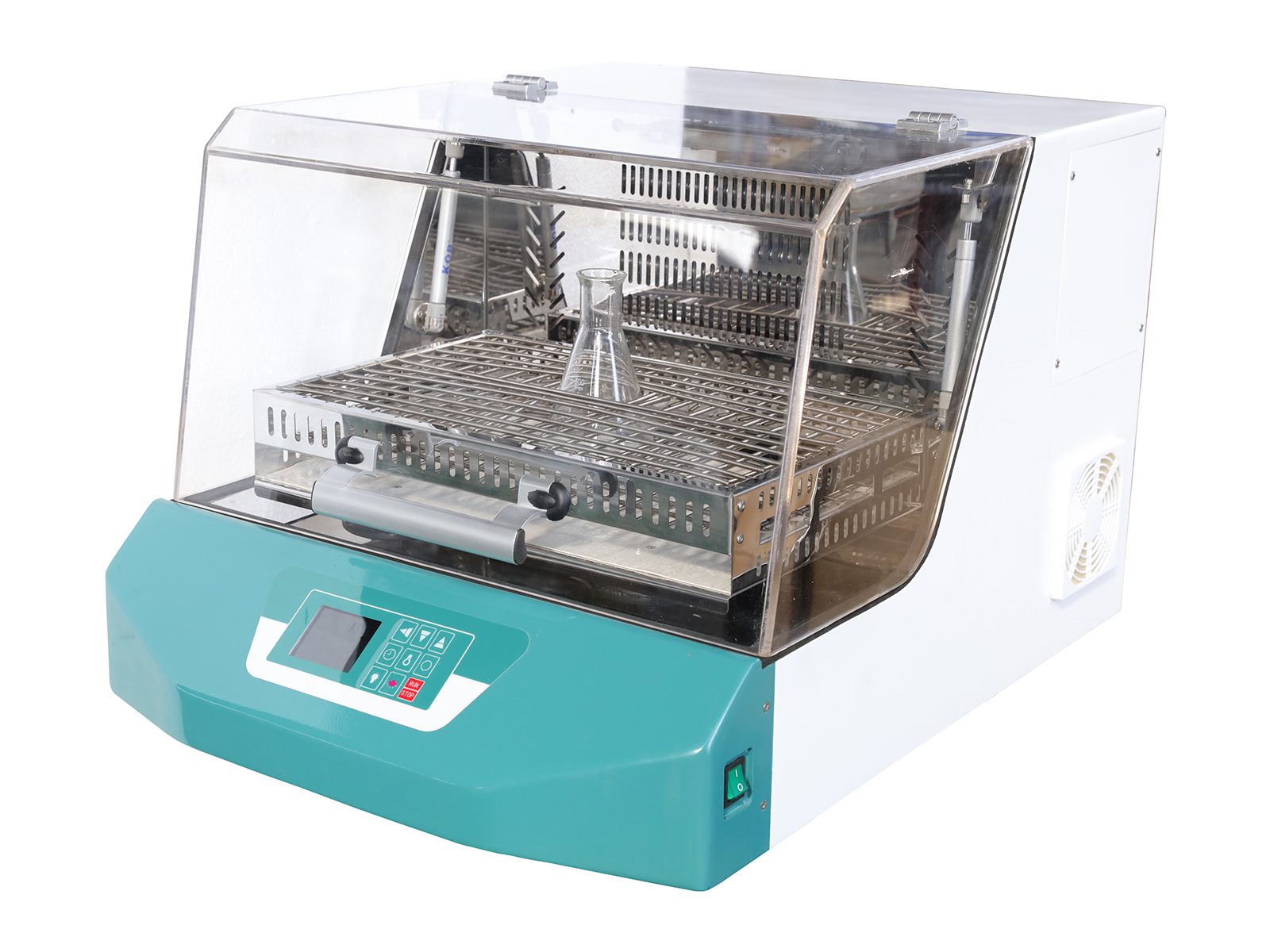

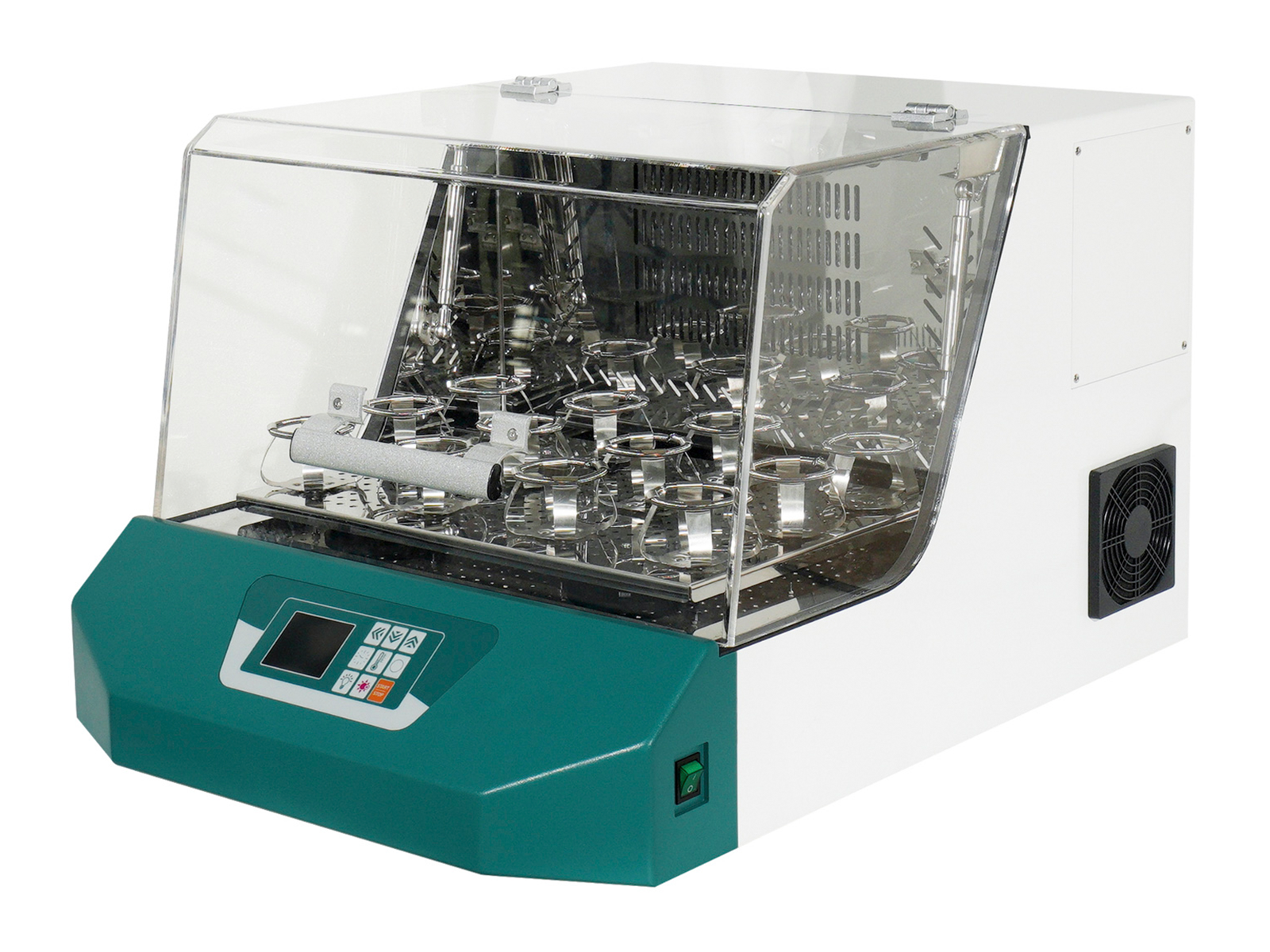

MSE PRO™ 50L Shaking Incubator with Universal Spring Tray
The MSE PRO Constant Temperature Shaking Incubator is a compact and reliable benchtop unit designed for precise temperature and oscillation control. Ideal for microbial culture, biochemical reactions, and general lab shaking applications, it features smart microcomputer controls, real-time monitoring, and a user-friendly interface, making it a vital tool for efficient and stable culture environments.
- Real-Time Monitoring: Large-screen LCD shows accurate temperature, speed, and timing data with an intuitive operation interface.
- Automatic Recovery System: Microcomputer controls with power-off protection resume operation automatically after power interruptions.
- Efficient Air Circulation: Unique air duct breeza system ensures uniform temperature distribution and enhanced culture performance.
- Precise Oscillation Control: Intelligent brushless DC motor with high-speed accuracy and safety features like auto-lock and anti-splash slow start.
-
Practical and Safe Design: UV lamp cut-off when the door is open and waterproof studio base protects against accidental spills.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Shaking Incubators. Please contact us for more information.
Specifications:
| SKU# |
MA4321 |
| Shaking Mode |
Cyclotron Oscillation |
| Function |
Amplitude |
Ф20mm |
| Temp. Resolution |
0.1℃ |
Temp. Motion
|
±0.1℃ |
| Temp. Uniformity |
±1℃ |
Temp. Range
|
RT+5~65℃ |
| Rotary Speed |
30~300rpm |
| Rotary Speed Precision |
±1rpm |
| Structure |
Chamber Material |
Mirror Stainless Steel |
| Outer Shell |
ABS |
| Observation Window Material |
Imported resin |
| Thermal Insulation Material |
Polyurethane |
| Cooling System |
No |
| Coolant |
No |
| Heater |
Stainless steel heating tube |
| Drive Mode |
Three-axis level |
| Oscillating Plate |
Spring Wire Rack |
| Air Circulation Mode |
Horizontal convection |
| Power Rating |
0.6kW |
| Controller |
Temp. control mode |
LCD PID intelligent control |
| Cyclotron Control Mode |
| Setting Mode |
Automatic changes of rotation direction
|
| Temp. Display Mode |
Touch button setting |
| Speed Display Mode |
LCD display |
| Timer |
0~9999min |
| Operation Function |
Fixed value operation、timing function, bidirectional automatic switchover、auto stop quick stop start |
| Temperature Sensor |
PT100 |
| Speed Sensor |
Hoare |
| Gating System |
Yes |
| Additional Function |
Deviation correction, menu keys locked, power-off memory |
| Safety device |
over temperature alarm, menu locked, gating system ,power-off protection , plugging turn protection |
| Specification |
Inner Chamber size (W*L*H) |
455*380*290 mm |
| Exterior size (W*L*H) |
500*640*480 mm |
| Shelf Size |
380*320 mm |
Max capacity of Shelf for single specification(ml/pc)
|
100ml*16/250*9/500*4/1000*4 |
Number of flask clamp as standard (ml/pc)
|
250*8 |
| Inside Volume |
50L |
| Shelf Load Bearing |
≤10kg/layer |
| Shelf Layer |
1 |
Power Supply (50/60Hz) Current Rating
|
AC220V/2.5A |
| Net Weight |
44 kg |
| Optional Flask Clip Tray Wireless short message alarm system |
100ml* 16/250ml*9/500ml*5/1000ml*4 |
