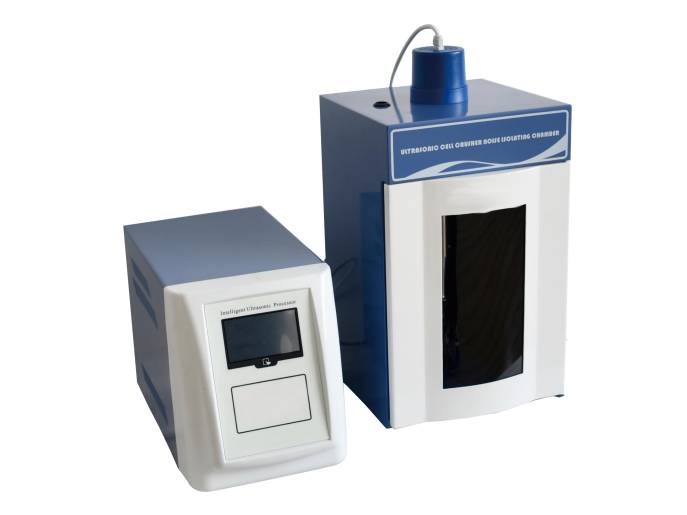

MSE PRO™ Ultrasonic Cell Disrupter, 1.5-150W Consumption

The MSE PRO™ Ultrasonic Cell Disrupter, 1.5-150W Consumption is an advanced laboratory instrument widely applicable across various scientific fields, including biology, chemistry, microbiology, medical science, pharmacy, and more. Designed for precision, it features an LCD touch screen display for seamless control and monitoring. With a storage capacity of 20 program data groups, it ensures convenience for repetitive tasks. The over-temperature protection system and automatic tracking of frequency with fault alarms provide a safe, efficient, and reliable working environment

  • Versatile Applications: Suitable for multiple disciplines like biology, chemistry, medical science, and teaching, making it a must-have for labs and research facilities.
  • User-Friendly Touch Screen Display: Equipped with an LCD touch screen that offers easy control and real-time monitoring.
  • Program Storage Convenience: Save and access up to 20 groups of program data, streamlining workflow for recurring tasks.
  • Over-Temperature Protection: Built-in monitoring ensures safety and prevents overheating during operations.
  • Automatic Fault Detection: Advanced functions include frequency tracking and automatic fault alarms for enhanced reliability and efficiency.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Ultrasonic Cell Disrupters. Please contact us for more information.

Specifications:

SKU# BB0515
Frequency (KHz) 20-25
Crushing Capacity(ml) 0.1-150
Standard Amplitude-change Pole Ø (mm) 6
Optional Amplitude-change Pole Ø (mm) 2, 3, 6, 8,10
Power Supply AC110V (Optional), AC220V (Standard)
Consumption (W) 1.5-150

Technical Parameters of others available Ultrasonic Cell Disrupter:

Model BB0515/BB0516 BB0517/BB0518 BB0519/BB0520 BB0521/BB0522 BB0524 BB0525/BB526 BB0527/BB0528 BB0529/BB0530 BB0531/BB0532
Frequency (KHz) 20–25 20–25 20–25 20–25 20–25 19.5–20.5 19.5–20.5 19.5–20.5 19.5–20.5
Crushing Capacity (ml) 0.1–150 0.1–300 0.1–400 0.1–500 0.1–700 1–1000 10–1200 1–1200 50–2000
Standard Amplitude-change Pole Ø (mm) 6 6 6 6 6 20 22 22 25
Optional Amplitude-change Pole Ø (mm) 2, 3, 6, 8, 10 2, 3, 6, 10, 12 2, 3, 6, 10, 12 2, 3, 6, 10, 12 2, 3, 6, 8, 10, 12 3, 6, 8, 10, 12, 15, 20, 22, 25 3, 6, 8, 10, 12, 15, 20, 22, 25 6, 8, 10, 15, 20, 22, 25 6, 8, 10, 15, 20, 22, 25
Ultrasonic Power (W1–100%) 1.5~150 2.5~250 5~500 6.5~650 10~1000 12~1200 15~1500 18~1800 20~2000
Power Supply AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional)
Package Size (WDH) 350×305×550mm (Acoustic chamber) / 470×305×430mm (Main body)
Gross Weight 26kg 29kg


Optional Blocks:

Size Crushing Capacity Recommended power ratio Frequency (KHz) BB0515
φ2 mm 0.1-5 ml 1-35% 20-25 ✓
φ3 mm 3-10 ml 1-45% 20-25 ✓
φ5 mm 5-100 ml 1-60% 20-25 x
φ6 mm 10-100 ml 1-70% 20-25 ✓
φ8 mm 20-200 ml 1-85% 20-25 ✓
φ10 mm 30-300 ml 1-90% 20-25 ✓
φ10 mm 30-300 ml 1-60% 19.5-20.5 x
φ12 mm 50-600 ml 10-90% 20-25 x
φ15 mm 200-750 ml 10-95% 20-25 x
φ15 mm 50-500 ml 5-80% 19.5-20.5 x
φ20 mm 100-1000 ml 10-90% 19.5-20.5 x
φ22 mm 200-1200 ml 20-95% 19.5-20.5 x
φ25 mm 300-1500 ml 30-95% 19.5-20.5 x
