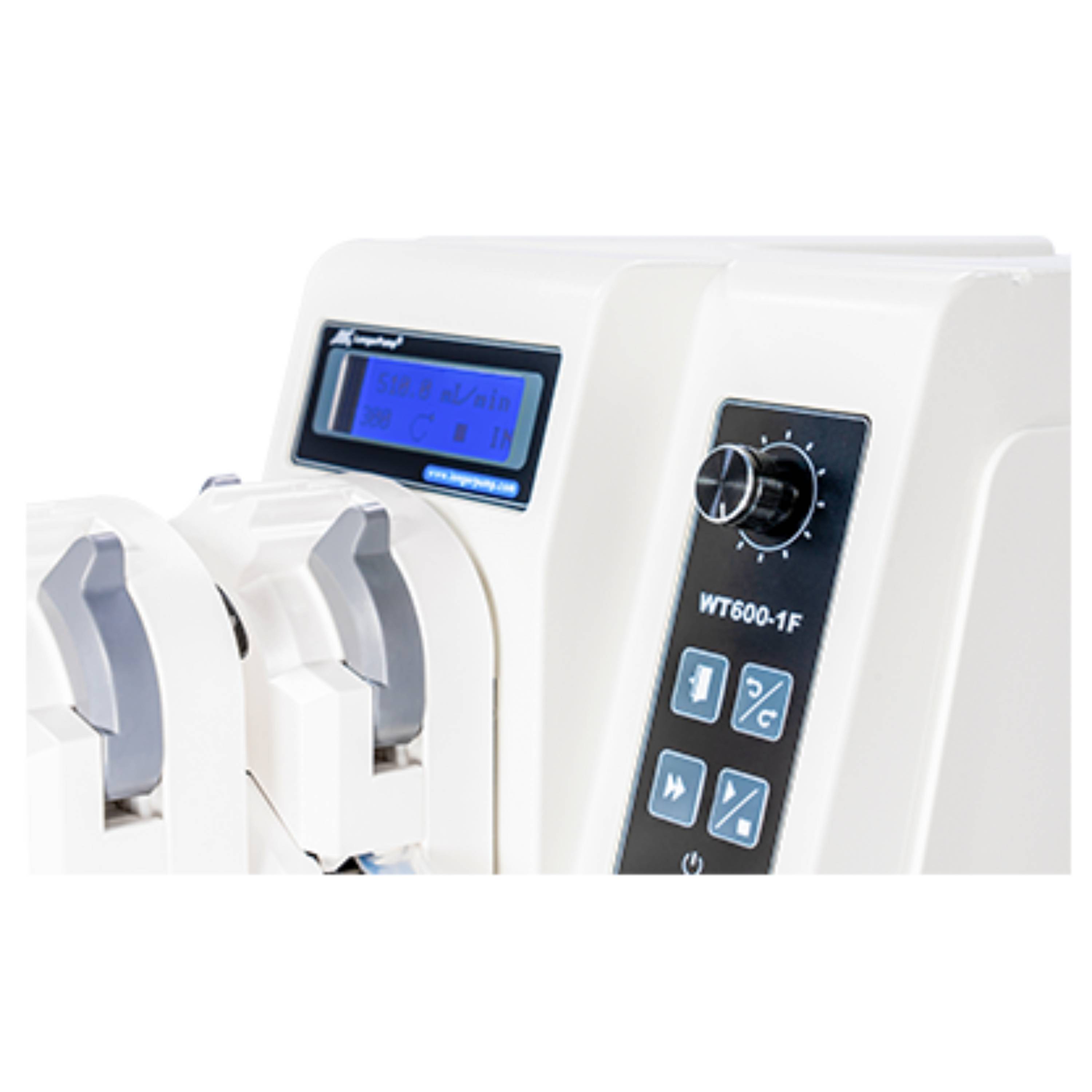

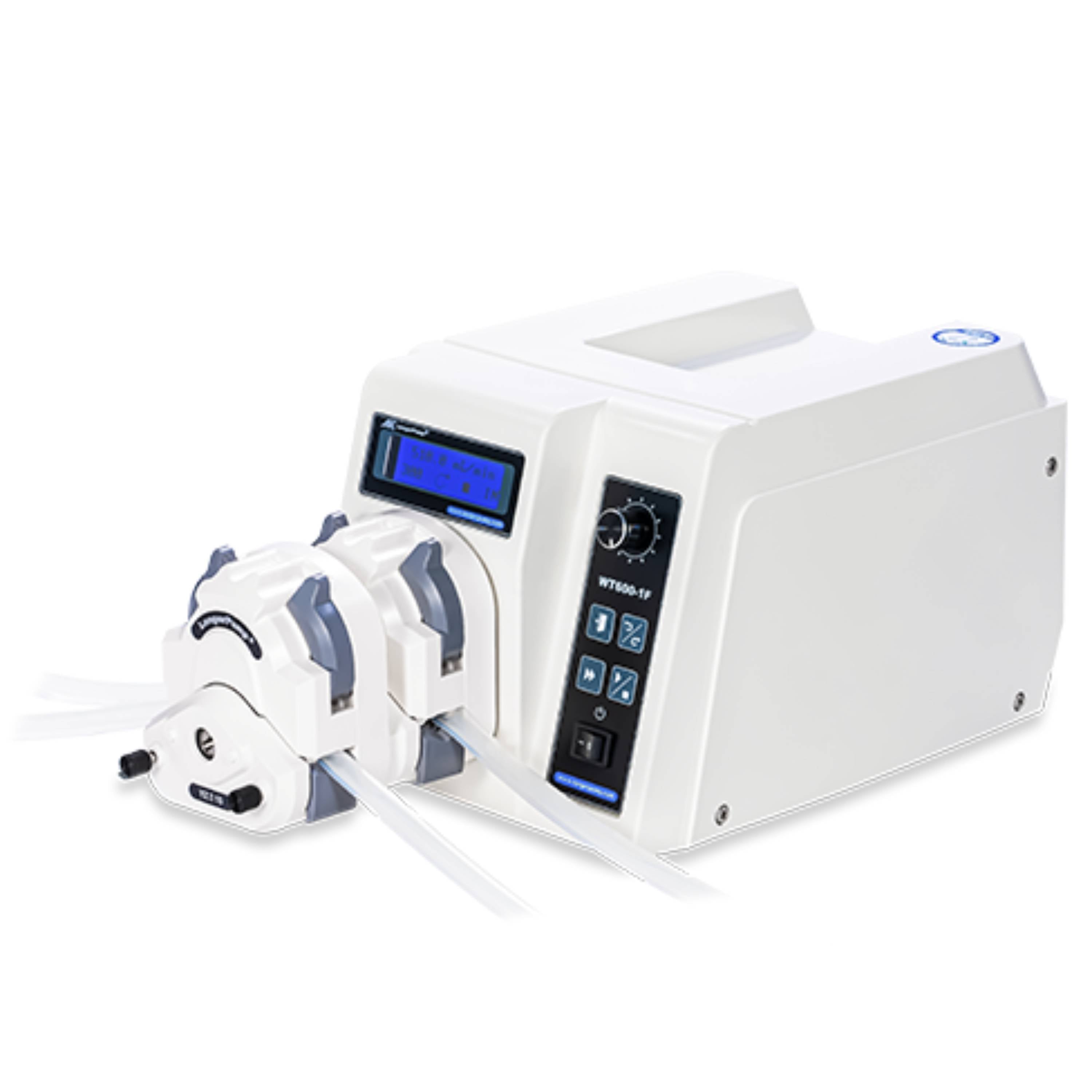

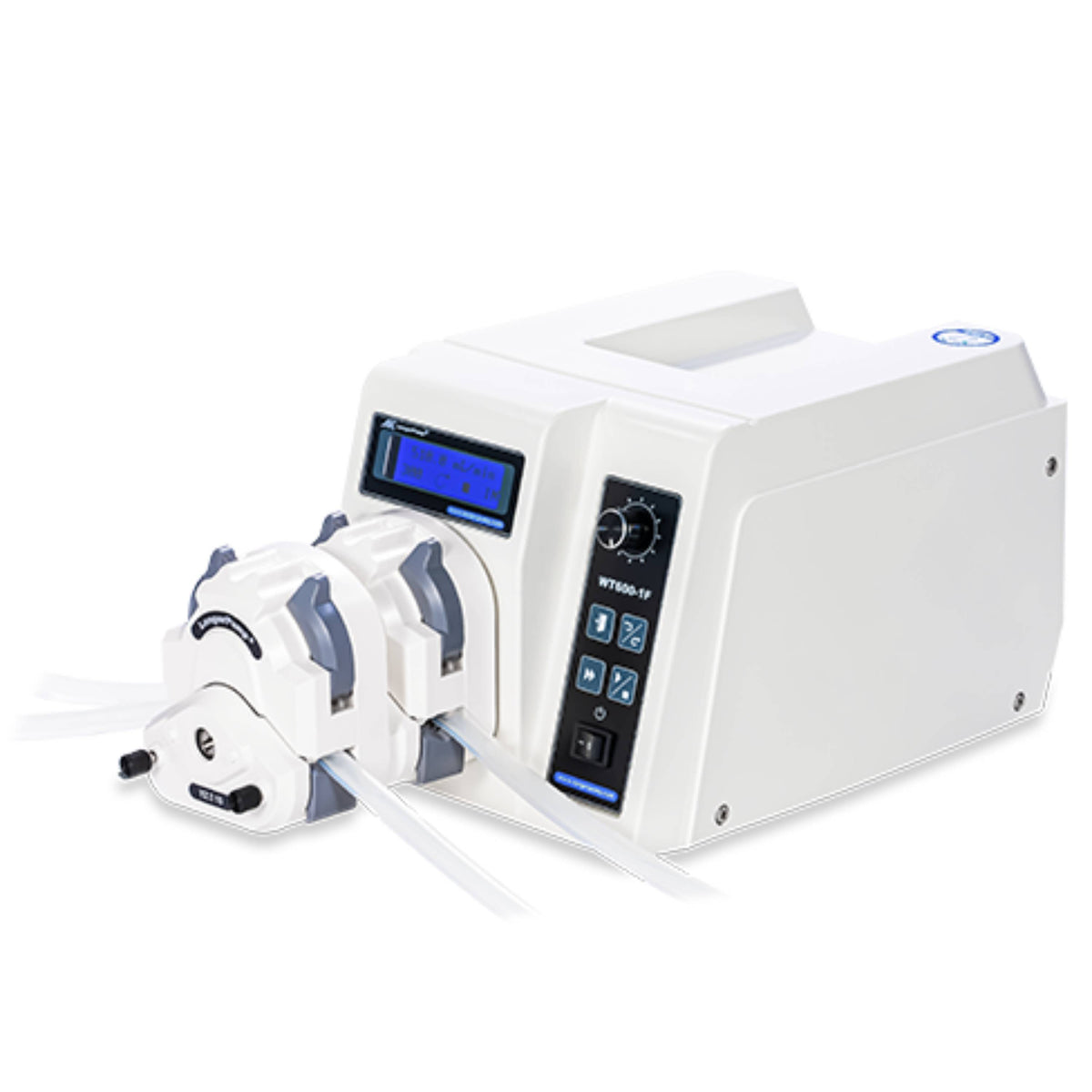

LONGER WT600-1F Peristaltic Filling Pump for Dispensing Function
Dispensing peristaltic pump WT600-1F is mainly used in laboratory and smaller batch production. The pump adopts DC brushless motor which drives multi pump head and up to 3 channels.
Product Features
- Dispensing peristaltic pump WT600-1F is mainly used in laboratory and smaller batch production.
- The pump adopts DC brushless motor which drives multi pump head and up to 3 channels.
- The pump could complete the dispensing function at desired volume. The calibration function ensures the high accuracy and precision. Easy to use and more convenient.
- Acceptable pump heads are 3*YZ1515x, 3*YZII15, 3*YZ2515x, 2*YZII25, 2*DMD15, DG15 series and KZ25.
- The pump delivers flow rate from 0.7 to 6000ml/min. The LCD could display the parameters and running state. The pump could be controlled through control panel, external control interface and RS485 communication interface.
- Store the running parameter automatically.
- CE certification.
Product Parameters
|
Parameters |
WT600-1F |
|
Max. flow rate (Single Channel) |
6000ml/min |
|
Pump speed |
10rpm-600rpm，CW/CCW |
|
Speed resolution |
1rpm |
|
Display |
LCD for speed, flow rate, volume and other parameters |
|
Work mode |
Continuous mode; Multi-dispensing mode |
|
Control mode |
Keypad control; Footswitch control; External control; |
|
Calibration function |
Flow rate calibration; Volume calibration |
|
External control |
Control function: start/stop, running direction, speed; |
|
Communication control |
RS485 |
|
Dimensions (L x W x H) |
285×207×180(mm) |
|
Power supply |
AC 110V±20%/140W，AC 220V±20%/140W，50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
relative humidity＜80% |
|
IP rating |
IP31 |
|
Weight |
5.2kg |
Technical Specifications
|
Speed |
10rpm-600rpm, CW/CCW |
|
Speed resolution |
1rpm |
|
Control mode |
Control panel, external signal control and |
|
Display |
LCD for running status |
|
Work mode |
Flowrate mode and dispensing mode |
|
Flowrate calibration |
Improve flow rate accuracy |
|
Dispensing volume |
0.1mL-99.9L |
|
Dispensing calibration |
Calibrate dispensing volume to improve accuracy |
|
Copy number |
1 to 9999, “O”means unlimited cycle |
|
Pause time |
0.1s to 99.9min, resolution is 0.1s |
|
Back suction circle |
0 to 9.9 circle, resolution is 0.1 circle |
|
External control |
Start/stop, direction and speed control (4-20mA, 0-5V, |
|
Speed output |
166.7Hz-10kHz corresponding to 10-600rpm |
|
Start/stop output |
OC gate signal |
|
Direction output |
OC gate signal |
|
Communication interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (L×W×H) |
285×207×180(mm) |
|
Power supply |
AC 220V±20%/140W or AC 110V±20%/140W |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
|
Weight |
5.2kg |
Compatible Pump Head and Tubing
| Model (Product code, Power supply) |
Pump Head | Tubing | Flow Rate(mL/min) | Weight (kg) |
| WT600-1F-A (05.02.65A, AC220V) WT600-1F-B (05.02.65B, AC110V) |
(1, 2, 3)× YZ1515x | 13# 14# 19# 16# 25# 17 # 18# |
0.7-2200(Single Channel) | 5.6-6.4 |
| (1, 2, 3)× YZII15 | ||||
| (1, 2, 3)× YZ2515x | 15# 24# | 17-1600(Single Channel) | ||
| (1, 2)× YZII25 | 15# 24# 35# 36# | 17-3000(Single Channel) | 5.6-6.0 | |
| DG15-24 | 16# 25# 17# | 8-1800(Single Channel) | 6.0 | |
| (1, 2)× DMD15-13-B, DMD15-13-D | 13# 14# 19# 16# 25# | 1.5-2070(Single Channel) | 5.6-6.0 | |
| KZ25 | 15# 24# 35# 36# | 34-6000 | 6.0 |
