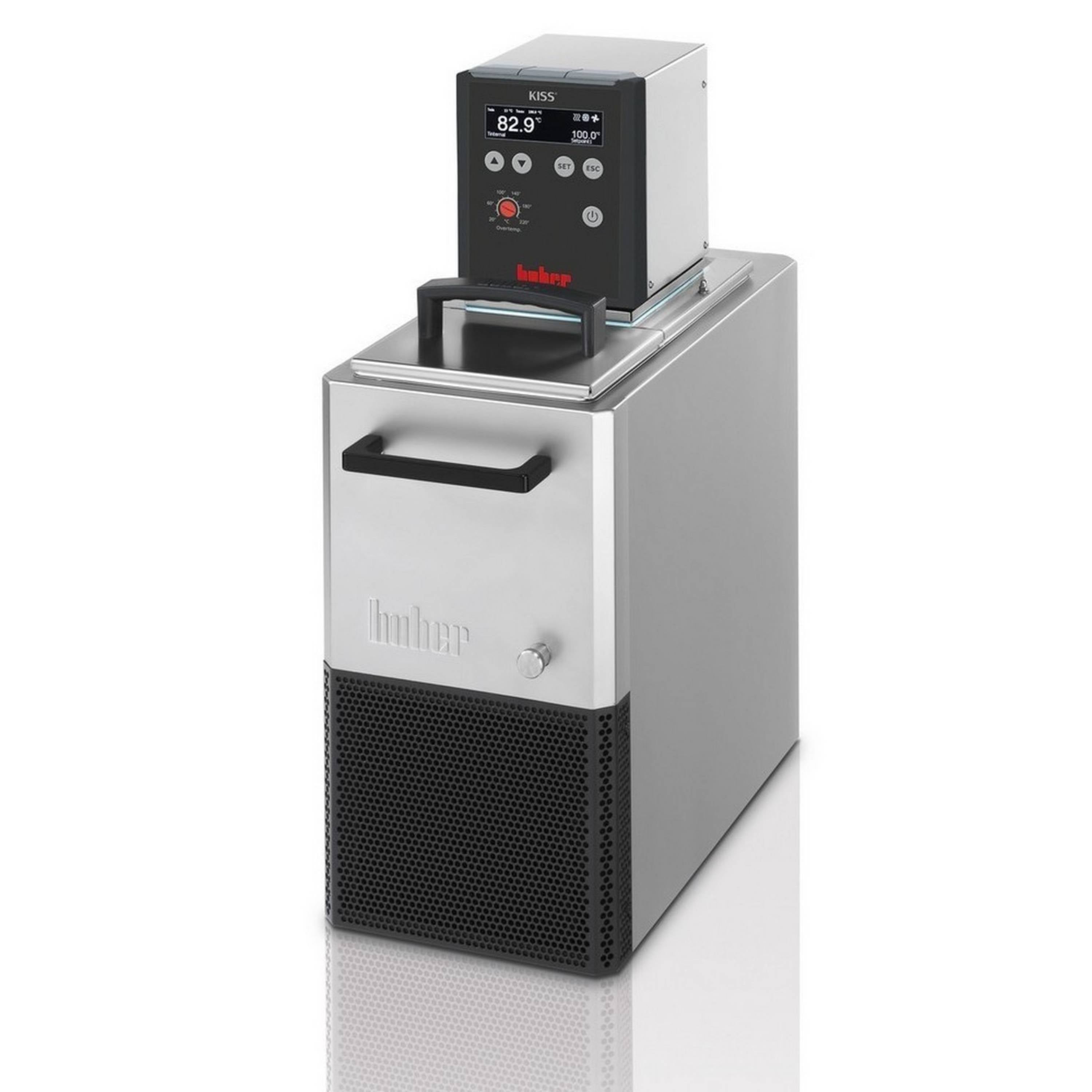

Huber Cooling Bath Bhermostat KISS K6
Couldn't load pickup availability
Still have questions? Ask our experts!
Huber Cooling Bath Bhermostat KISS K6
Performance Characteristics
Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyzes, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfill the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.
Functions overview
- KISS temperature controller
- Bright, large OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, Tmin, Tmax and actual temperature
- Status displays for pump, cooling and heating
- Overtemperature and low-level protection
- Safety class III/FL (DIN 12876)
- USB and RS232 interfaces
- AutoStart function for power failure
- 3 color versions available: gray (standard), blue, red
Technical Data
|
General & Temperature Control |
|
|
Temperature range |
-25...200 °C |
|
Temperature stability |
±0,05 K |
|
Temperature display |
OLED Display |
|
Alarm message |
optic, acoustic |
|
Controller |
KISS |
|
Safety class |
III / FL |
|
Protection class |
IP20 |
|
Dimensions (W x D x H) |
210 x 400 x 546 mm |
|
Weight, net |
25 kg |
|
Heating / cooling capacity |
|
|
Heating capacity |
1,5 kW |
|
Cooling capacity |
20 0 -10 -20 °C |
|
0,2 0,15 0,1 0,05 kW |
|
|
Refrigeration machine |
air-cooled, natural refrigerant |
|
Refrigerant 1st stage |
R-290 (A3, H220) |
|
Refrigerant quantity 1st stage |
0,047 kg |
|
Circulation pump |
|
|
Delivery capacity pressure pump max. |
14 l/min; 0,25 bar |
|
Delivery capacity suction pump max. |
10,5 l/min; 0,17 bar |
|
Pump connection |
M16x1 AG male |
|
Pump speed adjustable |
no |
|
Pump characteristics |
Pressure and suction pump, speed not variable |
|
Connections |
|
|
Interface digital |
USB (Device), RS232 Interface |
|
Operating data |
|
|
Permissible ambient temperature |
5...40 °C |
|
Bath opening WxD/BD |
140 x 120 / 150 |
|
Bath volume |
4,5 l |
|
Filling volume min. |
2 l |
|
Power supply |
110-120V 1~ 50/60Hz |
|
Current consumption max. |
15 + 3,2 A |
