Cleaver Scientific Comet Assay Electrophoresis Tanks – COM Series

Cleaver Scientific Comet Assay Electrophoresis Tanks – COM Series

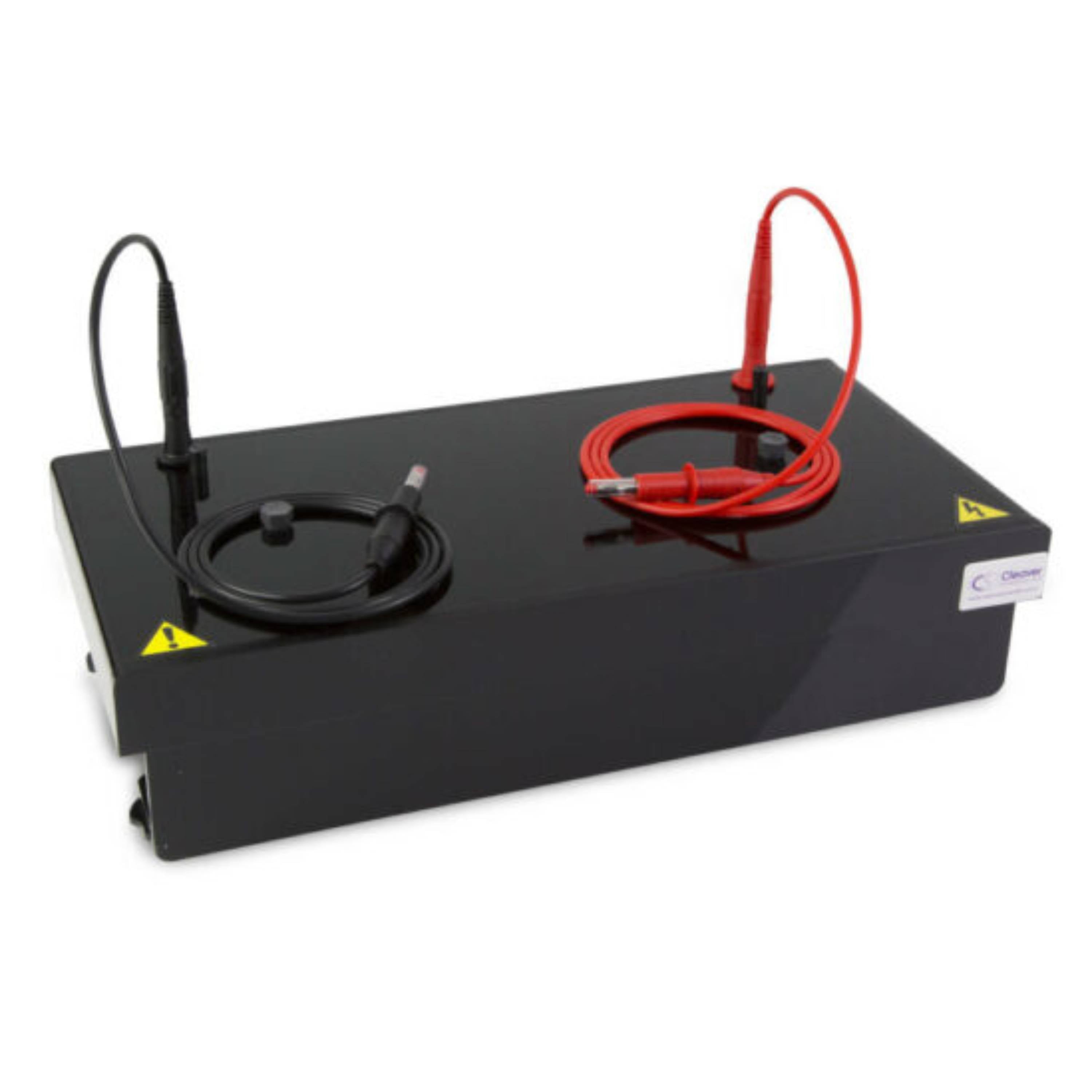

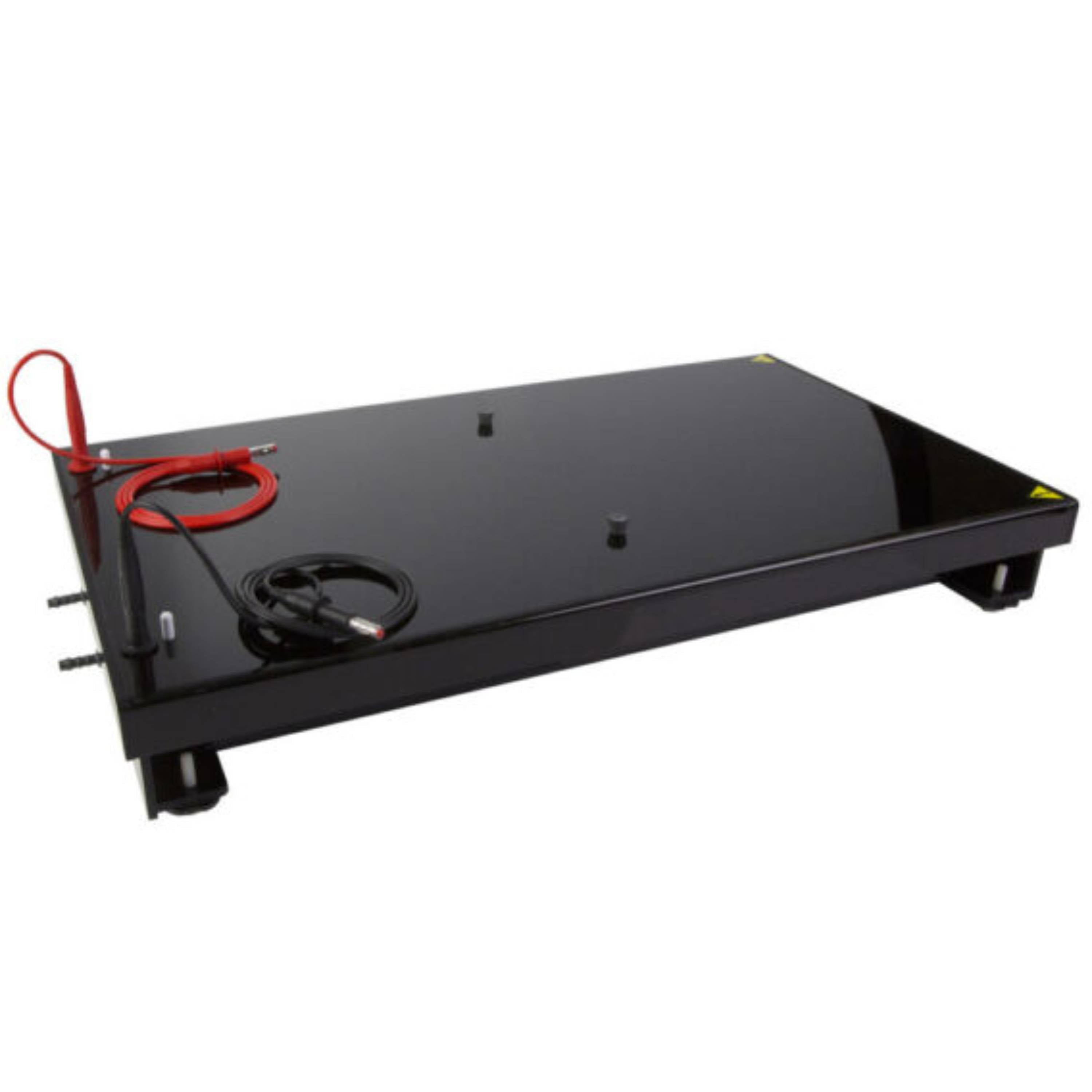

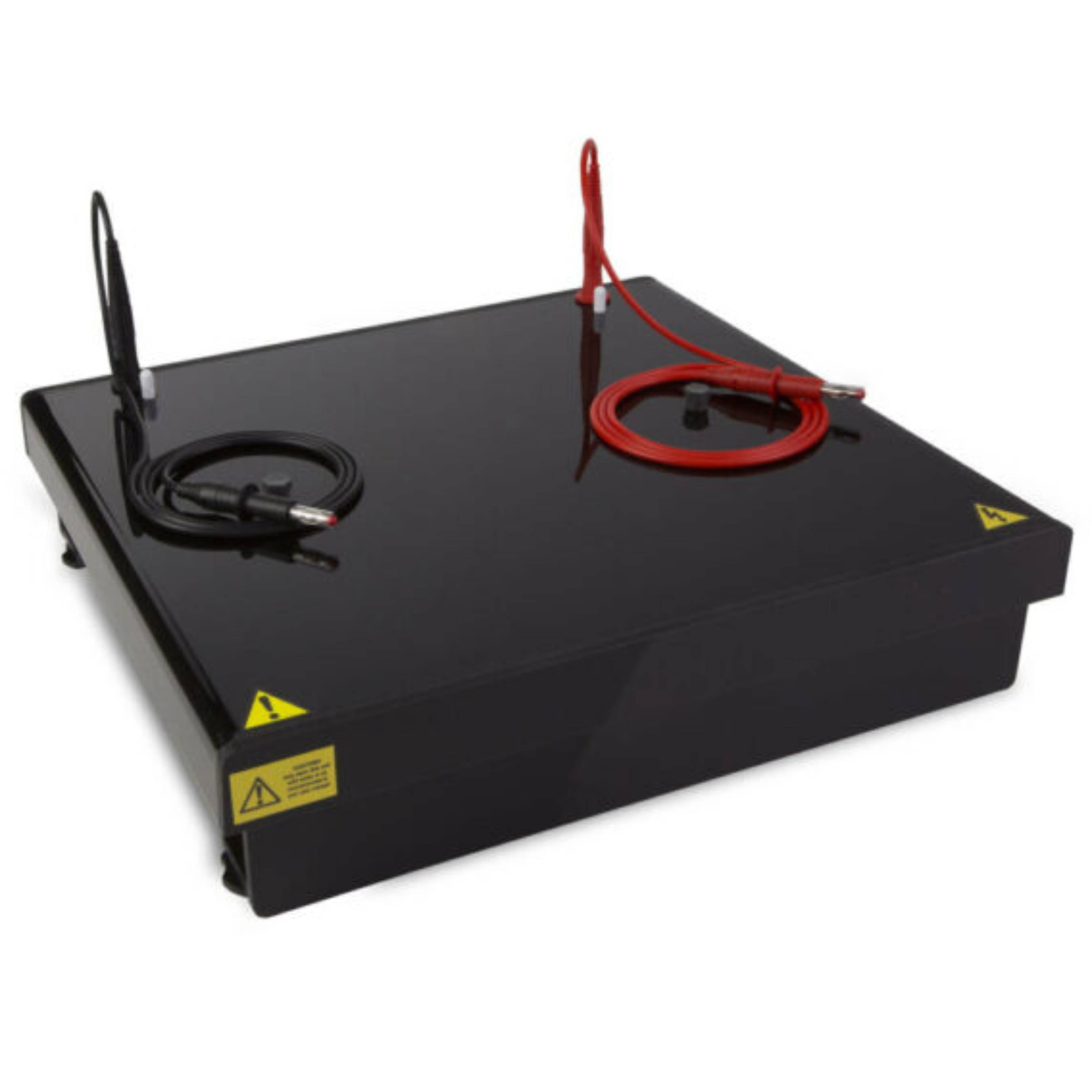

Cleaver Scientific Comet Assay Tanks are available in four slide formats to study single cell gel electrophoresis (SCGE), a technique made popular by drug toxicology and carcinogenesis studies for the detection and quantitation of DNA damage in cells. Each tank's robust construction from ebony acrylic ensures that cells remain free of exposure to background light and DNA damage during electrophoresis, while a cooled central platform provides a convenient surface for slide preparation and control of slide temperature during the assay. Following electrophoresis DNA damage may be measured using Comet Assay scoring software.

Background: First introduced in 1981 to quantify double-stranded DNA breakages in single cells exposed to irradiation, the Comet Assay (or SCGE) has since been adapted to analyze specific DNA lesions and repair processes.

Overview: Following genotoxic insult, such as ionizing radiation, the resultant strand breakage of supercoiled duplex DNA reduces the size of the large genomic DNA from which these strands are separated or drawn out by electrophoresis. The genomic DNA then takes on the appearance of a comet as its negatively charged broken ends and fragments migrate towards the anode during electrophoresis.

Method: After exposure to a genotoxic insult cells are suspended within low melting point agarose and embedded within a thin layer of agarose on a microscope slide. Cellular protein is then removed by lysis in detergent, when DNA is allowed to unwind in alkaline conditions before electrophoresis. The DNA is electrophoresed, stained and then analyze using software.

Results: Microscopy imaging is used to measure DNA fluorescence upon staining. In DNA damaged cells the resultant image resembles a 'comet' with the cellular DNA separated into a head and tail. The head is mainly composed of intact genomic DNA, whereas any fragmented or damaged DNA is concentrated within and towards the tail.

Key Features:

• For Single Cell Gel Electrophoresis

• Minimize exposure to light and reduce background DNA damage

• High efficiency cooling for enhanced resolution

Specifications:

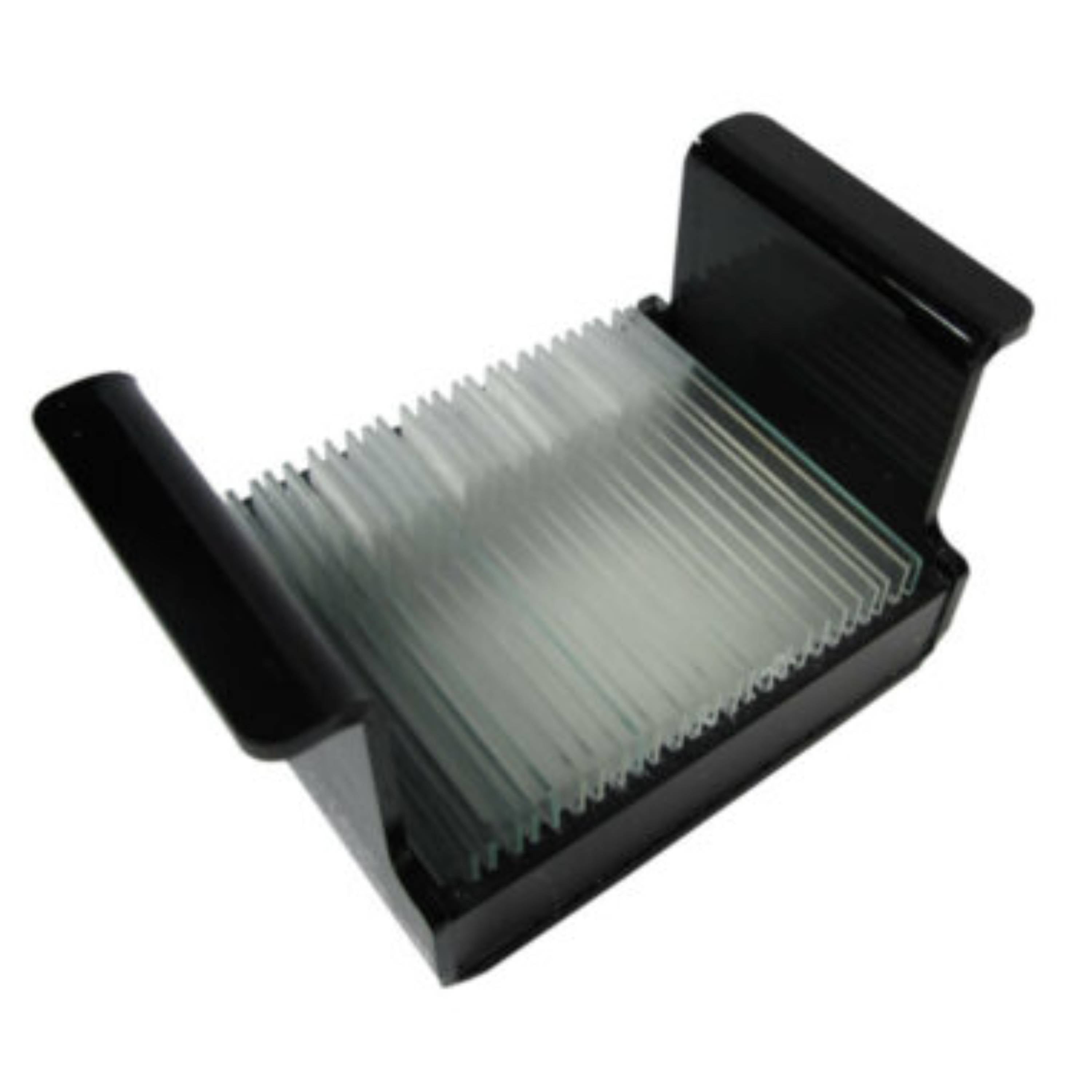

Vertical Slide carrier for 25 slides, pk/1

This slide carrier is a direct replacement for those included with the COMPAC-50 high throughput comet assay system. It holds 25 standard microscope slides and helps to speed up the comet assay by reducing manual handling of slides. The carriers are made from ebony acrylic and are compatible with comet assay reagents.

Key Features:

• Holds 25 standard microscope slides

• Speeds up comet assay processing

• Works with comet assay staining dishes and COMPAC-50 electrophoresis system

Product Flyers

• Cleaver Scientific catalog page 50(PDF)

MSE Supplies is an authorized supplier of Cleaver Scientific (Thistle Scientific) products. Please contact us if you need more information regarding Cleaver Scientific products and equipment.
