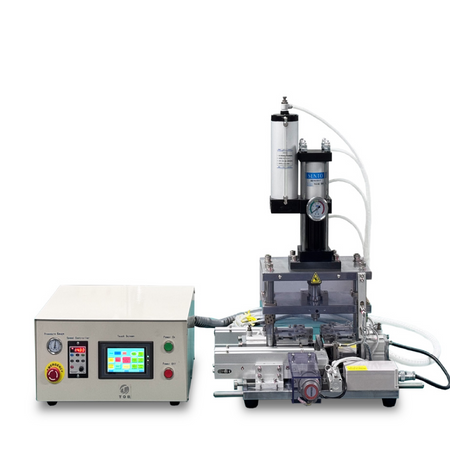

MSE PRO (Glove Box Only) Automatic Cylindrical Cell Cans Sealing Machine
Introduction
The MSE PRO (Glove Box Only) Automatic Cylindrical Cell Cans Sealing Machine is designed for precise, high-efficiency sealing of cylindrical battery cans inside a glove box. With triple sealing capability, automated feeding/unloading, and high dimensional accuracy, it ensures consistent, airtight seals for a variety of cylindrical cells. Its compact, user-friendly design makes it ideal for battery production and R&D environments.
Main Features
- Glove Box Compatible: Split design allows operation inside glove boxes
- Triple Sealing Process: Ensures flat edges, strong airtightness, and consistent quality
- High Precision & Efficiency: Mold accuracy ±0.1 mm with production up to 6 pcs/min
- Flexible Cell Compatibility: Supports multiple cell types (e.g., 18650, 21700) with mold change
- Automated & User-Friendly: PLC touchscreen control for easy parameter setting
- Durable Construction: Solid steel structure and long-lasting mold (>3 million cycles)
- Compact & Easy Maintenance: Small footprint and convenient operation
Specifications
| Compatible Battery Types | 18650, 21700, other types via mold change |
| Sealing Method | Three times sealing for flat edge, high airtightness |
| Sealing Mold | Standard 18650 assembly mold, optional molds for other types |
| Sealing Pressure | Max. 3000 Kg |
| Precision | ±0.1 mm |
| Mold Life | >3 million cycles |
| Production Capacity | 6 pcs/min |
| Voltage | AC 110V / 60Hz |
| Power | 0.5 kW |
| Atmospheric Pressure | 0.5–0.7 MPa |
| Machine Dimensions | 550 × 420 × 800 mm |
| Weight | 150 kg |
| Operation | Split design for glove box, PLC touch control |
MSE offers a range of battery equipment. Please contact us for more information.
