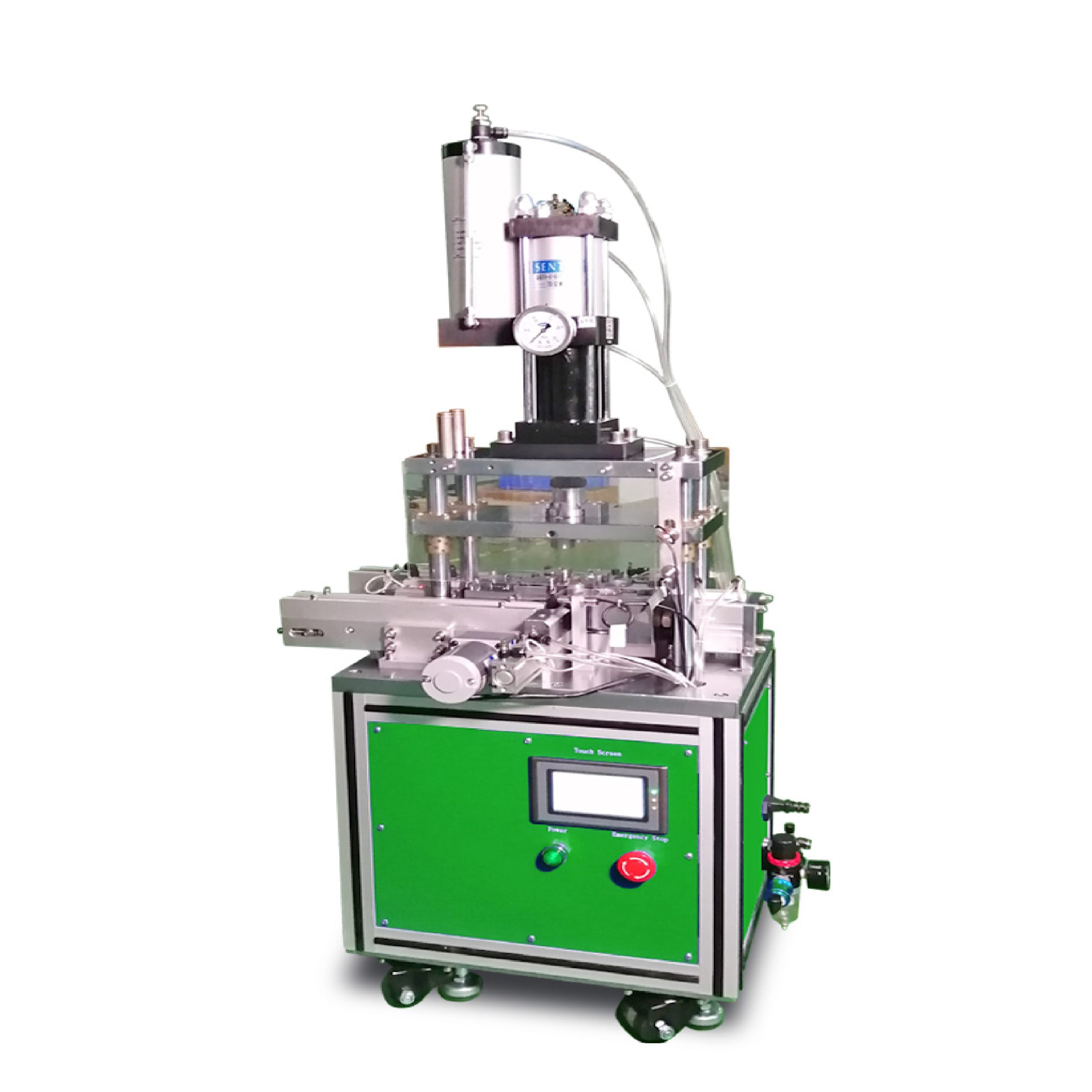

MSE PRO Automatic Cylindrical Cell Cans Sealing Machine
Introduction
The MSE PRO Automatic Cylindrical Cell Cans Sealing Machine is designed for efficient and precise sealing of cylindrical batteries after electrolyte filling. It supports multiple battery sizes, including 18650, 21700, and 26650, ensuring airtight and consistent sealing for mass production and R&D environments. The machine combines advanced control systems with durable mechanical design for reliable and stable operation.
Main Features
- PLC touchscreen operation for easy parameter setting and high automation
- Triple sealing ensures flat edges, strong airtightness, and consistent results
- Precise mold design for accurate and reliable sealing
- Supports multiple cylindrical battery types, with mold replacement for flexibility
- Compact, easy to operate, and low-maintenance design
- Solid steel structure ensures stability and safety during operation
Specifications
| Sealing Mold | Standard 18650 assembly mold, optional molds for other battery types |
| Sealing Pressure | Max. 3000 Kg |
| Precision | ±0.1 mm |
| Mold Life | >3 million cycles |
| Production Capacity | 4 pcs/min |
| Compatible Cell Types | 18650, 21700, 26650, other types with mold change |
| Voltage | AC 110V / 60Hz |
| Power | 0.5 kW |
| Atmospheric Pressure | 0.5–0.7 MPa |
| Dimensions | 550 × 400 × 1250 mm |
| Weight | 205 kg |
| Sealing Method | Three times sealing for high precision and airtightness |
MSE offers a range of battery equipment. Please contact us for more information.
