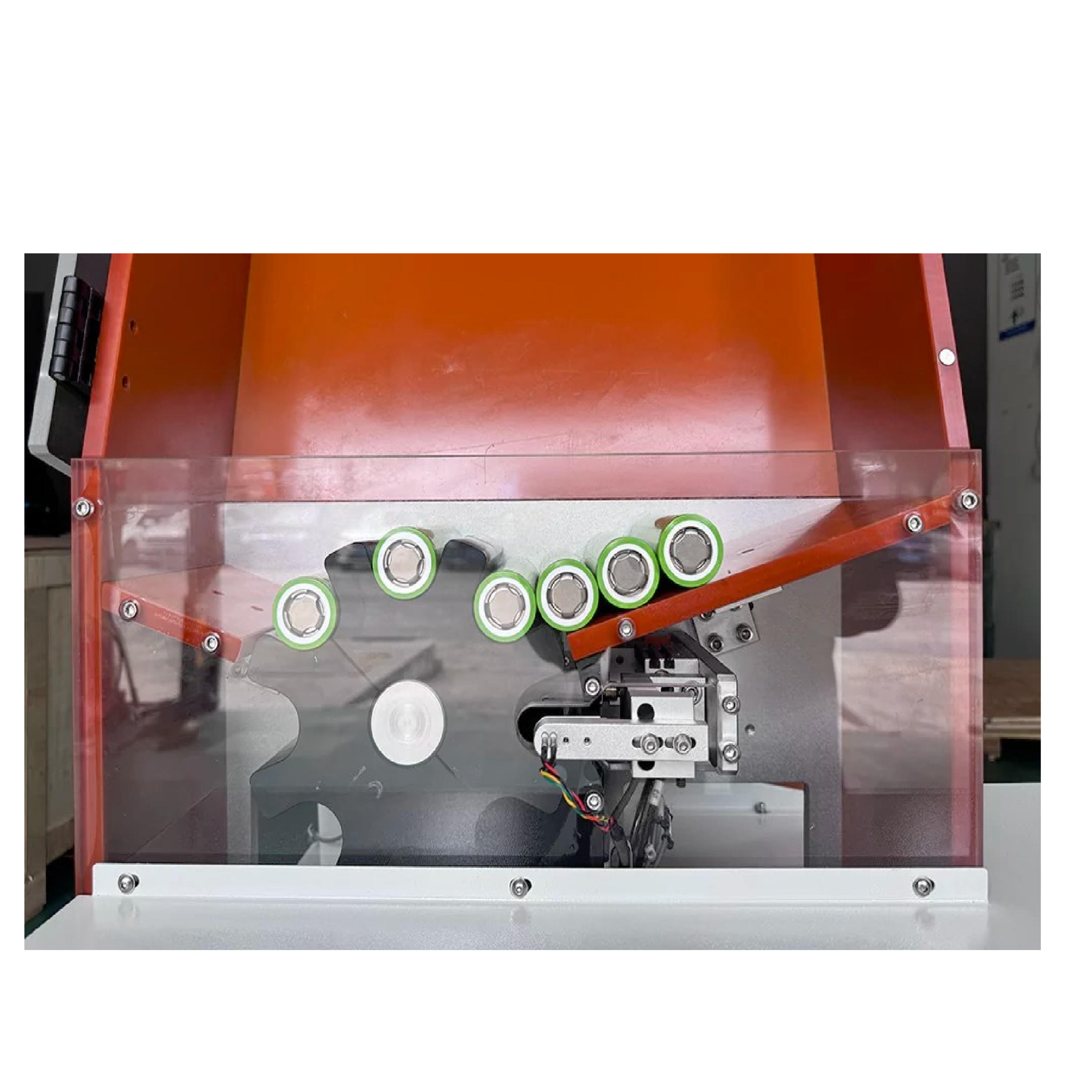

MSE PRO 5-Channel Automatic Cylindrical Battery Cell Sorting Machine
Introduction
The MSE PRO 5-Channel Automatic Cylindrical Battery Cell Sorting Machine is designed for efficient sorting and testing of cylindrical battery cells. It automatically measures key parameters such as voltage and internal resistance, classifies cells into groups, and removes defective units. With data tracking and high-speed operation, it improves production efficiency and ensures consistent battery quality.
Main Features
- 5-channel sorting system enables multi-range classification with dedicated NG channel
- High-speed operation with up to 40–50 PPM throughput
- High-precision testing for voltage and internal resistance measurement
- Automatic defect detection identifies and removes faulty cells
- Data tracking and storage for full traceability and process control
- Integrated industrial control system for stable and reliable operation
- Flexible compatibility supports different cylindrical cell types
- Easy operation and management with intuitive interface and organized output collection
- Built-in high-accuracy tester with optional upgrade options
Specifications
| Equipment Efficiency | 40–50 PPM |
| Utilization Rate | ≥ 95% |
| Channel Number | 5 (4 sorting channels + 1 NG channel) |
| Internal Resistance Accuracy | ±0.5% rdg, resolution 0.01 mΩ |
| Voltage Accuracy | ±0.05% rdg, resolution 0.1 mV |
| Internal Resistance Repeatability | < 1 mΩ |
| Voltage Repeatability | < 1 mV |
| Control System | Industrial PC (embedded system) |
| Power Consumption | 1 kW |
| Power Supply | AC 110V / 60Hz |
| Compressed Air | ≥ 0.6 MPa |
| Display | 21.5-inch display |
| Dimensions | 1620 × 710 × 1360 mm |
| Weight | 350 kg |
MSE offers a range of battery equipment. Please contact us for more information.
