MSE PRO Zoom Trinocular Stereo Microscope with Parallel Optical System

Ready to Ship
SKU: LS0065509
$ 25,600.00

Still have questions? Ask our experts!

Email +1 (520) 783-7989

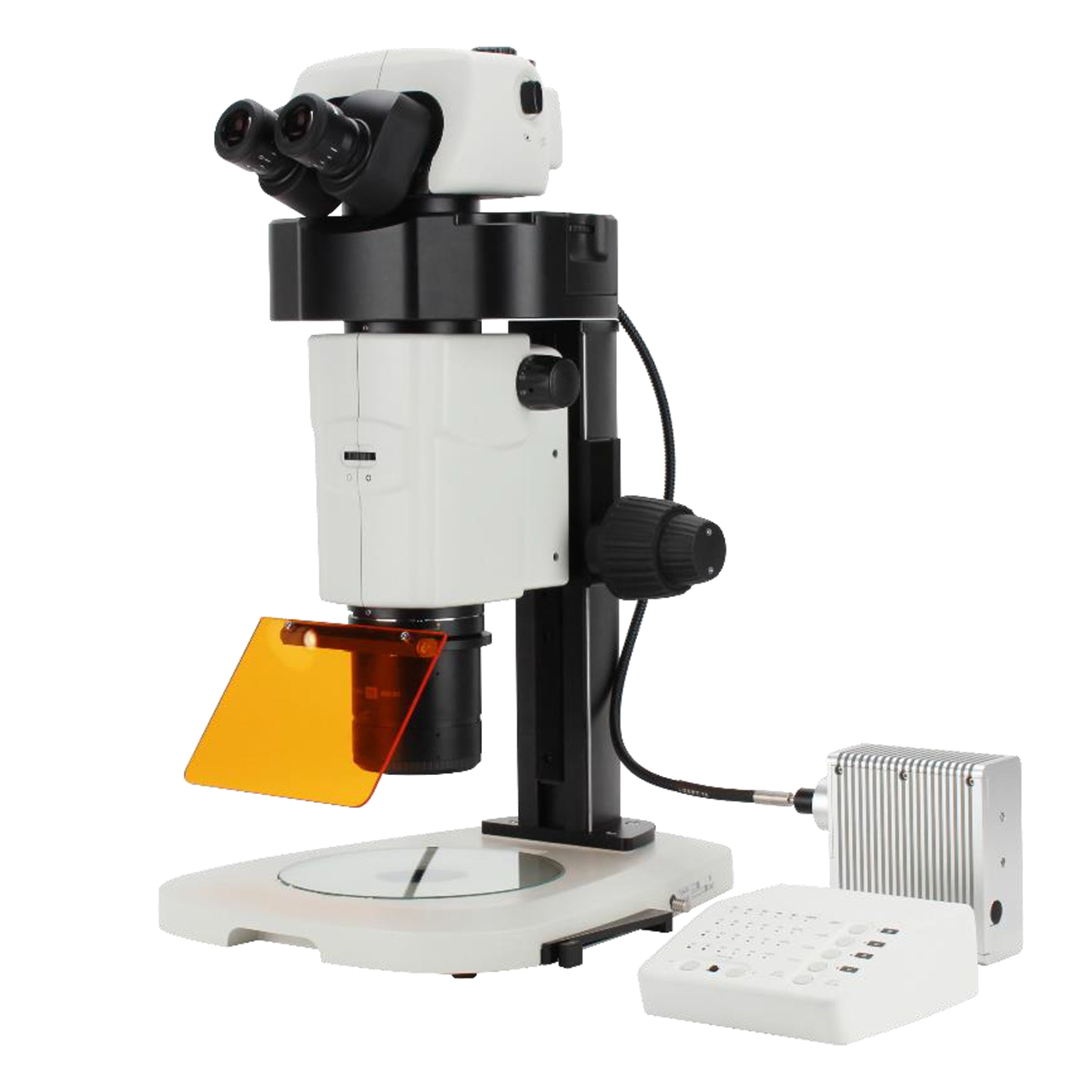

MSE PRO Zoom Trinocular Stereo Microscope with Parallel Optical System

LS0065509 is a research level zoom stereo microscope with infinite parallel Galileo optical system. Based on Galileo optical system and Apochromatic objective, it can provide real and perfect microscopic images on details. The excellent ergonomics and user-friendly operating system can truly allow users to experience a simple and comfortable work. The zoom ratio is 18:1, with 10× eyepiece, the magnification range is 7.5×-135×. LS0065509 can meet the research demands of life sciences, biomedicine, microelectronics, semiconductors, materials science and other fields of research needs.

Features:

  • Trinocular viewing head for comfortable operation.
    The interpupillary distance and diopter can be adjusted, users can operate the microscope with the most comfortable gesture. This can minimize the visual fatigue caused by long-term observation. Trinocular tube with C-mount can be used to connect different digital cameras.
  • Large zoom ratio 18:1.
    BS-3090 has large zoom ratio of 18:1, zoom range from 0.75X to 13.5X, with click stop for main magnifications, the images remain clear and smooth during zoom magnifying.
  • Apochromatic objective.
    Apochromatic design has significantly improved the color reproduction of the objective. Correcting the axial chromatic aberration of red/green/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples. The 1X objective is NA0.15.
  • Aperture diaphragm adjustment.
    Shift the aperture diaphragm lever in front of the microscope to adjust depth of field for high-quality image.
  • LED fluorescent attachment.
    The EPI-Fluorescent Attachment is equipped with 6-hole turntable fluorescent modules, it can accommodate up to five fluorescent modules and one bright field module. Four band LED light source is used to change the light source color and adjust the brightness through the LED light source controller. It includes following parts:
    (1) Epi-fluorescent Attachment.
    (2) 1/4 λ Plate.
    (3) Control Box.
    (4) Light Shading Plate.
    (5) Light Source.
    (6) Bright Field Filter Cube.
    (7) Fluorescent Filter Cube
    Fluorescent filters Excitation Dichroic Mirror Barrier Filter
    B Filter BP460-495 DM505 BA510
    G Filter BP510-550 DM570 BA575
    U Filter BP330-385 DM410 BA420
    R Filter BP620-650 DM660 BA670-750
    FL-FITC BP460-495 DM505 BA510-550
    FL-DAPI BP360-390 DM415 BA435-485
    FL-TRITC BP528-553 DM565 BA578-633

Application:

LS0065509 has great value in a variety of applications such as life science and medical research, including dissection, Zebrafish research, live cell imaging, IVF, biological experiment, chemical analysis and cell culture. It also can be used in Industrial areas for PCB, SMT surface, electronics inspection, semiconductor chip inspection, metal and materials testing, precision parts testing, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Specification:

Item Specification LS0065509
Optical System Infinite Parallel Galileo Zoom Optical System ●
Viewing Head 20° inclined trinocular head; binocular: trinocular=100:0, 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw ●
Eyepiece (PL10×/23mm) High eye-point wide field plan eyepiece PL10×/23mm, diopter adjustable ●
High eye-point wide field plan eyepiece PL15×/16mm, diopter adjustable ○
High eye-point wide field plan eyepiece PL20×/12mm, diopter adjustable ○
Zoom Range Zoom range: 0.75X-13.5X, click stop for 0.75×, 1×, 2×, 3×, 4×, 5×, 6×, 8×, 10×, 11×, 12×, 13×, 13.5×, with built-in aperture diaphragm ●
Objective Plan Apochromatic Objective 1×, W.D.: 60mm, NA0.15 ●
Zoom Ratio 1:18 ●
Focusing Unit Coarse and fine coaxial focus system, tension adjustable, coarse moving range 50mm, fine precision 0.002mm ●
Base Plan base with transmitted illumination, glass insert plate size: diameter 180mm ●
Illumination  LED transmitted illumination, brightness adjustable ●
LED Ring light ○
Cold light source ○
Camera Adapter 0.5×/1× C-mount adapters ○
Fluorescent Attachment EPI-Fluorescent Attachment with 6-hole turntable fluorescent modules, it can accommodate up to five fluorescent modules and one bright field module. Four band LED light source, brightness adjustable, with B, G, U, R fluorescent filters ●
Packing (1set/carton) 1set/carton, Net/Gross weight: 14/16kgs, Carton size: 59×55×81cm
Packing (1set/2 cartons) 1set/2 cartons, carton 1: Net/Gross weight: 14/16kgs, Carton size: 59×55×81cm; carton 2: 38×45×26cm, Net/Gross weight: 7/8kgs ●


Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of biological microscopes. Please contact us for more information.
