Monoclinic Zirconium Oxide (Zirconia) ZrO₂ Nanoparticles, 20nm to 40nm, >99.9% High Purity

Product # PO1109 (500 g), PO1118 (1 kg), PO1119 (10 kg)

Zirconium Oxide Nanoparticles Features:
High purity white powder. It appears oblique crystal at low temperature and shows tetragonal crystal formation at high temperature. Nano ZrO₂ is soluble in sulfuric acid, hydrofluoric acid and has good thermal-chemical stability. When at high temperature, it has electrical conductivity and good strength and toughness. Nano ZrO₂ also possesses good mechanical, thermal, electrical and optical properties.

Nano Zirconia Powder Specifications

Product Code	Material Name	Average Particle Size	ZrO2 %	Y2O3 %	BET SSA (m2/g)
NP-40081-A	ZrO₂ Nanoparticles	20-40nm	99.95%	N/A	10-30
NP-40081-B	ZrO₂ Nanoparticles	50-80nm	99.95%	N/A	10-15
NP-40082-A	YSZ Nanoparticles	20-40nm	94.7%	3Y/3mol 5.3wt	20-40
NP-40082-B	YSZ Nanoparticles	20-40nm	91.5%	5Y/5mol 8.5wt	20-40
NP-40082-C	YSZ Nanoparticles	20-40nm	86.5%	8Y/8mol 13.5wt	20-40
NP-40082-D	YSZ Nanoparticles	50-80nm	94.7%	3Y/3mol 5.3wt	10-20
NP-40082-E	YSZ Nanoparticles	50-80nm	91.5%	5Y/5mol 8.5wt	20-30
NP-40082-F	YSZ Nanoparticles	50-80nm	86.5%	8Y/8mol 13.5wt	20-40

Product Purity: >99.9%*

* Includes naturally occurring HfO₂ 2.5% maximum

Typical Impurities:

Fe₂O₃ < 0.003%

SiO₂ < 0.002%

TiO₂ < 0.001%

Al₂O₃ < 0.005%

Na₂O < 0.001%

CaO < 0.003%

Zirconium Dioxide Nanoparticles (ZrO₂) Applications:
1. Functional ceramics, ceramic pigment, high-purity pigment, porcelain glaze.
2. Pyrooptical element, oxygen-sensitive element, high-capacity capacitor, optical storage, image display element, light modulated element, light shutter, stereo television glasses, image storage and display element.
3.Abrasive material, insulating material, fire-retarding material, roentgenography.
4. High-temperature and corrosion resisting components, bearing nozzle, smelting crucible.
5.Piezoelectric element, ion exchanger, solid dielectric, filter, temperature and pressure transmitters and transmitting elements, electrode used for magnetic-current generator, heating element.
6. Jewelry: artificial jewel.
7. Fuel cells, battery.

Zr

MSE PRO Monoclinic Zirconium Oxide (Zirconia) ZrO2 Nanoparticles, 20nm to 40nm, >99.9% High Purity

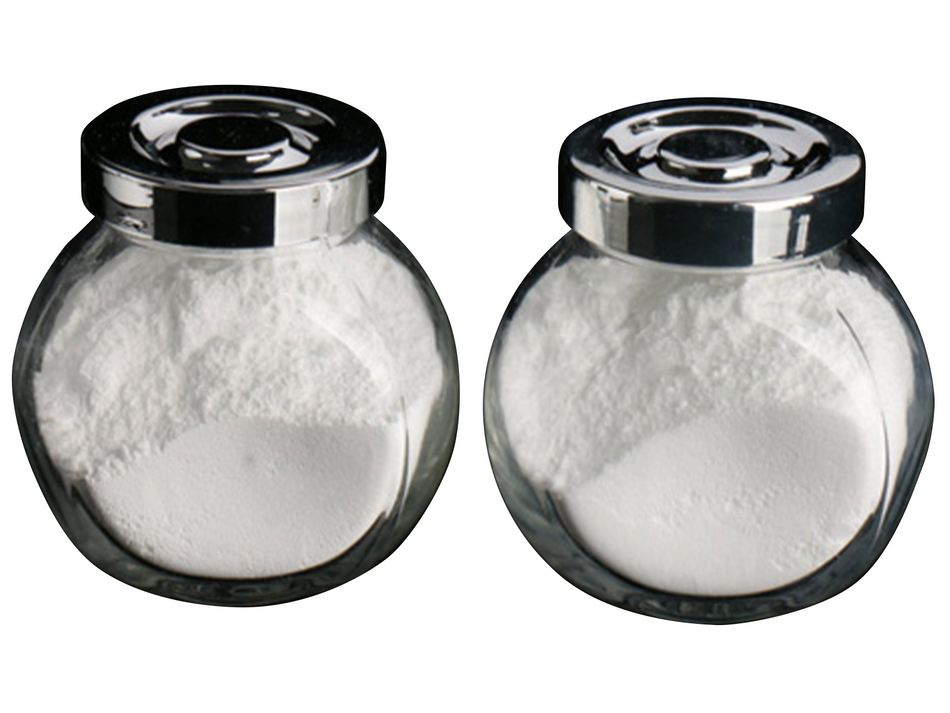

MSE PRO 99.9% Monoclinic Zirconia Polishing Powder Nanoparticles, 1kg

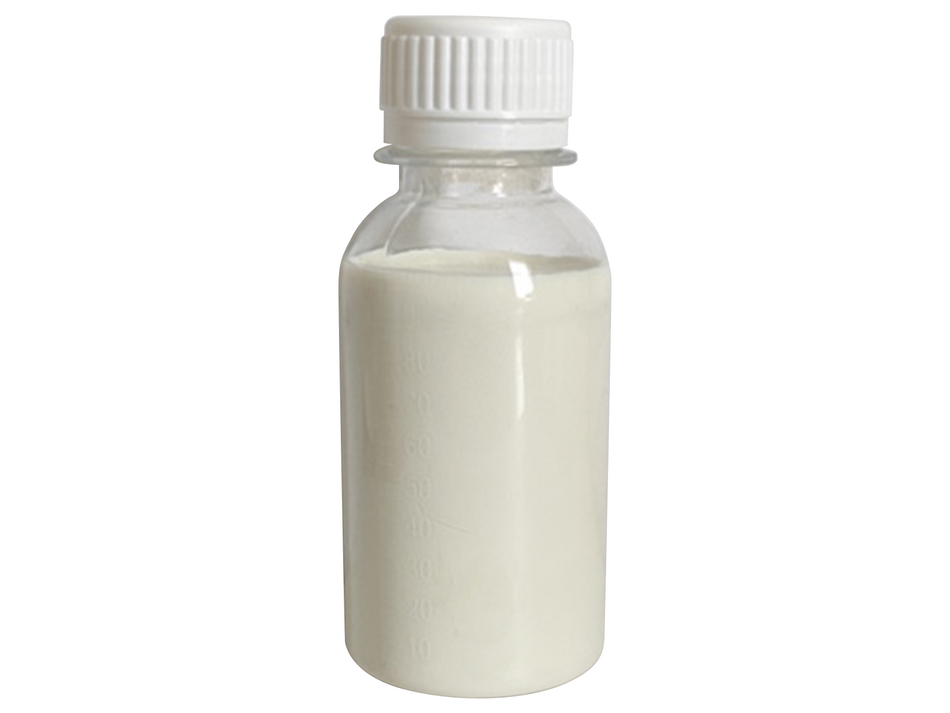

MSE PRO 20wt% Zirconia (ZrO2) Nanoparticles Water Dispersion for Polishing, 500g
