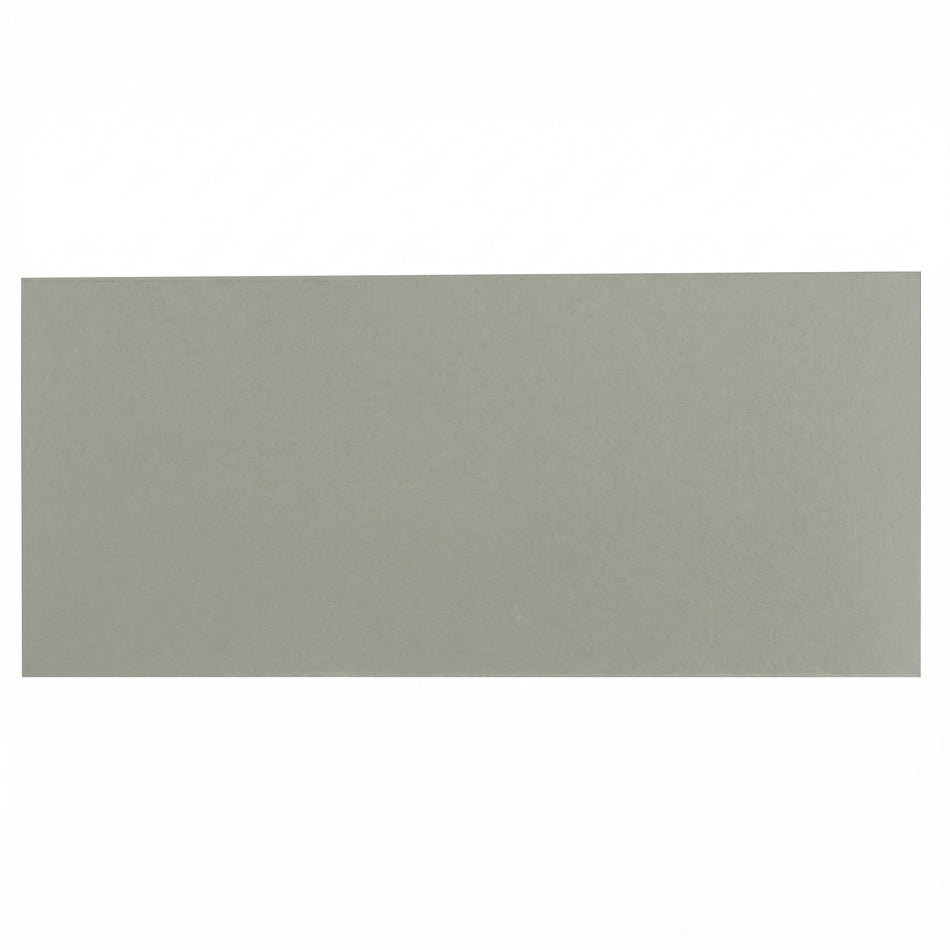

Manganese-doped PIN-PMNT (PIN-PMN-PT) Single Crystals and Substrates, Mn-doped Pb(In_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃

Customized sizes and shapes are available upon request. Please contact us for quotation.

Optional electrode coating is available upon request at additional cost. Typical electrode coating: silver (Ag) or gold (Au) by sputtering with 200-300 nm thickness.

Specifications of Mn:PIN-PMN-PT single crystals and substrates

Parameter	Mn:PIN-PMN-PT	Mn:PIN-PMN-PT	Cut-Type	Poling direction
Parameter	I-Type	II-Type	(001)	<001>
PT content	Lower PT	Higher PT
Dielectric constant	3000-3700	3500-5500
Dielectric loss (%)	<0.50	<0.50
Piezoelectric constant d₃₃ (pC/N)	950-1200	1100-1700
Piezoelectric constant d₃₂ (pC/N)	-(500-800)	-(700-900)
Electromechanical coupling factor k₃₃	0.86-0.91	0.87-0.92
Phase transition temperature T_rt (℃)	118-130	100-120
Curie temperature T_c (℃)	155-170	170-210
Coercive field E_c (kV/cm)	5.5-6.5	5.5-7.0
Density (g/cm3)	8.12	8.12
Available sizes of plates	length: 1-70mm, width: 1-30mm, maximum diameter: 60mm
Available thickness of plates	0.1-10 mm
Shapes	Plates, rings, rods, etc.
Surface finish	Fine grinding or polished
Electrodes	Silver, Gold

As a novel kind of piezoelectric materials, relaxor-based ferroelectric single crystals exhibit ultrahigh piezoelectric performances, which surpass largely those of conventional PZTs piezoelectric ceramics. Our company can provide three generations of relaxor-based piezocrystals, i.e. Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ (abbreviated as PMN-PT or PMNT), Pb(In_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ (abbreviated as PIN-PMN-PT or PIMNT) and Mn doped Pb(In_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ (abbreviated as Mn:PIN-PMN-PT or Mn:PIMNT) in large scale. High quality, large size and uniform crystals are available, which can satisfy various ultrasonic transducers in ultrasonic imaging, nondestructive examination and energy harvesting, solid-state actuators and composites such as magnetoelectric ones. The crystals have also good electro-optic properties and excellent pyroelectric properties, which can find application in the fields of electro-optic modulators in optical communications and pyroelectric devices in infrared detection and so on.

The main performance specifications are presented in the following tables. Various cut-type samples can be offered. Please contact us by phone or email to discuss your applications.

For Research Use Only (RUO). Not for use in diagnostic procedures.
