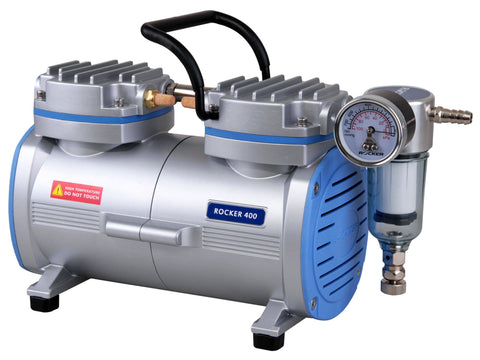

Witeg Vacuum Pump Rocker 400 -680 mmHg (106 mbar) 34 l/min
SKU: 00829 167400-22
Witeg Vacuum Pump Rocker 400 -680 mmHg (106 mbar) 34 l/min
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Filtration for microbiology test
- Air sampling
- Suspended solid test
- Vacuum filtration
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- Lubricant and oil free piston
- No air pollution
- Maintenance-free
- ProteTM filter prevents liquid from being sucked into the pump and filters particles as well as moisture
- CE, CSA and RoHs certified, with IP 30 protection
Controller
- Thermal protection device ensures shutting down the pump when overheated and resumes working when the temperature cooled down
Technical data
| Version | With moisture trap, vacuum regulator and overflow protection |
| Length (outer) | 31.0 cm |
| Ideal for | Filtration for microbiology tests, air sampling, suspended solid test, vacuum filtration |
| Connections | 5/16 inch (8 mm) |
| Weight | 5,2 kg |
| Flow rate | 34 l/Min |
| Width (Outer) | 13.5 cm |
| Height (outer) | 20.4 cm |
| Power supply | Current 0.4 A |
| Speed | Motor ration: 1450 rpm |
| Vacuum range | max. -680 mmHg (106 mbar) |
