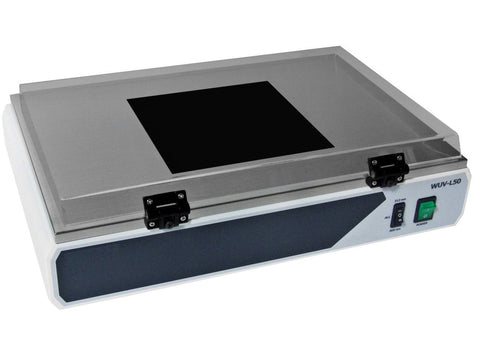

Witeg UV-Transilluminator Standard 6x15W (365nm, 312nm, 365+312nm)
SKU: DH.WUV00010
Witeg UV-Transilluminator Standard 6x15W (365nm, 312nm, 365+312nm)
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Standard gel documentation and preparative work, especially for detection of very small amounts of DNA & RNA stained by EtBr
Features:
- Low cost, robust, versatile, affordable & gentle excitation
- Stainless steel frame and robust steel housing
- Small amount of DNA & RNA stained by EtBr
- Long-life electronic (low heat, no flickering)
- CE certified and unique serial number for tracing
Safety mechanism:
- Hinged UV-blocking safety cover protects user from UV-radiation
Controller:
- High (100%) / low (75%) intensity switch
Technical data
|
Version |
Standard case-type |
|
Length (outer) |
330 mm |
|
Filter |
Filter size 200 x 200 mm |
|
Illumination |
6 x 15 W UV lamps |
|
Weight with packaging |
12 kg |
|
Wavelengths |
Single 365 nm |
|
Width (Outer) |
495 mm |
|
Height (outer) |
95 mm |
|
Ideal for |
Standard gel documentation and preparative work, especially for detection of very small amounts of DNA & RNA stained by EtBr |
|
Weight |
10 kg |
|
Packing size |
520 x 380 x 220 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Filter | Ideal for |
| DH.WUV00010 | WUV-L10 230 V | Standard case-type | 495 mm | 330 mm | 95 mm | Filter size 200 x 200 mm | Standard gel documentation and preparative work, especially for detection of very small amounts of DNA & RNA stained by EtBr |
| DH.WUV00020 | WUV-L20 230 V | Standard case-type | 495 mm | 330 mm | 95 mm | Filter size 200 x 200 mm | Standard gel documentation and preparative work, especially for detection of very small amounts of DNA & RNA stained by EtBr |
| DH.WUV00050 | WUV-L50 230 V | Standard case-type | 495 mm | 330 mm | 95 mm | Filter size 200 x 200 mm | Standard gel documentation and preparative work, especially for detection of very small amounts of DNA & RNA stained by EtBr |
| SKU | Illumination | Weight | Weight with packaging | Packing size | Wavelengths |
| DH.WUV00010 | 6 x 15 W UV lamps | 10 kg | 12 kg | 520 x 380 x 220 mm | Single 365 nm |
| DH.WUV00020 | 6 x 15 W UV lamps | 10 kg | 12 kg | 520 x 380 x 220 mm | Single 312 nm |
| DH.WUV00050 | 6 x 15 W UV lamps | 10 kg | 12 kg | 520 x 380 x 220 mm | Dual 365 + 312 nm |
