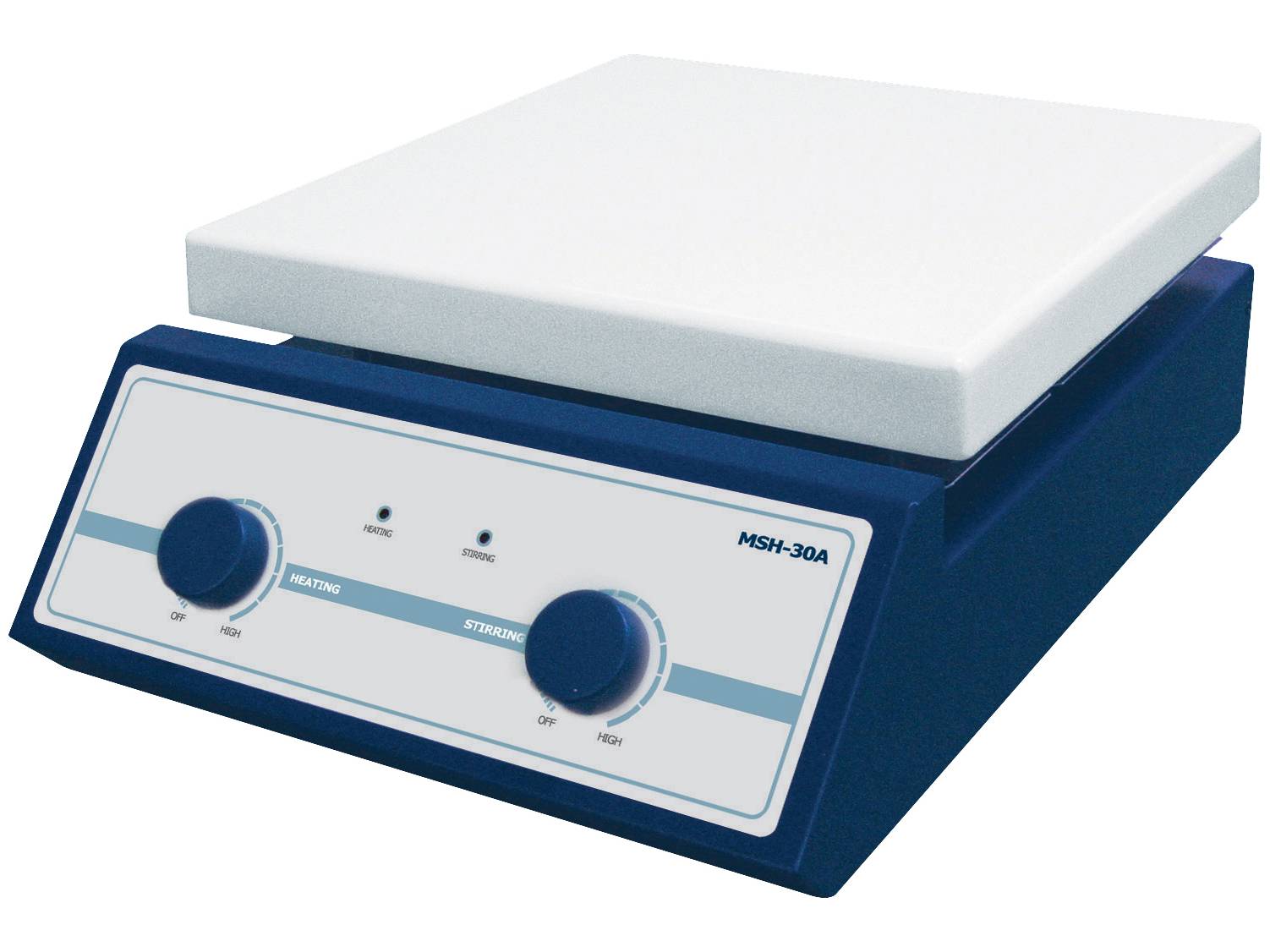

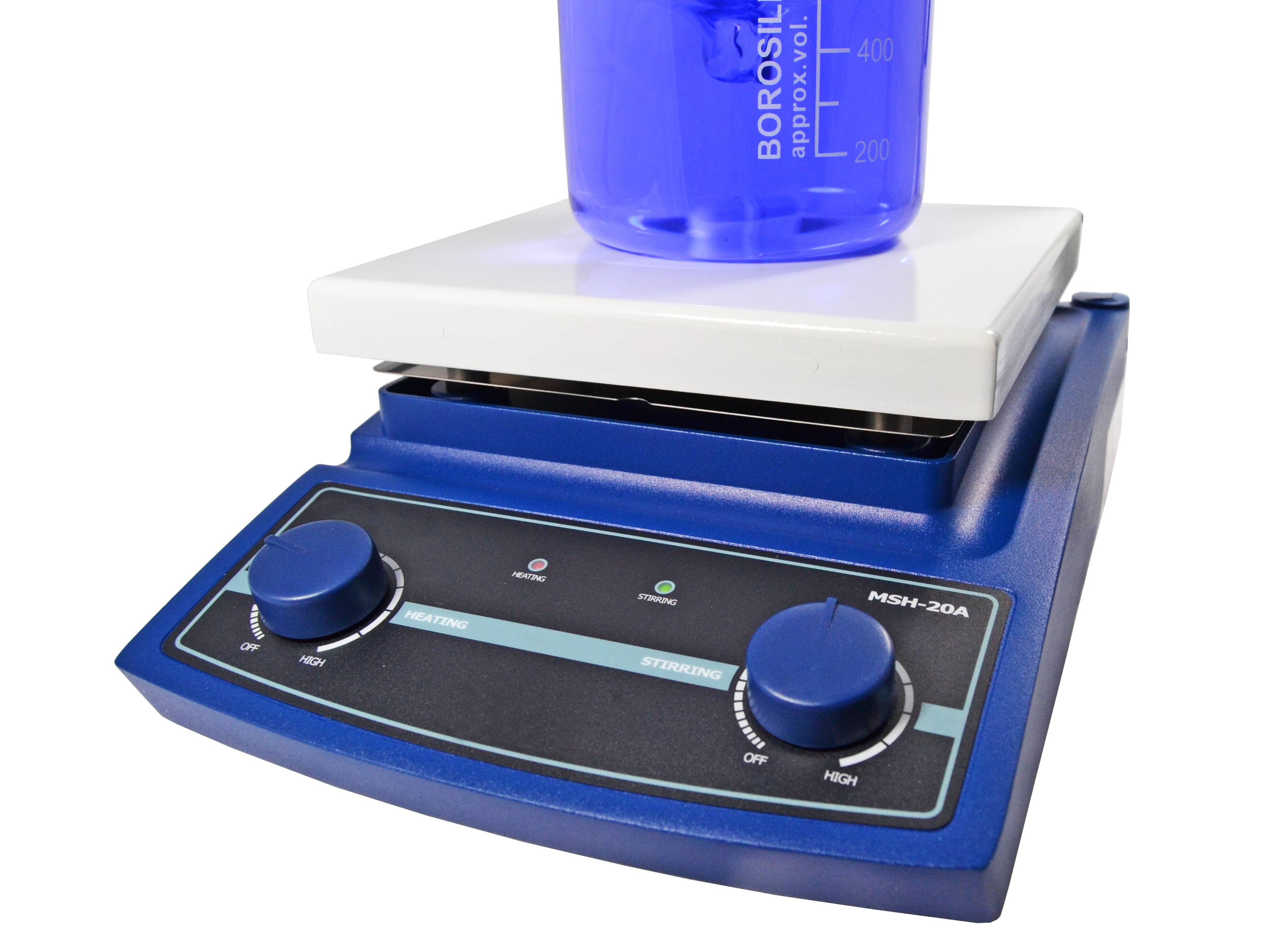

Witeg Magnetic Stirrer With Hotplate MSH-A Analog, 70°C to 380°C, Up to 1500rpm
SKU: DH.WMH03120
Witeg Magnetic Stirrer With Hotplate MSH-A Analog, 70°C to 380°C, Up to 1500rpm
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Mixing of chemical, laboratory and pharmaceutical materials
- Heat-sensitive procedures in microbiology and biochemistry
- Sample drying and general lab heating applications
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- 70°C to 380°C
- Up to 1.500 rpm
- Ceramic-coated aluminium plate 180x180 / 260x260 mm
- Heat-, chemical- and restricted acid-resistant
- No liquid can get into the body
- Powder-coated body
- Easy to clean

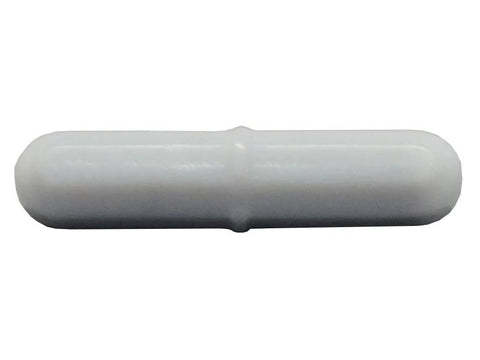

- 30 mm stirrer bar included
- CE certified and unique serial number for tracing
Safety mechanism
- Operation LEDs
Controller
- PWM controller
Technical data
| Version | brushless motor |
| Length (outer) | 307 mm |
| Version with filter | rectangular |
| Housing material | Powder-coated aluminium |
| Weight | 2,8 kg |
| Heating power | 600 W |
| Plate size | 180 x 180 mm |
| Temperature range with filter | 380°C |
| Width (Outer) | 206 mm |
| Height (outer) | 99 mm |
| Controller | Analog |
| Speed | 1500 rpm |
| Weight with packaging | 5 kg |
| Capacity | 20 l |
| Plate material | Ceramic-coated aluminium |
| Packing size | 400 x 280 x h200 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Version with filter | Controller | Housing material | Speed | Weight | Weight with packaging | Heating power | Capacity | Plate size | Plate material | Temperature range with filter | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WMH03120 | MSH-20A 230 V | brushless motor | 206 mm | 307 mm | 99 mm | rectangular | Analog | Powder-coated aluminium | 1500 rpm | 2,8 kg | 5 kg | 600 W | 20 l | 180 x 180 mm | Ceramic-coated aluminium | 380°C | 400 x 280 x h200 mm |
| DH.WMH03121 | MSH-30A 230 V | carbon brush motor | 286 mm | 387 mm | 99 mm | rectangular | Analog | Powder-coated steel | 1500 rpm | 3,3 kg | 5 kg | 1200 W | 20 l | 260 x 260 mm | Ceramic-coated aluminium | 380°C | 430 x 320 x h200 mm |
