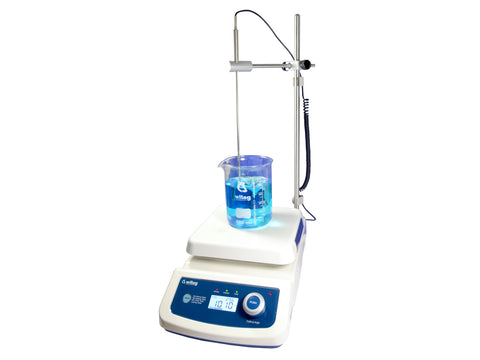

Witeg Magnetic Stirrer With Hotplate MSH-500D Digital 500°C 1500 rpm
SKU: DH.WMH04020
Witeg Magnetic Stirrer With Hotplate MSH-500D Digital 500°C 1500 rpm
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Mixing of chemical, laboratory and pharmaceutical materials
- Heat-sensitive procedures in microbiology and biochemistry
- Sample drying and general lab heating applications where high temperature is needed
Features
- Ip to 500°C
- digital display with backlight
- High-quality solid ceramic plate 200x200 mm
- Heat-, chemical- and acid-resistant
- Shade motor for 80-1.500 rpm
- Enormous strength of magnet
- Perfect heat uniformity from the inner to the edge
- No liquid can get into the body
- Powder-coated aluminium body
- 30 mm stirrer bar included
- CE certified and unique serial number for tracing
Safety mechanism
- Hot top indicator lamp
- High quality insulation (BTU)
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Operation LEDs
Controller
- Jog-Dial controller with touch-button for precise temperature control
Features
Protection: Two features protect the device from internal corrosion and prolong its life time: the closed coverage type and the intelligent fluid management system, which leads off accidentally spilled liquids away from the interior of the device.
Surface: The superior full ceramic plate achieves up to 500°C, is resistant against aggressive chemicals and easy to clean.
Housing: The die-cast case with high-quality insulation ensures user safety during operation at high temperatures. The minimized heat transfer from the plate to the inside also ensures a longer life time.
Temperature control & safety: Two independent internal temperature sensors assure accurate temperature control and prevent from malfunction or danger caused by overheating.
Accessories: The external temperature sensor allows accurate temperature due to digital feedback control system.
Motor: The brushless shade motor ensures strong and precise stirring, minimized noise and a long life time. Due to the high-performance magnet, up to 20 l of water can be stirred easily.
Safety first: Hot top indicator lamp illuminates when temperature on the plate is over 50°C.
Controller: New Jog-Dial “Turn + Push” and touch button are designed for intuitive, easy and direct use.
Devices with 230 V power supply can also be supplied with 120 V on request
Technical data
| Version | Unit |
| Length (outer) | 345 mm |
| Power supply | 230 V, 50/60 Hz |
| Housing material | powder-coated aluminium |
| Heating power | 850 W |
| Plate material | solid ceramic plate |
| Temperature range | max. 500°C |
| Packing size | 450 x 280 x 160 mm |
| Width (Outer) | 205 mm |
| Height (outer) | 135 mm |
| Controller | Digital |
| Speed | 80 - 1.500 rpm |
| Plate size | 200 x 200 mm |
| Temperature control resolution | 0.1°C display, 0.5°C control |
| Temperature accuracy | ±0,3°C |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Power supply | Controller | Housing material | Speed | Heating power | Plate size | Plate material | Temperature control resolution | Temperature range | Temperature accuracy | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WMH04020 | MSH-500D Unit 230 V | Unit | 205 mm | 345 mm | 135 mm | 230 V, 50/60 Hz | Digital | powder-coated aluminium | 80 - 1.500 rpm | 850 W | 200 x 200 mm | solid ceramic plate | 0.1°C display, 0.5°C control | max. 500°C | ±0,3°C | 450 x 280 x 160 mm |
