Witeg Incubators WIS-20 Shaking Incubator Bench-Top Orbital Motion

Witeg Incubators WIS-20 Shaking Incubator Bench-Top Orbital Motion

SKU: DH.WIS00220

  • $ 6,37595
  • Save $ 76600

Request a Quote

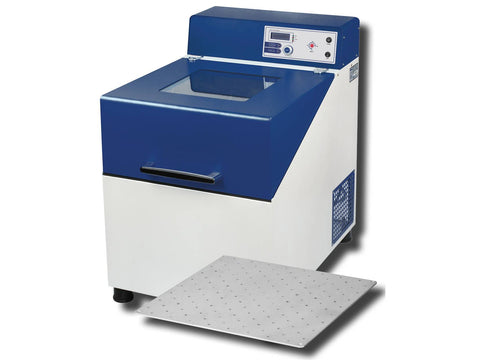

Witeg Incubators WIS-20 Shaking Incubator Bench-Top Orbital Motion

Buy Witeg products from MSE Supplies at the best value.

Description

Ideal for:

  • Biological cultures under various temperatures

Features:

  • Easy access to bench top by liftable door

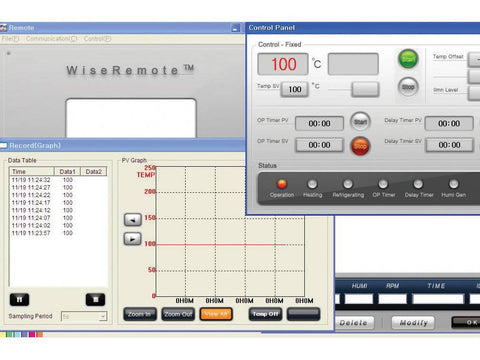

  • RS232C interface for monitoring and controlling (WireRemote)
  • Advanced shaking mechanism provides quiet shaking and precise speed control
  • Stabilized orbital motion, minimum noise and no vibration
  • 60W krypton lamp
  • Universal platform included
  • Accommodates flasks up to 1000 ml
  • Durable and flexible plastic flask holder (optional)
  • Universal spring rack for various flask shapes/sizes (optional)
  • Stainless steel interior and powder-coated body
  • Backlight LCD display
  • CE certified and unique serial number for tracing

Safety mechanism:

  • Overheat and over-current protection
  • Sensor error detection and leakage breaker
  • Automatic operation stop when door opens

Controller:

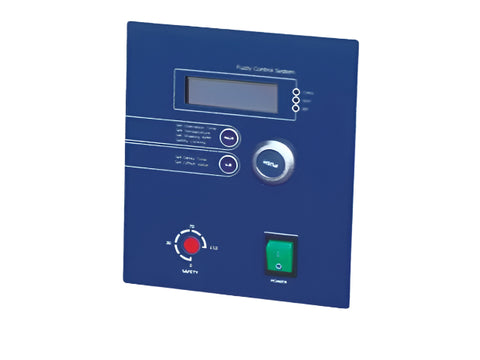

  • Digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Features

Devices with 230 V power supply can also be supplied with 120 V on request.

Technical data

Width (inner) 530 mm
Height (inner) 350 mm
Length (outer) 855 mm
Weight with packaging 147 kg
Capacity 32 pcs. flask holder for 100 ml flasks, 20 pcs. flask holder for 250 ml flasks, 16 pcs. flask holder for 500 ml flasks, 9 pcs. flask holder for 1000 ml flasks
Shaking speed 30 - 250 rpm
Power consumption 500 W
Temperature range Room temperature +5°C - 60°C
Packing size 1000 x 800 x 1100 mm
Length (inner) 530 mm
Width (Outer) 530 mm
Height (outer) 850 mm
Heating power 500 W
Shaking motion Orbital motion
Shaking stroke 25 mm
Temperature variation ±0.5°C at 37°C
Temperature accuracy ±0.2°C to 37°C
Controller Temperature sensor PT100



Comparison

SKU  Model Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Weight with packaging Heating power Capacity Compressor Refrigerant
DH.WIS00220 WIS-20 230 V 530 mm 530 mm 350 mm 530 mm 855 mm 850 mm 147 kg 500 W 32 pcs. flask holder for 100 ml flasks, 20 pcs. flask holder for 250 ml flasks, 16 pcs. flask holder for 500 ml flasks, 9 pcs. flask holder for 1000 ml flasks
DH.WIS01220 WIS-20R 230 V 530 mm 530 mm 350 mm 530 mm 855 mm 850 mm 150 kg 700 W 32 pcs. flask holder for 100 ml flasks, 20 pcs. flask holder for 250 ml flasks, 16 pcs. flask holder for 500 ml flasks, 9 pcs. flask holder for 1000 ml flasks 190 W 134A (CFC-free refrigerant)



SKU  Shaking motion Shaking speed Shaking stroke Power consumption Temperature variation Temperature range Temperature accuracy Packing size Controller
DH.WIS00220 Orbital motion 30 - 250 rpm 25 mm 500 W ±0.5°C at 37°C Room temperature +5°C - 60°C ±0.2°C to 37°C 1000 x 800 x 1100 mm Temperature sensor PT100
DH.WIS01220 Orbital motion 30 - 250 rpm 25 mm 1200 W ±0.5°C at 37°C 10°C - 60°C (refrigerated) ±0.2°C to 37°C 1000 x 800 x 1100 mm Temperature sensor PT100
