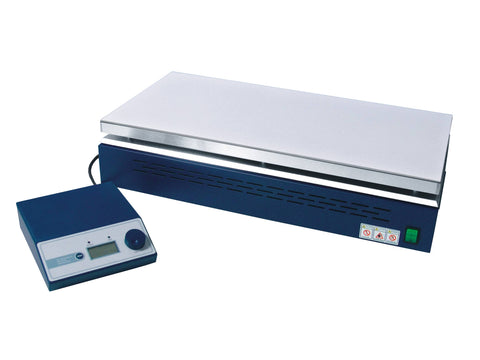

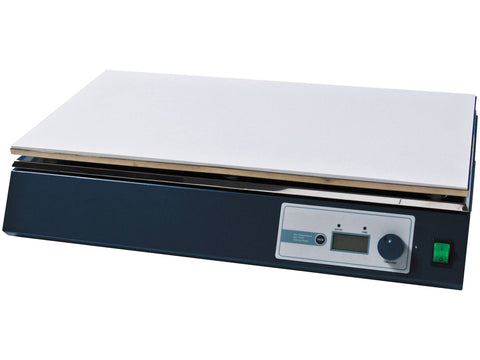

Witeg Hotplates HPLP digital big surface up to 350°C
SKU: DH.WHP03024
Witeg Hotplates HPLP digital big surface up to 350°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Sample drying and general lab heating applications where a large surface is needed
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- Up to 350°C
- Ceramic-coated aluminium plate 310x620 mm
- Heat-, chemical- and restricted acid-resistant
- Aluminium body
- CE certified and unique serial number for tracing
Safety mechanism
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Operation LEDs
Controller
- HPLP-C-P: Jog-Shuttle controller with touch-button
- HPLP-C-R: Remote controller with touch-button
Technical data
| Width (Outer) | 630 mm |
| Height (outer) | 150 mm |
| Controller | Digital |
| Weight | 16 kg |
| Heating power | 2000 W |
| Plate material | Ceramic-coated aluminium |
| Temperature range with filter | 350°C |
| Packing size | 750 x 430 x h220 mm |
| Length (outer) | 360 mm |
| Version with filter | rectangular |
| Housing material | Aluminum |
| Weight with packaging | 18 kg |
| Plate size | 310 x 620 mm |
| Temperature control resolution | Display 0.1°C, control 0.5°C |
| Temperature accuracy | ±0.3°C |
Comparison
| SKU | Model | Width (Outer) | Length (outer) | Height (outer) | Version with filter | Controller | Housing material | Weight | Weight with packaging | Heating power | Plate size | Plate material | Temperature control resolution | Temperature range with filter | Temperature accuracy | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WHP03024 | HPLP-C-P 230 V | 630 mm | 360 mm | 150 mm | rectangular | Digital | Aluminum | 16 kg | 18 kg | 2000 W | 310 x 620 mm | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 350°C | ±0.3°C | 750 x 430 x h220 mm |
| DH.WHP03025 | HPLP-C-R 230 V | 630 mm | 360 mm | 150 mm | rectangular | Digital | Aluminium | 16 kg | 18 kg | 2000 W | 310 x 620 mm | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 350°C | ±0.3°C | 750 x 430 x h220 mm |
