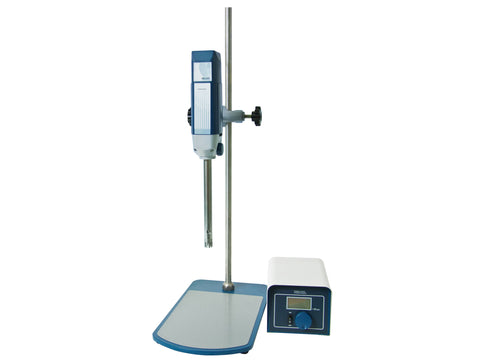

Witeg Homogenizer HG-15D, 27000 RPM, Digital External Controller
SKU: DH.WHG02018
Witeg Homogenizer HG-15D, 27000 RPM, Digital External Controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- All disperging and homogenizing applications
- Designed for liquid and tissue samples
Features:
- 2,000 - 27,000 rpm
- Working range 1 - 2,500 ml
- Digital LCD display on remote controller
- Timer from 10 sec. up to 15 min.
- CE certified and unique serial number for tracing
Safety mechanism:
- Timer-end alarm
- Locking mode
- Overload protection
- Overheat protection
Controller:
- Jog-Shuttle remote controller with touch-button
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Version |
Unit |
|
Width (Outer) |
60 mm |
|
Height (outer) |
215 mm |
|
Material |
ABS & aluminium die-casting |
|
Controller |
Digital, remote |
|
Speed |
2000 - 27000 rpm, resolution: 10 rpm |
|
Weight with packaging |
6 kg |
|
Motor rating |
Input: 300 W, output: 160 W |
|
Packing size |
580 x 340 x h230 mm |
|
Length (inner) |
Extension arm: 250 mm |
|
Length (outer) |
75 mm |
|
Diameter (outer) |
Extension arm size: Ø12.7 |
|
Ideal for |
all disperging and homogenizing applications, designed for liquid and tissue samples |
|
Moisture range |
85% RH |
|
Weight |
2,5 kg |
|
Capacity |
1 - 2500 ml |
|
Temperature range |
Ambient temperature +5 - 50°C |
Comparison
| SKU | Model | Version | Length (inner) | Width (Outer) | Length (outer) | Height (outer) | Diameter (outer) | Material | Ideal for | Controller |
| DH.WHG02018 | HG-15D unit 230 V | Unit | Extension arm: 250 mm | 60 mm | 75 mm | 215 mm | Extension arm size: Ø12.7 | ABS & aluminium die-casting | all disperging and homogenizing applications, designed for liquid and tissue samples | Digital, remote |
| DH.WHG02019 | HG-15D set A 230 V | Set A | Extension arm: 250 mm | 60 mm | 75 mm | 215 mm | Extension arm size: Ø12.7 | ABS & aluminium die-casting | all disperging and homogenizing applications, designed for liquid and tissue samples | Digital, remote |
| DH.WHG02020 | HG-15D set B 230 V | Set B | Extension arm: 250 mm | 60 mm | 75 mm | 215 mm | Extension arm size: Ø12.7 | ABS & aluminium die-casting | all disperging and homogenizing applications, designed for liquid and tissue samples | Digital, remote |
| SKU | Moisture range | Speed | Weight | Weight with packaging | Capacity | Motor rating | Temperature range | Packing size |
| DH.WHG02018 | 85% RH | 2000 - 27000 rpm, resolution: 10 rpm | 2,5 kg | 6 kg | 1 - 2500 ml | Input: 300 W, output: 160 W | Ambient temperature +5 - 50°C | 580 x 340 x h230 mm |
| DH.WHG02019 | 85% RH | 2000 - 27000 rpm, resolution: 10 rpm | 2,5 kg | 6 kg | 1 - 2500 ml | Input: 300 W, output: 160 W | Ambient temperature +5 - 50°C | 580 x 340 x h230 mm |
| DH.WHG02020 | 85% RH | 2000 - 27000 rpm, resolution: 10 rpm | 2.5 kg | 6 kg | 1 - 2500 ml | Input: 300 W, output: 160 W | Ambient temperature +5 - 50°C | 580 x 340 x h230 mm |
