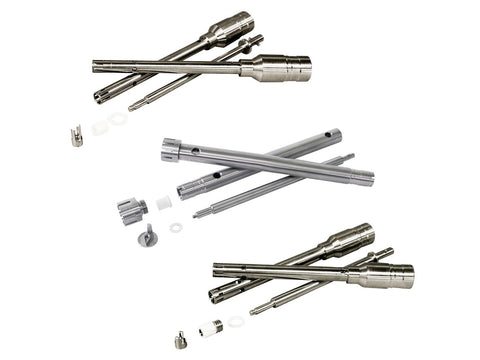

Witeg Homogenizer Disperging Tools

Witeg Homogenizer Disperging Tools

SKU: 5 553 800

  • $ 27895
  • Save $ 3400

Request a Quote

Witeg Homogenizer Disperging Tools

Buy Witeg products from MSE Supplies at the best value.

Technical data

Version Suspension: 10-50 μm, emulsion: 1-10 μm
Material Stainless steel, bearing material: PTFE
Distance 0.25 mm
Speed 27000 rpm
Rotor Ø6 mm
Temperature range max. 180°C
Length (outer) 138 mm
Ideal for Homogenizer HG-15D & HG-15A, suitable for solvent
Immersion depth Min. 35 mm, max. 70 mm
Capacity 1 - 50 ml
Stator  Ø8 mm



Comparison

SKU Model Version Length (outer) Height (outer) Material Ideal for Distance
5 553 800 Tissue grinder Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 120 mm Borosilicate glass Homogenizer HS-30E 0.15 - 0.25 mm
5 553 801 Tissue grinder Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 135 mm Borosilicate glass Homogenizer HS-30E 0.15 - 0.25 mm
5 553 802 Tissue grinder Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 150 mm Borosilicate glass Homogenizer HS-30E 0.15 - 0.25 mm
5 553 803 Tissue grinder Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 155 mm Borosilicate glass Homogenizer HS-30E 0.15 - 0.25 mm
5 553 804 Tissue grinder Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 175 mm Borosilicate glass Homogenizer HS-30E 0.15 - 0.25 mm
5 553 805 Tissue grinder Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 195 mm Borosilicate glass Homogenizer HS-30E 0.15 - 0.25 mm
5 553 850 Pestle Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 230 mm PTFE head, serrated stainless steel shaft Homogenizer HS-30E 0.25 mm
5 553 851 Pestle Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 235 mm PTFE head, serrated stainless steel shaft Homogenizer HS-30E 0.25 mm
5 553 852 Pestle Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 270 mm PTFE head, serrated stainless steel shaft Homogenizer HS-30E 0.25 mm
5 553 854 Pestle Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 270 mm PTFE head, serrated stainless steel shaft Homogenizer HS-30E 0.25 mm
5 553 855 Pestle Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm 270 mm PTFE head, serrated stainless steel shaft Homogenizer HS-30E 0.25 mm
DH.WHG02108 HT1008 Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm Stainless steel, bearing material: PTFE Homogenizer HG-15D & HG-15A, suitable for solvent 0.25 mm
DH.WHG02110 HT1010 Suspension: 10-50 μm, emulsion: 1-10 μm 138 mm Stainless steel, bearing material: PTFE Homogenizer HG-15D & HG-15A, suitable for solvent 0.2 mm
DH.WHG02118 HT1018 Suspension: 10-50 μm, emulsion: 1-10 μm 225 mm Stainless steel, bearing material: PTFE Homogenizer HG-15D & HG-15A, suitable for solvent 0.25 mm
DH.WHG02125 HT1025 Suspension: 10-50 μm, emulsion: 1-10 μm 225 mm Stainless steel, bearing material: PTFE Homogenizer HG-15D & HG-15A, suitable for solvent 0.35 mm



SKU Immersion depth Speed Capacity Effective space Rotor Stator Temperature range
5 553 800 Min. 35 mm, max. 70 mm 27000 rpm 2 ml Working Ø8 mm Ø6 mm Ø8 mm max. 180°C
5 553 801 Min. 35 mm, max. 70 mm 27000 rpm 5 ml Working Ø12 mm Ø6 mm Ø8 mm max. 180°C
5 553 802 Min. 35 mm, max. 70 mm 27000 rpm 10 ml Working Ø15 mm Ø6 mm Ø8 mm max. 180°C
5 553 803 Min. 35 mm, max. 70 mm 27000 rpm 15 ml Working Ø19 mm Ø6 mm Ø8 mm max. 180°C
5 553 804 Min. 35 mm, max. 70 mm 27000 rpm 30 ml Working Ø25 mm Ø6 mm Ø8 mm max. 180°C
5 553 805 Min. 35 mm, max. 70 mm 27000 rpm 50 ml Working Ø32 mm Ø6 mm Ø8 mm max. 180°C
5 553 850 Min. 35 mm, max. 70 mm 27000 rpm 2 ml Ø6 mm Ø8 mm max. 180°C
5 553 851 Min. 35 mm, max. 70 mm 27000 rpm 5 ml Ø6 mm Ø8 mm max. 180°C
5 553 852 Min. 35 mm, max. 70 mm 27000 rpm 10 ml Ø6 mm Ø8 mm max. 180°C
5 553 854 Min. 35 mm, max. 70 mm 27000 rpm 30 ml Ø6 mm Ø8 mm max. 180°C
5 553 855 Min. 35 mm, max. 70 mm 27000 rpm 50 ml Ø6 mm Ø8 mm max. 180°C
DH.WHG02108 Min. 35 mm, max. 70 mm 27000 rpm 1 - 50 ml Ø6 mm Ø8 mm max. 180°C
DH.WHG02110 Min. 35 mm, max. 70 mm 27000 rpm 1 - 100 ml Ø7.96 mm Ø10 mm max. 180°C
DH.WHG02118 Min. 60 mm, max. 130 mm 20000 rpm 10 - 1000 ml Ø12.8 mm Ø18 mm max. 180°C
DH.WHG02125 Min. 60 mm, max. 130 mm 15000 rpm 50 - 2500 ml Ø20 mm Ø25 mm max. 180°C
