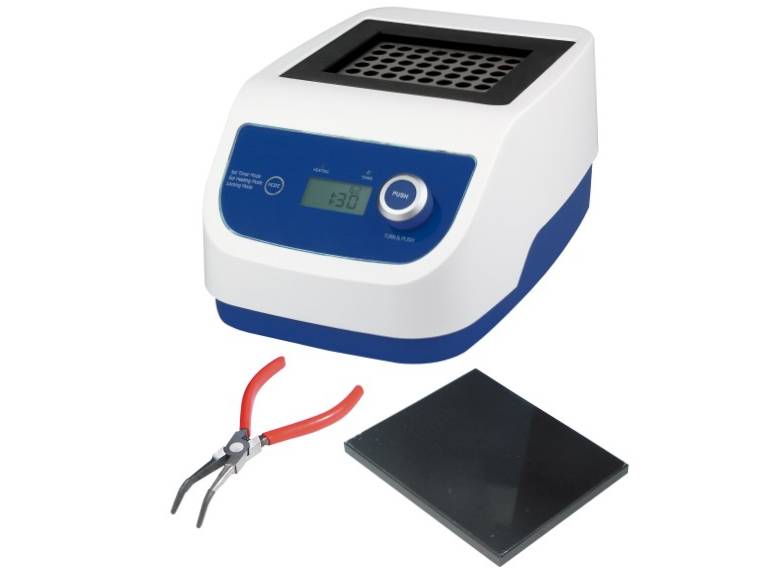

Witeg Dry Bath HB-48 One Block, Up to 150°C
SKU: DH.WHB00348
Witeg Dry Bath HB-48 One Block, Up to 150°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Enzyme reactions, inactivation of sera, incubation and other laboratory procedures
- multifunctional dry block heater
Features:
- User‘s self-compensation function to offset between real temperature and indicated temperature (±10.0°C)
- Ergonomic design and modular block
- Interchangeable block (90 x 120 x 60 mm) for various tubes
- Molded heater (300W) for temperature accuracy
- Internal PPS bath ensures best insulation, block made of anodized aluminium
- Precise temperature control
- Digital timer function – delay time and operation control
- Block extraction tongs “BLE101” & block cover are included
- Storage function for the set values of temperature and timer
- Various kinds of blocks are offered (optional)
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism:
- Locking mode
- Overheat and over-current protection
- Sensor error detection
Controller:
- Digital fuzzy controller with Jog-Dial and main touch button
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Version |
- |
|
Length (inner) |
120 mm |
|
Width (Outer) |
210 mm |
|
Height (outer) |
144 mm |
|
Power consumption |
300 W |
|
Temperature accuracy |
±0.1 at 37°C, ±0.2°C at 90°C, ±0.4°C at 135°C |
|
Controller |
Temperature sensor PT100 |
|
Width (inner) |
90 mm |
|
Height (inner) |
60 mm |
|
Length (outer) |
309 mm |
|
Heating time |
approx. 5°C/min |
|
Temperature range |
ambient to +5°C to 150°C |
|
Packing size |
400 x 270 x 200 mm |
Comparison
| SKU | Model | Version | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) |
| DH.WHB00348 | HB-48 Unit 230V | - | 90 mm | 120 mm | 60 mm | 210 mm | 309 mm | 144 mm |
| DH.WHB00349 | HB-48 Set 230V | 48 holes for 1.5/2 ml centrifuge tubes | 90 mm | 120 mm | 60 mm | 210 mm | 309 mm | 144 mm |
| SKU | Heating time | Power consumption | Temperature range | Temperature accuracy | Packing size | Controller |
| DH.WHB00348 | approx. 5°C/min | 300 W | ambient to +5°C to 150°C | ±0.1 at 37°C, ±0.2°C at 90°C, ±0.4°C at 135°C | 400 x 270 x 200 mm | Temperature sensor PT100 |
| DH.WHB00349 | approx. 5°C/min | 300 W | ambient to +5°C to 150°C | ±0.1 at 37°C, ±0.2°C at 90°C, ±0.4°C at 135°C | 400 x 270 x 200 mm | Temperature sensor PT100 |
