Welch 6.9 CFM 2071 ChemStar Dry Vacuum Pump - MSE Supplies LLC

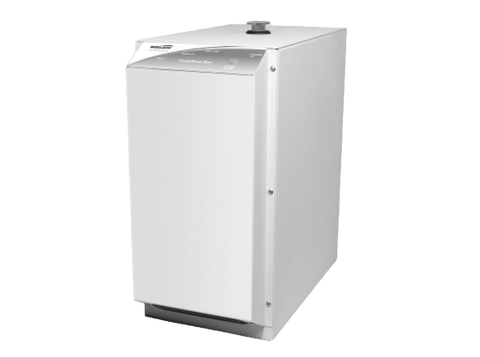

Welch 6.9 CFM 2070 ChemStar Dry Vacuum Pump

  • $ 9,73500
  • Save $ 32500


Buy Welch vacuum pumps from MSE Supplies at the best value.

With the revolutionary oil free ChemStar Dry vacuum system, you get the advantages of two combined technologies: roots blower and diaphragm vacuum pump. The result is an oil-free, software-driven vacuum system, ready to work on your tough chemical applications.

ChemStar® Dry was developed for laboratory operations which require high pumping speed and deep vacuum, such as vacuum manifolds (Schlenk line), freeze dryer, vacuum oven and glove boxes. The system combines a proprietary vacuum blower with patented PTFE diaphragm technology to pump quickly down (150 l/min) to the working range for most evaporative operations (2.0 to 0.1 mbar) with an ultimate pressure of 10-2 mbar.

Product Benefits

  • Deep Vacuum
  • Chemical Resistant
  • Plug & Play
  • Oil Free

Applications

  • Schlenk Line
  • Freeze Dryer
  • Vacuum Oven
  • Glove Boxes
  • Concentrator

MSE Supplies is an authorized distributor of Welch vacuum pumps.

Technical Data

SKU# VP0041
Free Air Displacement @60Hz 115V, CFM (L/min) 6.9 (196)
Ult. Vac. Pressure, Torr / (mbar) 5x10-2 / (7x10-2)
Inlet / Outlet Connection NW
25
Sound Level (dB)
57
Weight, lbs. (kg) 50.7 (23)
