Spiral wire electrode - 50SP17 0.6/191 mm

  • $ 32100
  • Save $ -6100

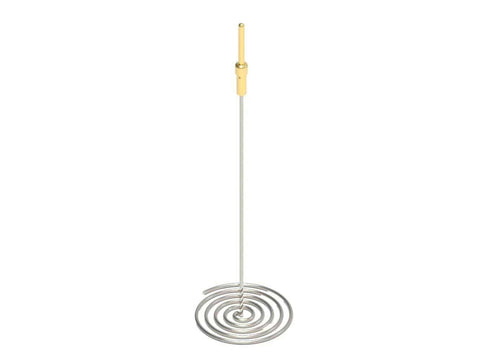

This Spiral Wire Electrode is intended to be used with The Small and The Standard Etch Cell as a counter electrode.

Application note:
The wire electrode is immersed in the solution as a counter electrode. An electric current is passed between the working electrode and the wire electrode for a certain amount of time. After the process, the electrode should be washed several times with ethanol and dried under the nitrogen flow.

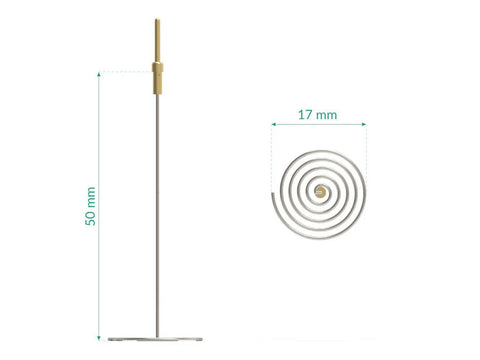

Specification:
spiral inner diameter: 1 mm
spiral outer diameter: 17 mm
number of turns: 5
wire diameter: 0.6 mm
turn spacing: 1 mm
total length of wire: 191 mm (141 mm long spiral, 50 mm long straight wire)

Product includes:
1 x Spiral Wire Electrode - 50SP17 0.6/191 mm
