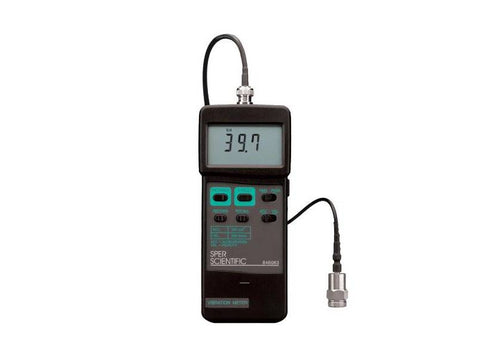

Sper Scientific Portable Handheld Vibration Meter
SKU: SP840063
Sper Scientific Portable Handheld Vibration Meter
Buy Sper Direct products from MSE Supplies at the best value.
Vendor may be running site-wide discounts, but still inquire with MSE for the best price.
Accurately measures vibration velocity and acceleration.
The level of vibration is a useful guide to the balance, alignment and general condition of pumps, motors, and other machinery. Poor balance, misalignment, and looseness results in higher levels of vibration and indicates maintenance is required for operational as well as safety reasons.

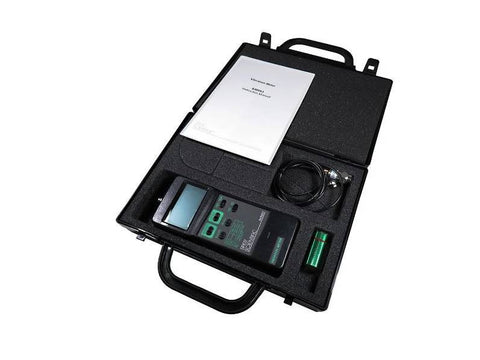

The large display indicates RMS, Peak, min/max, hold, low battery, and features an auto power off. Comes ready to use in a foam-lined, hard-shell carrying case, with a detachable strongly magnetic probe, 9V battery and instructions.
Specification:
| Acceleration | Range | Resolution | Accuracy (@ 160 Hz, 80 Hz, 23 ± 5°C) |
|---|---|---|---|
| m/s² | 0.5 to 199.9 m/s² | 0.1 m/s² | ±(5 % +2 d) reading |
| g @ 1 g=9.8m/s² | 0.05 to 20.39 g | 0.01 g | ±(5 % +2 d) reading |
| ft/s² | 2 to 656 ft/s² | 1 ft/s² | ±(5 % +2 d) reading |
| Velocity | |||
| mm/s | 0.5 to 199.99 mm/s | 0.1 mm/s | ±(5 % +2 d) reading |
| Frequency | |||
| Hz | 10Hz to 1KHz | ||
