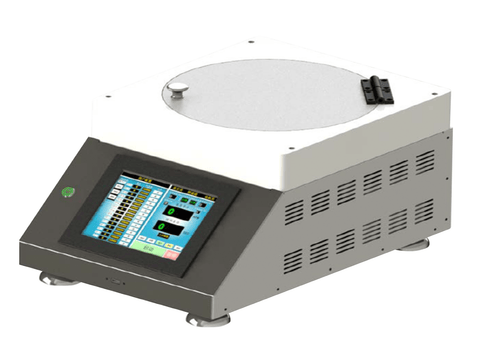

SETCAS Glove Box Compatible High-Speed Spin Coater (Max. 4" Dia., 12,000 rpm) with Heating, Temperature and Remote Control, Vacuum Pump & 1/2/4 Inch Vacuum Chucks
SKU: BR0233
Product details:
MSE Supplies launched a glove box compatible high-speed spin coater (BR0233), which is designed for precise and uniform deposition of oxygen and moisture sensitive thin films. It can be heated up to 200℃, which enables fast drying and deposition of temperature sensitive thin film. The spin coater can be placed in glovebox and controlled outside of glovebox through wireless connection. Its rugged, vibration-free and portable design makes it a versatile tool for any high-quality research facility. It is widely used by our customer to deposit metal oxide thin films, polymer coatings and metal organic thin films.
Three standard vacuum chucks (1", 2" and 4") and a pump are complimentary offered by MSE Supplies. Please contact us if you need other sized vacuum chucks.

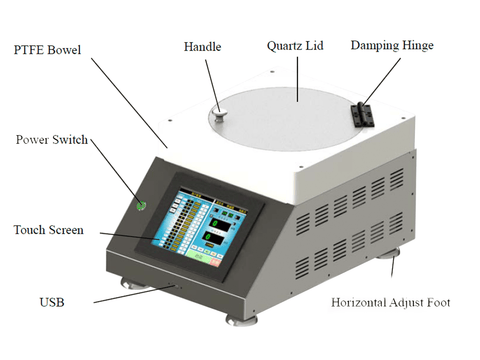

This machine is equipped with maximum support for 8 inches, maximum speed of 12,000, touch screen with program control, PTFE inner cavity, integrated heating and temperature control function, remote control function.
The product figure is for reference only. The actual product may look different based on the product configuration.
Specifications:
| SKU# | BR0233 |
| Power | AC 100-250V, single phase |
| Substrate Size | 5-200mm |
| Spin Speed | 1-12,000rpm |
| Spin Coating Uniformity | ±1% |
| Pumping Speed | ≥60L/min |
| Heating Range | Room temperature to 200℃ |
| Set Time Range | 0-10000min |
| Motor Speed Stability | ±0.1% |
| Speed Accuracy | ±1rpm |
| Rotation Direction | Clockwise and counterclockwise |
| Operation Interface | 8 inch touch screen |
| Remote Control | Wireless mouse and keyboard outside of glovebox |
| Dimensions | 210x220x160mm |
| Weight | 27kg including the pump |
| Warranty | Limited 1 year warranty. Lifetime technical support. |
