Sciospec Electrical Impedance Tomography (EIT) Phantom Tanks

SKU: EIT16-PT1

  • $ 58800
  • Save $ 1200


Sciospec Electrical Impedance Tomography (EIT) Phantom Tanks

Available for the Sciospec Electrical Impedance Tomography (EIT) models are Phantom Tanks to evaluate, analyze, and fine-tune the EIT systems.

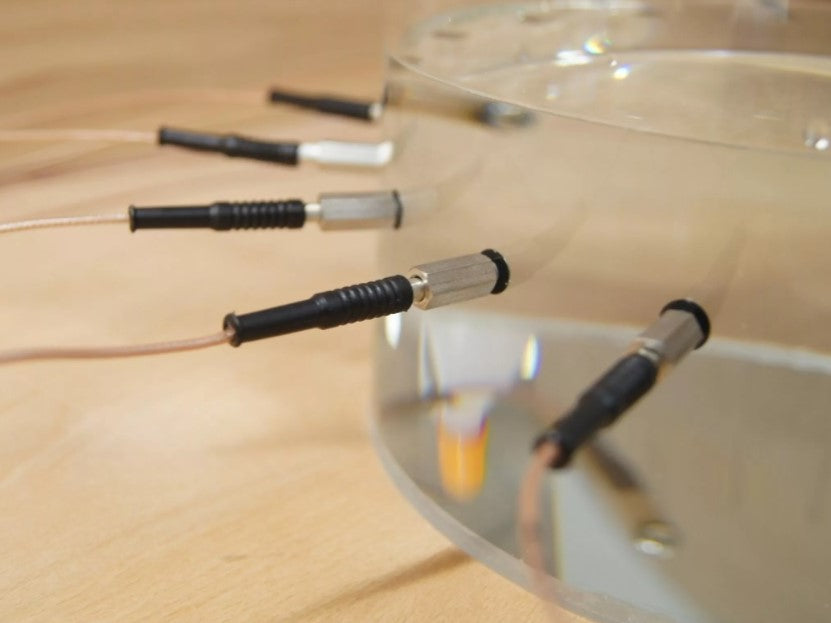

  • EIT16 Phantom Tanks (16 electrodes evenly distributed in one row or 16x2 with two rows of 16 electrodes evenly distributed)

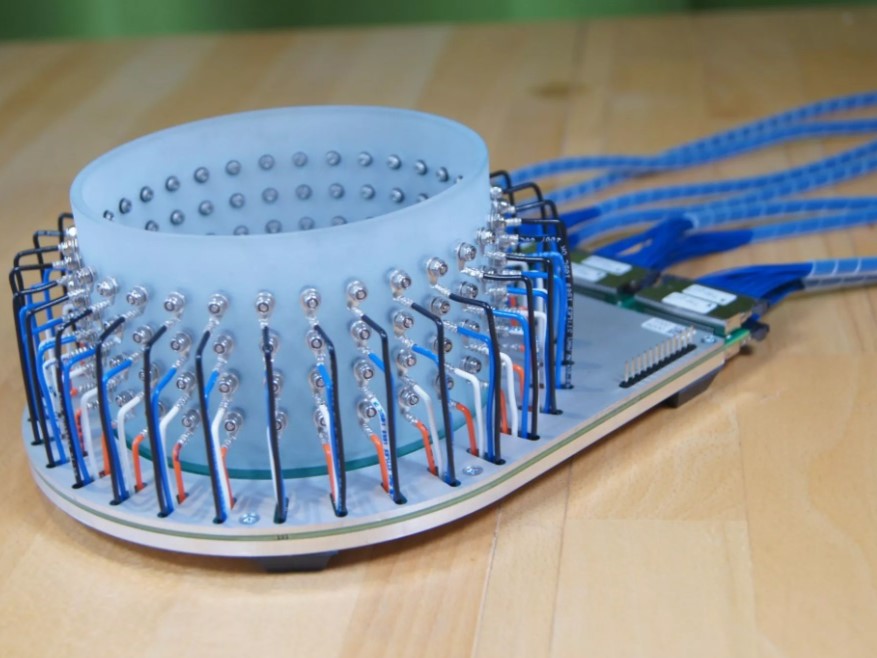

  • EIT32 Phantom Tanks (32 electrodes evenly distributed in one row or 32x2 with two rows of 32 electrodes evenly distributed)
  • Customized Phantom Tanks at your request.



      Specifications

      EIT16 Phantom Tank EIT16 Phantom Tank (16x2)
      Diameter (External) 20cm 20cm
      Height (External) 15cm 15cm
      Material Acrylic Glass Acrylic Glass
      Electrodes 16 electrodes on one level, evenly distributed Two rows, 16 electrodes on one level, evenly distributed
      Stainless steel A2 Stainless steel A2
      Banana Jack Material Stainless steel Stainless steel
      DIN EN 10088-3 DIN EN 10088-3
      EN steel name: 1.4305 EN steel name: 1.4305
      **EIT32 Phantom Tank consists of one ring of 32 electrodes evenly distributed. 32x2 will consist of 2 rows evenly distributed
      **Custom EIT phantom tanks with alternative electrode configurations (number of electrodes,
      multiple rows) and diameters/heights are available on request.



      Sciospec is certified in accordance with ISO 9001 and ISO 13485.
