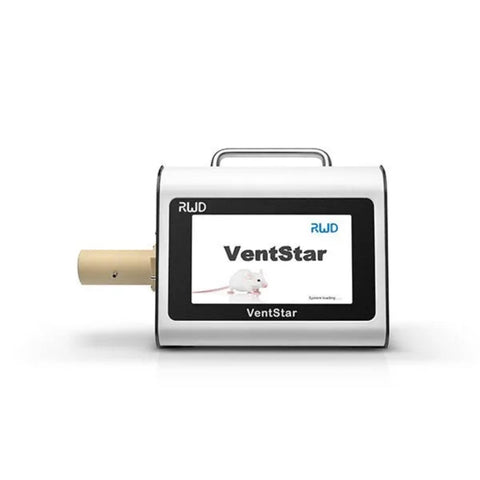

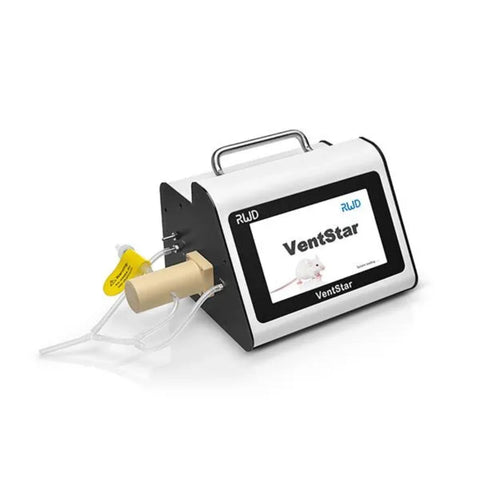

RWD Small Animal Ventilator
SKU: R415
RWD Small Animal Ventilator
Description
R415 is a mechanical ventilator used to assist animal respiration, suitable for mice, rats, and guinea pigs, and other animals weighing 10g-1kg.
It is widely used in basic medical research, clinical medicine, animal medicine and other scientific research experiments (such as myocardial ischemia model making, lung function evaluation).
Features
- Suitable for mice to guinea pigs range from 10g to 1kg.
- Convenient for the setting of animal ventilator data by inputting animal weight.
- Built-in VCV and PIPCV working mode.
- Real-time graphical display of tracheal pressure.
- Touch Screen with a 75-degree visual surface design for easy operation.
- Provide safe and effective intermittent positive pressure ventilation (IPPV), volume and pressure modes are available.
- Sound, intelligent text, error code and other fault alarm alerts
Specifications
|
Suggested Weight Range |
10g～1kg |
|
Species |
Mouse/Rat～Guinea Pig |
|
Tidal Volume Range (TV) |
0.05ml～5ml Resolution: 0.001ml |
|
Peak Inspiratory Pressure (PIP) |
1～50cmH2O Resolution: 1 cmH2O |
|
PEEP |
0～10 cmH2O Resolution: 1 cmH2O |
|
Breath Rate (bpm) |
10～300 bpm |
|
I:E Ratio |
20～80% |
|
Sigh Breath |
Frequency: Every 10～999 or Manual |
|
Display |
7’’ LCD touchscreen, resistive |
|
Remote Communication |
RS-485 |
|
Power Supply |
100～240VAC, 50/60Hz |
|
Input Power |
24V DC, adaptor: 40W Max |
|
Safety Alarms |
Over-/Under-pressure, occlusion, high PEEP |
|
Dimensions |
320*210*180mm |
|
Weight |
5.1kg |
|
Operating Temperature |
4℃～40℃ (40°F～104°F) |
|
Operating Humidity |
20～80%, non-condensing |
|
Storage Temperature & Humidity |
-10℃～70℃ (14°F～158°F), 20%～80% RH, non-condensing |
|
Cat No. |
Product Description |
|
R415 |
Small Animal Ventilator |
