RWD Fluorescence Filter Module

RWD Fluorescence Filter Module

Available Variants: FL CUBE 1 (DAPI), FL CUBE 2 (AO/GFP), FL CUBE 3 (PI)

Product image is just for the representation only. Actual product may look different.

Enhance the capabilities of your RWD Advanced Automated Cell Counter with dedicated fluorescence filter modules designed for accurate viability, transfection, and fluorescence-based cell analysis. Each filter cube is optimized for specific fluorophores, allowing researchers to perform rapid fluorescent cell counting and characterization with high sensitivity and reproducibility.

Key Features

• Optimized fluorescence detection for common cellular dyes and markers
• Quick installation and seamless integration with the RWD Advanced Automated Cell Counter
• High-quality optical filters for reliable signal capture and reduced background interference
• Ideal for viability assessment, transfection efficiency studies, stem cell research, oncology, and immunology applications
• Designed for routine research and laboratory workflows

Available Variants

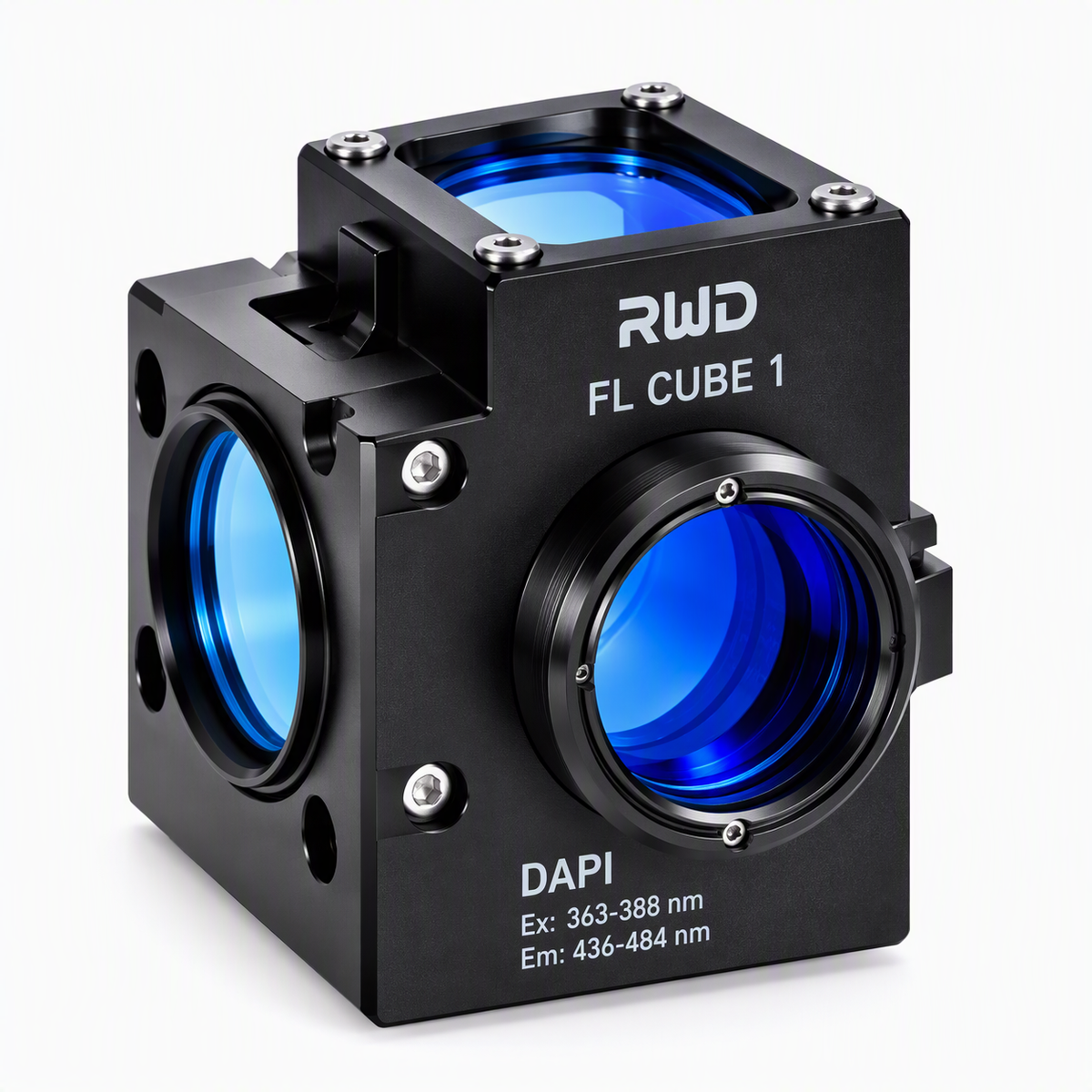

FL CUBE 1 - DAPI Channel

Excitation: 363-388 nm
Emission: 436-484 nm

Designed for DAPI-stained samples and nuclear visualization. Ideal for cell counting applications requiring fluorescent nuclear staining and viability assessment.

Common Applications

• Nuclei staining with DAPI
• Cell viability analysis
• Cell cycle and nuclear evaluation
• Fluorescence-based cell counting

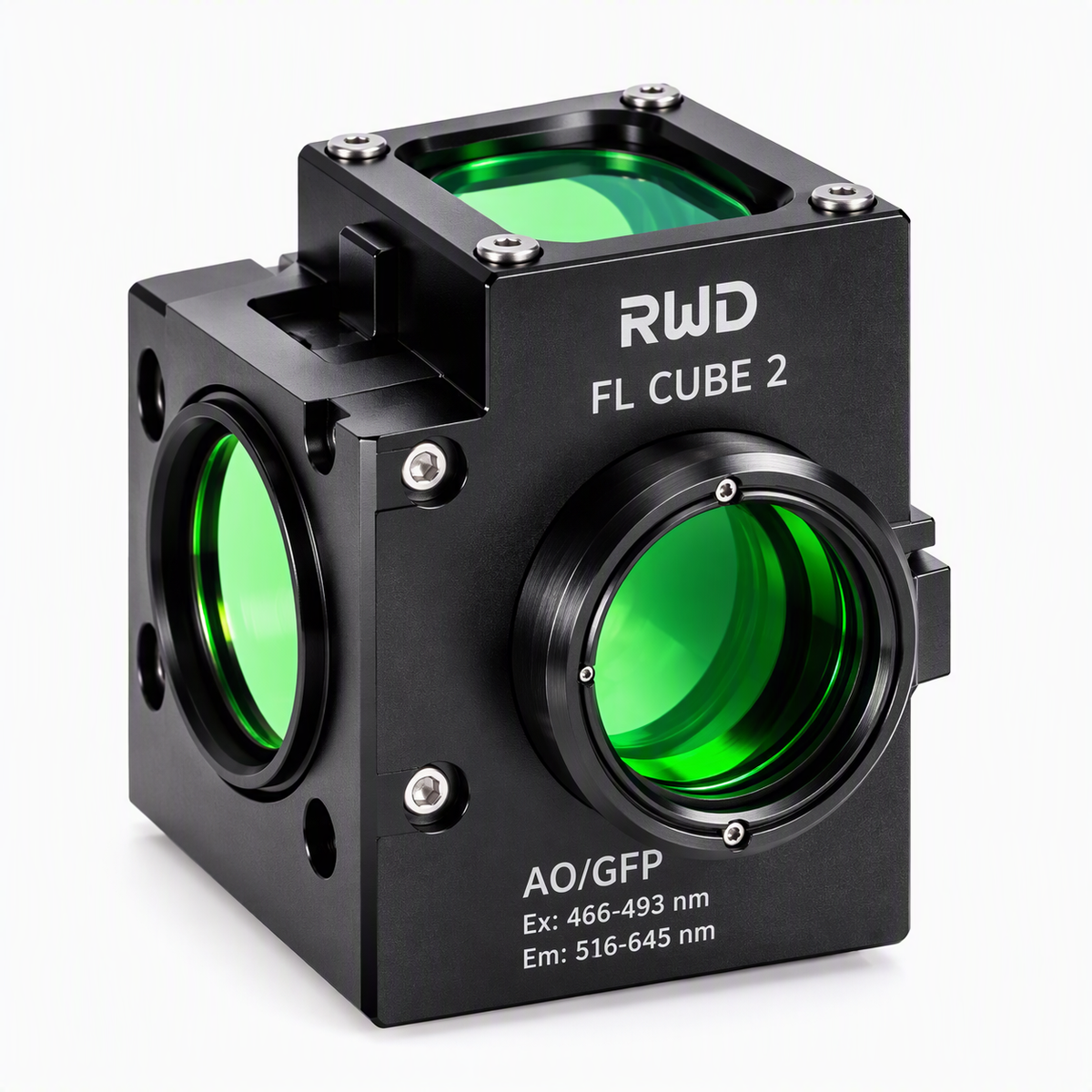

FL CUBE 2 - AO/GFP Channel

Excitation: 466-493 nm
Emission: 516-645 nm

Optimized for Acridine Orange (AO) and Green Fluorescent Protein (GFP) detection, enabling live/dead cell analysis and fluorescent protein-based experiments.

Common Applications

• AO-based viability assays
• GFP-expressing cell analysis
• Cell transfection studies
• Stem cell and culture monitoring

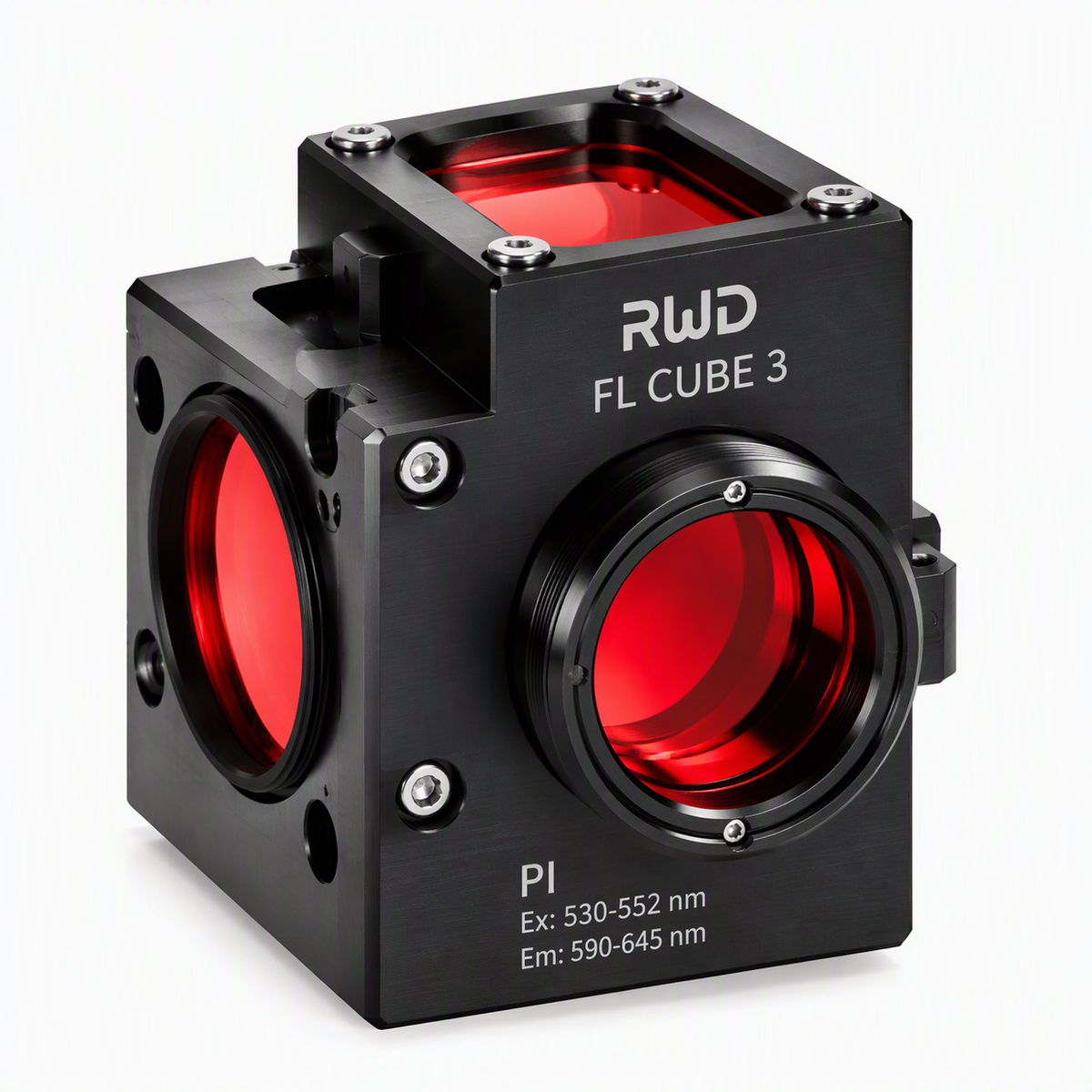

FL CUBE 3 - PI Channel

Excitation: 530-552 nm
Emission: 590-645 nm

Designed for Propidium Iodide (PI) fluorescence detection, commonly used to identify dead or membrane-compromised cells.

Common Applications

• Live/dead discrimination
• Cell viability assessment
• Apoptosis and cytotoxicity studies
• Quality control of cell preparations

Technical Specifications
